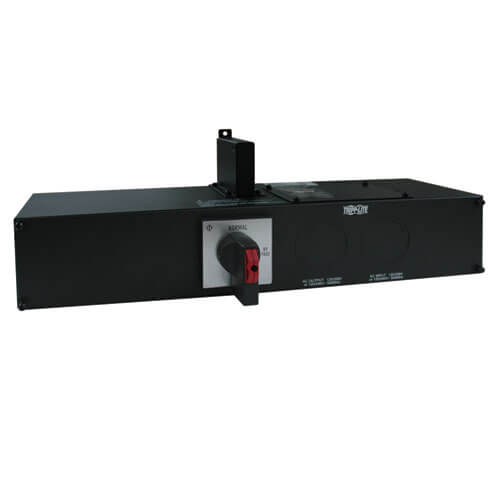

Tripp-Lite SUPDMB568HW | SUPDMB568HW - UPS Accessory - Hardwire PDU Module
Features
- Converts compatible SmartOnline Hot-Swappable Modular UPS Systems (models SU5000RT4U, SU6000RT4U, and SU8000RT4U) to a totally hardwired solution
- Easy quick-connect terminal block allows installation of hardwire distribution module in minutes
- Can accept input voltages of 120/208 or 120/240 VAC split-phase power
- Detachable hardwire module with manual bypass switch allows for effortless UPS maintenance without the need to power down connected loads and re-wire input/output connections
Specifications
Specifications
Highlights
- Converts compatible SmartOnline Hot-Swappable Modular UPS systems to hardwire input and output
- For use with input voltages of 120/208 or 120/240 VAC split-phase power
- Convenient quick-disconnect terminal block allows installation in minutes
- Manual bypass switch eliminates equipment downtime
System Requirements
- Use with SU5000RT4U, SU6000RT4U, and SU8000RT4U split-phase SmartOnline Hot-Swappable Modular UPS Systems
Overview
| UPC Code | 37332144072.0 |
|---|
Input
| Nominal Input Voltage(s) Supported | 100V AC; 110V AC; 115V AC; 120V AC; 127V AC; 140V AC |
|---|---|
| Input Connection Type | Split-phase hardwire (4-wire) |
| Voltage Compatibility (VAC) | 100-140 |
Output
| Frequency Compatibility | 50 / 60 Hz |
|---|---|
| Output Receptacles | Hardwire |
| Output Nominal Voltage | 120/208, 120/240 |
Physical
| Material of Construction | Steel |
|---|---|
| Shipping Dimensions (hwd / in.) | 8.90 x 9.40 x 19.50 |
| Shipping Weight (lbs.) | 8.80 |
| Unit Dimensions (hwd / in.) | 6 x 17.5 x 6.75 |
| Unit Weight (lbs.) | 11.7 |
Standards & Compliance
| Certifications | Tested to UL1778 (USA), CSA (Canada), RoHS compliant |
|---|
Warranty
| Product Warranty Period (Worldwide) | 2-year limited warranty |
|---|
