Brand: Tripp-Lite
|
SKU:
381604

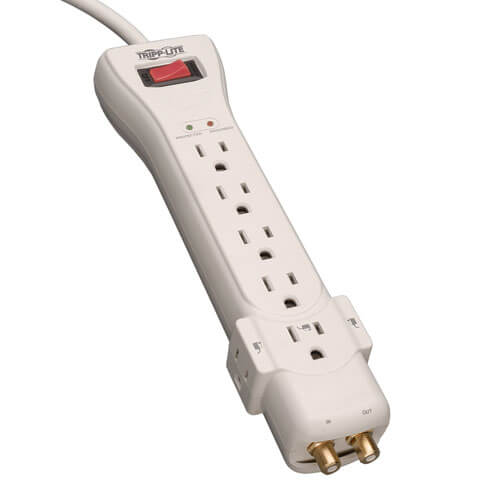

Tripp-Lite SUPER7COAX | Protect It! 7-Outlet Surge Protector, 7 ft. (2.13 m) Cord, 2160 Joules, Coaxial Protection
Regular price
$23.49
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite SUPER7COAX | Protect It! 7-Outlet Surge Protector, 7 ft....
Regular price
$23.49
Unit price
Description
Description
Tripp-Lite SUPER7COAX | Protect It! 7-Outlet Surge Protector, 7 ft. (2.13 m) Cord, 2160 Joules, Coaxial Protection
Features
- 7 outlets
- 7-ft. (2.13 m) cord with space-saving right-angle plug
- Surge suppression rating: 2160 joules
- 1 set of 2.2 GHz gold coaxial jacks
- EMI/RFI noise filtering
- Can accommodate up to 3 transformers without blocking remaining outlets
- $75,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) covers connected equipment
- Diagnostic LEDs indicate protection present & ground present
- Keyhole supports for wall mounting
- Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required
Special Features
| Rotatable Outlets | No |
|---|
Specifications
Specifications
Highlights
- 7 outlets/7-ft. (2.13 m) cord
- 2160 joule rating
- 2.2 GHz gold coaxial surge protection
Package Includes
- Super7Coax Surge Suppressor
- 6-ft. (1.83 m) gold coax cable
- Warranty information with instruction manual
Overview
| UPC Code | 37332010902.0 |
|---|
Input
| Nominal Input Voltage(s) Supported | 120V AC |
|---|---|
| Recommended Electrical Service | 120V (110-125V) |
| Input Cord Gauge Type | 14 gauge; SJT |
| Voltage Compatibility (VAC) | 120 |
| Maximum Surge Amps | 144000 |
| Input Plug Type | NEMA 5-15P |
Output
| Frequency Compatibility | 50 / 60 Hz |
|---|---|
| Output (Watts) | 1800 |
| Output Receptacles | (7) 5-15R |
| Circuit Breaker (amps) | 15 |
| Transformer Accommodation | (4) Yes |
| Outlet Orientation | Single row of 5, plus 2 side mounted outlets |
| Right-Angle Outlets | No |
User Interface, Alerts & Controls
| Diagnostic LED(s) | Yes |
|---|---|
| Switches | Two position on/off power switch |
| Diagnostic LED Details | Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status |
Surge / Noise Suppression
| AC Suppression Joule Rating | 2160 |
|---|---|
| AC Suppression Response Time | < 1 ns |
Dataline Surge Suppression
| Telephone/DSL Protection | No |
|---|---|
| Cable (Coax) Protection | Yes |
| Cable (Coax) Protection Details | 1 line |
Physical
| Antimicrobial Coating | No |
|---|---|
| Power Cord Color | Light Gray |
| Housing Color | Light Gray |
| Integrated Keyhole Mounting Slots | Yes |
| Keyhole Slot Mounting Measurement (Center to Center) | Distance Between Slots = 78mm; Distance Between Slot Height = 24mm |
| Material of Construction | Plastic |
| Outlets Measurement (Center to Center) | Between Standard Outlets = 29mm; Between Transformer Outlets = 48mm |
| Receptacle Color | Light gray |
Standards & Compliance
| Canada | cUL |
|---|---|
| Approvals | Exceeds IEEE 587 category A&B specifications |
| UL1449 3rd Edition (AC Suppression) | UL1449 3RD EDITION |
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|---|
| Connected Equipment Insurance (U.S.; Canada & Puerto Rico) | $75,000 Ultimate Lifetime Insurance |
