Brand: Tripp-Lite | SKU: 9810690

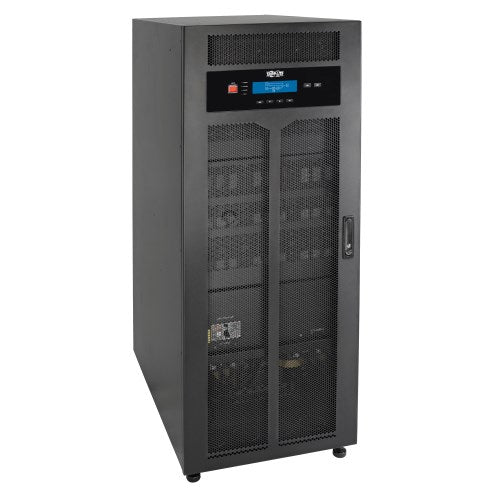

Tripp-Lite SUT20K | SmartOnline SUT Series 3-Phase 208/120V 220/127V 20kVA 20kW On-Line Double-Conversion UPS, Tower, Extended Run, SNMP Option

$19,940.87

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

3-phase UPS system protects mission-critical network equipment against downtime and data loss in data center, telecom, medical, manufacturing and financial environments.

Features

VFI True On-Line Double-Conversion 3-Phase UPS System
Provides fully regulated sine wave AC output for critical data center, telecom, computer network, light industrial and financial applications
+/-1% output voltage regulation in online and battery modes
High 1.0 unity power factor with 20kVA/20kW output capacity offers higher capacity than competing 0.8 and 0.9 PF designs
Supports 208/120V or 220/127V at 50/60 Hz
Wide input voltage window (125–253V) minimizes battery use and prolongs battery life
Reliable Battery Backup with Expandable Runtime
Supports half load for 15.4 min. and full load for 5.2 min. with standard internal batteries
Optional BP288VEBP external battery packs provide additional runtime
Sine wave output with zero transfer time compatible with all equipment types
IGBT Inverter Technology
Produces output power with <2% THD to keep connected equipment functioning at its peak
Low <4% full load THDi input rating and advanced IGBT rectifier enables 1:1 generator sizing, eliminating costly oversizing requirements for generators, breakers and cables
Paralleling Capability
Connect up to 4 units in parallel configuration for N+N fault tolerant redundancy or increased power capacity up to 80kVA
Automatic Bypass
Maintains output power to connected equipment during a variety of potential UPS fault conditions
Economy Mode
Increases operating efficiency levels as high as 98% when input line conditions are favorable
Remote Management Card Options
Compatible with Tripp Lite UPS card accessories, such as WEBCARDLX, that enable comprehensive monitoring and control over a network
Communications Ports
DB9 (RS-232) port enables data-saving unattended shutdown when used with PowerAlert software (free download at www.tripplite.com/poweralert)
EPO port supports Emergency Power Off shutdown
Standard Compliance
Tested to UL 1778 5th Edition, CSA C22.2 No. 107.3, NOM, FCC Part 15 Class A (EMC), GB17626-2/IEC 61000-4-2 (Electrostatic Discharge) Level 4, GB17626-3 (Radio-Frequency Electromagnetic Fields) Level 3, GB17626-4 (Fast Transient/Burst) Level 4, GB17626-5/IEC 61000-4-5 (Surge) Level 4 and RoHS

Specifications

Overview

UPC Code	37332186690
UPS Type	On-Line

Input

Rated input current (Maximum Load)	67.5A (120/208V); 63.5A (120/208V)
Nominal Input Voltage(s) Supported	120/208V 3-PH Wye; 127/220V 3-PH Wye
Nominal Input Voltage Description	3-Phase Wye, 4 wire (L1, L2, L3, N, G)
UPS Input Connection Type	Hardwire
Input Circuit Breakers	75A 3 pole 240V breaker
Input Phase	3-Phase

Output

Output Volt Amp Capacity (VA)	20000
Output kVA Capacity (kVA)	20
Output Watt Capacity (Watts)	20000
Output kW Capacity (kW)	20
Output Capacity Details	Supports parallel connection of up to 4 SUT20K systems for 80kVA max capacity or N+N fault tolerance redundancy; Supports up to 100% load continuously, 125% load for up to 10 minutes, 149% load for up to 1 minute and over 150% load for up to 0.5 seconds before transferring to bypass mode; Automatic inverter restart is available when the load level recovers to 95% or less after overload-related transfer to bypass
Power Factor	1.0
Crest Factor	3:1
Nominal Voltage Details	Factory default output voltage is 120/208V; Less than 2% THD (full resistive load); Less than 0.1V Max DC Offset; Less than 2° Max Phase Angle Deviation; Less than 1% Max Voltage Unbalance Deviation
Frequency Compatibility	50 / 60 Hz
Frequency Compatibility Details	Auto-selectable frequency configuration

Battery

Full Load Runtime (min.)	5.2 minutes (20kW)
Half Load Runtime (min.)	15.4 minutes (10kW)
Expandable Battery Runtime	Supports extended runtime with optional external battery packs
Expandable Runtime	Yes
Expandable Runtime Description	External battery pack wiring is contractor supplied

Voltage Regulation

Voltage Regulation Description	Online, double-conversion power conditioning maintains ±1% output voltage regulation
Overvoltage Correction	Maintains continuous operation without using battery power during overvoltages to 253V

User Interface, Alerts & Controls

Front Panel LCD Display	Front panel LCD with scroll and enter buttons offers display of UPS operating mode, site power and UPS condition monitoring and operating configuration options; LCD also reports alarm conditions, including Short circuit, Inverter fail and Over temperature; Supports English, French, German, Russian, Portuguese, Spanish, Turkish and Polish language options
Switches	ON button turns UPS system on; OFF button turns UPS system off; SELECT/ENTER UP and SELECT/ENTER DOWN buttons enable on-screen selection and navigation options; EPO (Emergency Power Off) button turns UPS output off and disables Bypass output
Alarm Cancel Operation	Power-fail alarm can be silenced using alarm-cancel switch

Surge / Noise Suppression

EMI / RFI AC Noise Suppression	Yes
AC Suppression Joule Rating	9220
AC Suppression Response Time	Instantaneous

Physical

Cooling Method	Fans
Installation Form Factors Supported with Included Accessories	Tower
Primary Form Factor	Tower
Primary UPS Depth (mm)	800
Primary UPS Height (mm)	1351
Primary UPS Width (mm)	521
Shipping Dimensions (hwd / in.)	61.80 x 28.00 x 39.00
Shipping Weight (lbs.)	865
UPS Housing Material	Steel
UPS Power Module Dimensions (hwd; in.)	53.2 x 20.5 x 31.5
UPS Power Module Weight (kg)	354.26
UPS Power Module Weight (lbs.)	781

Environmental

Operating Temperature Range	+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range	+4 to +104 degrees Fahrenheit / -20 to +40 degrees Celsius
Relative Humidity	Up to 95%, non-condensing

Communications

Network Management Cards	SNMPWEBCARD ; WEBCARDLX ; MODBUSCARD ; RELAYIOCARD
Network Monitoring Port Description	Additional built-in set of INPUT and OUTPUT contacts support remote notification of Online Mode operation; Battery Mode operation; Bypass Mode operation; Abnormal Bypass Mode Source; Battery Test Failure and Low Battery conditions
PowerAlert Software	Available via free download from www.tripplite.com/poweralert
Communications Cable	DB9 cabling included
Communications Interface	DB9 Serial; Slot for SNMP/Web interface
