Tripp-Lite SUT40KMBP | UPS Maintenance Bypass Panel for SUT40K - 3 ...
Regular price
$8,730.88
Unit price
Brand: Tripp-Lite
|
SKU:
9810693
Regular price
$8,730.88
Unit price
Description
Description

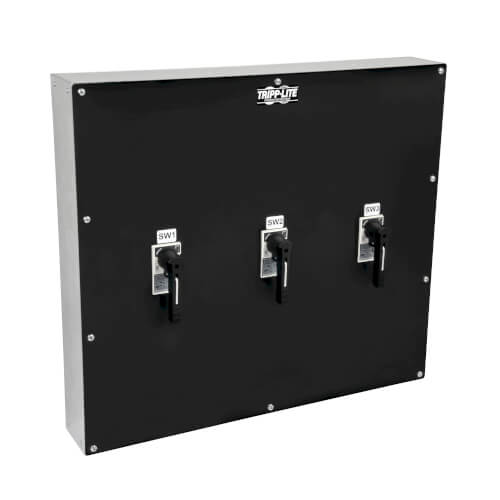

This bypass panel isolates an SUT40K 3-Phase UPS system from connected loads during maintenance.
Features
- Bypass an SUT40K UPS to Perform Maintenance
- For use with Tripp Lite’s SUT40K 3-phase UPS system, the SUT40KMBP maintenance bypass panel (MBP) maintains total continuity of power to connected load circuits when bypass of the UPS is required for regular service and maintenance. This UPS maintenance bypass panel has three 4-pole circuit breakers for Input, Bypass and Output. The breakers have removable handles to allow the panel’s trim cover to be removed for internal access. Maximum current capacity is 150A.
- Convenient Wall-Mount Installation
- Made of galvanized steel, the service bypass panel has rear mounting holes for installation on a smooth and solid wall (mounting hardware not included).
- One-Year Warranty
- The SUT40KMBP is backed by a one-year limited warranty, ensuring reliability and performance.
Specifications
Specifications
Highlights
- Isolates a Tripp Lite SUT40K UPS from connected loads to permit maintenance
- Allows connected loads to remain continuously powered
- Three built-in 4-pole circuit breakers for Input, Bypass and Output
- Mounting holes for convenient wall installation
- Maximum current capacity is 150A
Applications
- Bypass an SUT40K UPS system to perform maintenance
Overview
| UPC Code | 37332222367.0 |
|---|
Input
| Nominal Input Voltage Description | 208Y/120 VAC 3 phase, 4 wire (3P+N+E) |
|---|
Output
| Output Capacity Details | 150A maximum |
|---|
Physical
| Form Factors Supported | Wallmount |
|---|---|
| Shipping Dimensions (hwd / in.) | 13.50 x 42.00 x 36.00 |
| Unit Dimensions (hwd / in.) | 28.13 x 31.5 x 6.98 |
| Unit Weight (lbs.) | 124 |
Warranty
| Product Warranty Period (Worldwide) | 1-year limited warranty |
|---|
