Brand: Tripp-Lite
|
SKU:
257510

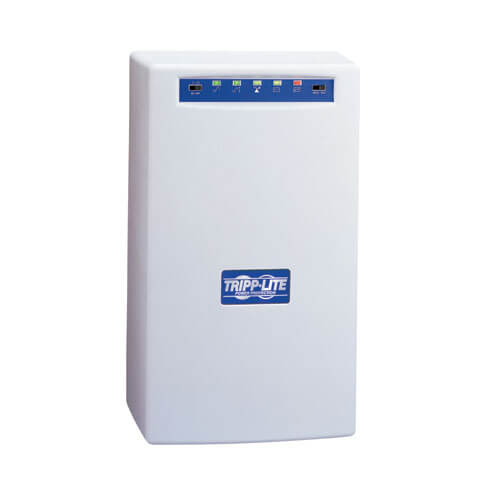

Tripp-Lite TE1200 | TE Series 120V 1200VA 940W Line-Interactive UPS, AVR, Tower, DB9 Serial port
Regular price
$697.91
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite TE1200 | TE Series 120V 1200VA 940W Line-Interactive UPS...
Regular price
$697.91
Unit price
Description
Description
Tripp Lite's TE1200 UPS System provides line-interactive voltage regulation and long lasting battery support for mid-size business telephone systems, voicemail systems, personal computers and other communications, network and telecom applications. 1200VA power handling capacity and large capacity battery system maintains continuous operation through power interruptions with over 2 hours runtime for many phone systems and over 1 hour for larger systems. Line interactive voltage regulation maintains normal 120 volt output levels during brownouts as low as 75V and overvoltages as high as 147V, saving battery reserves for use only during complete power failures. Includes 6 outlets, diagnostic LEDs and a built-in serial port that works with Free PowerAlert Software and cabling to provide automatic unattended shutdown of network and PC applications. $200,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
Features
- Provides connected equipment with continuous power during short and long duration loss of commercial power
- Line-interactive voltage regulation corrects brownouts and overvoltages from 75 to 147 volts back to usable 120V output levels, without using battery power
- Supports loads up to 1200VA/940 watts
- 16 minutes half load runtime (600VA/470 watts), 7 minutes full load runtime (1200VA/940 watts)
- 6 protected outlets; 6-ft. cord
- DB9 network interface
- Complete surge protection and EMI/RFI noise filtering
- $200,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
- 5 diagnostic LEDs indicate AC present, on battery, voltage correction, overload & battery low/replace
- Battery replacement door
Special Features
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
|---|
Specifications
Specifications
Package Includes
- TE1200 UPS System
- Warranty information
- Instruction manual
Overview
| UPC Code | 37332098580.0 |
|---|---|
| UPS Type | Line-Interactive |
Input
| Rated input current (Maximum Load) | 8.25A |
|---|---|
| Nominal Input Voltage(s) Supported | 120V AC |
| UPS Input Connection Type | 5-15P |
| UPS Input Cord Length (ft.) | 6 |
| Recommended Electrical Service | 15A 120V |
| Input Phase | Single-Phase |
Output
| Output Volt Amp Capacity (VA) | 1200 |
|---|---|
| Output kVA Capacity (kVA) | 1.2 |
| Output Watt Capacity (Watts) | 940 |
| Power Factor | 0.78 |
| Nominal Voltage Details | 115v nominal output in battery mode |
| Frequency Compatibility | 60 Hz |
| Output Voltage Regulation (Line Mode) | -18%, +8% |
| Output Voltage Regulation (Battery Mode) | 115V (+/- 5%) |
| Output AC Waveform (AC Mode) | Sine wave |
| Output AC Waveform (Battery Mode) | PWM sine wave |
Battery
| Full Load Runtime (min.) | 7 min. (940w) |
|---|---|
| Half Load Runtime (min.) | 16 min. (470w) |
| Expandable Runtime | No |
| DC System Voltage (VDC) | 36 |
| Battery Recharge Rate (Included Batteries) | Less than 8 hours from 10% to 90% |
Voltage Regulation
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147 |
|---|---|
| Overvoltage Correction | Input voltages between 128 and 147 are reduced by 12% |
User Interface, Alerts & Controls
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation |
|---|---|
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status |
| Audible Alarm | Audible alarm indicates power-failure and low-battery conditions |
Surge / Noise Suppression
| UPS AC Suppression Joule Rating | 480 |
|---|---|
| UPS AC Suppression Response Time | Instantaneous |
| EMI / RFI AC Noise Suppression | Yes |
Physical
| Installation Form Factors Supported with Included Accessories | Tower |
|---|---|
| Installation Form Factors Supported with Optional Accessories | Wallmount ( UPSWM - tower mounting kit) |
| Primary Form Factor | Tower |
| Primary UPS Depth (mm) | 234 |
| Primary UPS Height (mm) | 325 |
| Primary UPS Width (mm) | 191 |
| Shipping Dimensions (hwd / in.) | 16.90 x 11.20 x 12.80 |
| Shipping Weight (lbs.) | 38.3 |
| UPS Housing Material | PVC |
| UPS Power Module Dimensions (hwd; in.) | 12.8 x 7.5 x 9.2 |
| UPS Power Module Weight (kg) | 17.24 |
| UPS Power Module Weight (lbs.) | 38 |
Environmental
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
|---|---|
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Relative Humidity | 0 to 95%, non-condensing |
Communications
| PowerAlert Software | For local monitoring via the UPS’s built-in communication ports; download PowerAlert Local software at http://www.tripplite.com/poweralert |
|---|---|
| Communications Cable | DB9 cable included |
| Communications Interface | Contact closure; DB9 Serial |
Line / Battery Transfer
| Transfer Time | 2-4 milliseconds |
|---|---|
| Low Voltage Transfer to Battery Power (Setpoint) | 75 |
| High Voltage Transfer to Battery Power (Setpoint) | 147 |
