Brand: Tripp-Lite
|
SKU:
565611
Tripp-Lite TLP1208TELTV | Protect It! 12-Outlet Surge Protector, 8 ft. (2.43 m) Cord, 2880 Joules, Tel/Modem/Coaxial Protection
Regular price
$82.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite TLP1208TELTV | Protect It! 12-Outlet Surge Protector, 8 ...
Regular price
$82.72
Unit price
Description
Description

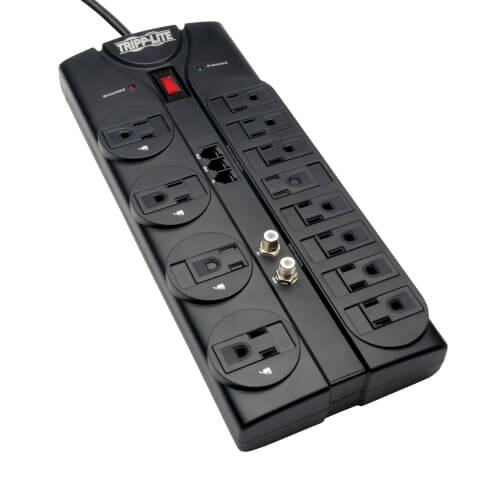

Tripp-Lite TLP1208TELTV | Protect It! 12-Outlet Surge Protector, 8 ft. (2.43 m) Cord, 2880 Joules, Tel/Modem/Coaxial Protection
Features
- 12 outlets with child safety covers
- 8-ft. (2.43 m) cord with space-saving right-angle plug
- Built-in RJ11 jacks prevent surges from damaging your modem/fax/phone equipment; 6-ft. (1.83 m) telephone cord included
- Surge suppression rating: 2880 joule protection
- EMI/RFI noise filtering
- 15 amp resettable circuit breaker
- Diagnostic LEDs confirm suppressor "protection present" (green) and "grounded" (red) status
- Includes full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
- Can accommodate up to 4 transformers without blocking remaining outlets
- Built-in digital 2.2GHz coax jacks prevent surges from damaging your cable/satellite equipment; 6-ft. (1.83 m) coax cable included
- Keyhole supports for wall mounting
- $150,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) covers connected equipment
- Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required
Special Features
| Rotatable Outlets | No |
|---|
Specifications
Specifications
Highlights
- 12 outlets / 8-ft. (2.43 m) cord
- 1 in/2 out tel/modem surge protection
- 1 line 2.2GHz digital gold coaxial surge protection
- 2880 joule rating
Package Includes
- TLP1208TELTV surge suppressor
- 6-ft. (1.83 m) RJ11 cable
- 1 set gold digital 2.2 GHz coax connectors
- Instruction manual and warranty information
Overview
| UPC Code | 37332152510.0 |
|---|
Input
| Nominal Input Voltage(s) Supported | 120V AC |
|---|---|
| Recommended Electrical Service | 120V (110-125V) |
| Input Cord Gauge Type | 14 gauge; SJT |
| Voltage Compatibility (VAC) | 120 |
| Maximum Surge Amps | 180000 |
| Input Plug Type | NEMA 5-15P |
Output
| Output Volt Amp Capacity (VA) | 15 |
|---|---|
| Frequency Compatibility | 50 / 60 Hz |
| Output (Watts) | 1800 |
| Output Receptacles | (12) 5-15R |
| Circuit Breaker (amps) | 15 |
| Overload Protection | 15A resettable circuit breaker |
| Transformer Accommodation | (8) Yes |
| Outlet Orientation | Two rows of outlets, including 4 widely spaced for transformers |
| Right-Angle Outlets | No |
User Interface, Alerts & Controls
| Diagnostic LED(s) | Yes |
|---|---|
| Switches | Two-position on/off power switch |
| Diagnostic LED Details | Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status |
Surge / Noise Suppression
| AC Suppression Joule Rating | 2880 |
|---|---|
| AC Suppression Response Time | < 1 ns |
Dataline Surge Suppression
| Telephone/DSL Protection | Yes |
|---|---|
| Telephone/DSL Protection Details | 1 line |
| Cable (Coax) Protection | Yes |
Physical
| Antimicrobial Coating | No |
|---|---|
| Power Cord Color | Black |
| Housing Color | Black |
| Integrated Keyhole Mounting Slots | Yes |
| Keyhole Slot Mounting Measurement (Center to Center) | Distance between horizontal tabs = 152mm; Distance between vertical tabs = 73.5mm |
| Material of Construction | Plastic |
| Outlets Measurement (Center to Center) | Distance between standard outlets = 25.4mm; Distance between transformer outlets = 57mm |
| Receptacle Color | Black |
Standards & Compliance
| Canada | cUL |
|---|---|
| Approvals | Exceeds IEEE587 category A&B specifications |
| UL1449 3rd Edition (AC Suppression) | UL1449 3rd Edition |
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|---|
| Connected Equipment Insurance (U.S.; Canada & Puerto Rico) | $150,000 Ultimate Lifetime Insurance |
