Tripp-Lite U026-016 | USB 2.0 Active Extension Cable (A M/F), 16 ft...
Regular price
$35.59
Unit price
Description
Description

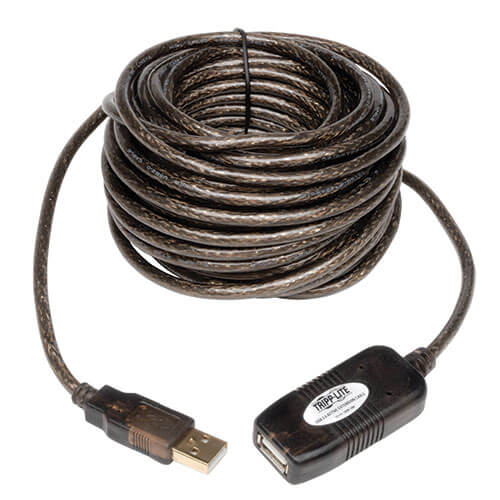

Tripp-Lite U026-016 | USB 2.0 Active Extension Cable (A M/F), 16 ft. (4.88 m)
Features
- Extend a USB 2.0 signal passed the 16-ft. (4.88 m) distance limitation
- Works together with standard USB 2.0 cables
- Bus powered signal booster
- Daisychain up to 5 cables to extend the signal up to 80-ft. (24.38 m) passed the 16-ft. (4.88 m) distance limitation
- The U026-016 provides up to 150mA of power to the connected device. If your device requires more than 150mA of power, it will either need to have its own power supply; or, to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-016.
Specifications
Specifications
Highlights
- Premium double-shielded cables with tinned copper braid and aluminum mylar foil feature twisted 28/22 AWG data/power lines
- Gold plated contacts provide superior conductivity for low and high speed devices (1.5 to 480 Mbps.)
- Active extension cable regenerates USB signal for extra-long distances: daisy-chain up to 80-ft. in most applications
System Requirements
- A USB 2.0 port and USB 2.0 device are required to achieve USB 2.0 speeds. A USB 1.1 port and/or device can be used, but you will not be able to achieve USB 2.0 speeds.
- The U026-016 provides up to 150mA of power to the connected device. If your device requires more than 150mA of power, it will either need to have its own power supply; or, to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-016.
Overview
| UPC Code | 37332120588.0 |
|---|---|
| Technology | USB 2.0 (High Speed); USB |
Physical
| Color | Black |
|---|---|
| Cable Length (ft.) | 16 |
| Shipping Dimensions (hwd / in.) | 1.00 x 4.50 x 5.90 |
| Shipping Weight (lbs.) | 0.40 |
Environmental
| Storage Temperature Range | -20 to 80 C (-4 to 176 F) |
|---|---|
| Operating Temperature | -20 to 80 C (-4 to 176 F) |
Connections
| Side A - Connector 1 | USB A (MALE) |
|---|---|
| Side B - Connector 1 | USB A (FEMALE) |
Standards & Compliance
| Certifications | RoHS-Compliant |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
