Brand: Tripp-Lite
|
SKU:
9810761

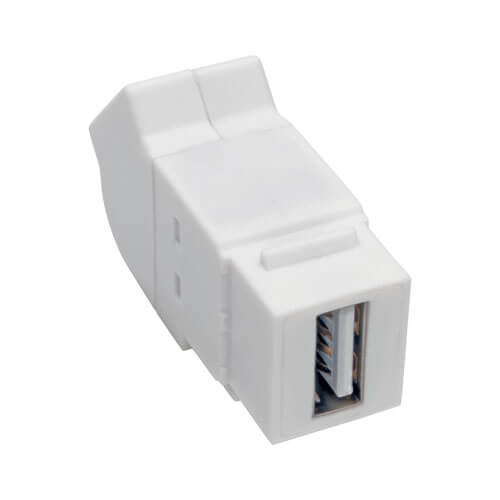

Tripp-Lite U060-000-KPA-WH | USB 2.0 All-in-One Keystone/Panel Mount Angled Coupler (F/F), White
Regular price
$4.54
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite U060-000-KPA-WH | USB 2.0 All-in-One Keystone/Panel Moun...
Regular price
$4.54
Unit price
Description
Description
The U060-000-KPA-WH USB 2.0 All-in-One Keystone/Panel Mount Angled Coupler (F/F) is recommended for completing an in-wall USB cable run, connecting two USB devices or extending the length of an existing USB application. The USB 2.0 adapter also can give your conference room, classroom, home theater room or retail establishment a professional, tidy look by hiding components out of sight in a closet or another room to eliminate cable clutter. The keystone design snaps easily into the cutout of a wall plate or panel. The angled connector makes the coupler easier to install in tight spaces. An optional panel mount adapter is included for securing the coupler to a motherboard, podium or kiosk. Compatible with all USB-A cables, the female/female USB coupler features molded nickel-plated connectors with gold-plated contacts for maximum conductivity and minimum data loss. The heavy-duty white plastic housing is designed for durability and long life.
Features
- USB 2.0 Adapter Connects 2 USB-A Cables to Create a Longer Cable Run
- Keystone design snaps easily into wall plate or panel
- Hides components out of sight to eliminate cable clutter
- Optional panel mount adapter allows installation in motherboard, podium or kiosk
- Angled female connector permits more flexible installation in tight spaces
- Premium Construction for Superior Signal Transfer
- Molded connectors with gold-plated contacts provide maximum conductivity and minimize data loss
- Heavy-duty plastic housing designed for durability and long life
- White in color to match most common wall plates
Features & Specifications
| USB Specification | USB 2.0 (up to 480 Mbps) |
|---|
Specifications
Specifications
Package Includes
- U060-000-KPA-WH USB All-in-One Keystone/Panel Mount Angled Coupler (F/F), White
Highlights
- Angled female connector allows more flexible installation in tight spaces
- Gold-plated contacts for max conductivity and minimum data loss
- Optional panel mount adapter secures to podium or kiosk
- Keystone design snaps easily into standard wall plate or panel
- White in color to match most common wall plates
Overview
| UPC Code | 37332209900.0 |
|---|---|
| Technology | USB; USB 2.0 (High Speed) |
Physical
| Color | White |
|---|---|
| Material of Construction | ABS |
| Shipping Dimensions (hwd / in.) | 9.00 x 7.00 x 0.50 |
| Shipping Weight (lbs.) | 0.03 |
Environmental
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
|---|---|
| Storage Temperature Range | -4 to 140 F (-20 to 60 C) |
| Relative Humidity | 10% to 90% RH, Non-Condensing |
Connections
| Side A - Connector 1 | USB A (FEMALE) |
|---|---|
| Side B - Connector 1 | USB A (FEMALE) |
| Connector Plating | Nickel |
| Contact Plating | Gold |
Standards & Compliance
| Certifications | ROHS Compliant |
|---|
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|
