Tripp-Lite U223-010 | 10-Port USB 2.0 Hub
Regular price
$61.36
Unit price
Description
Description

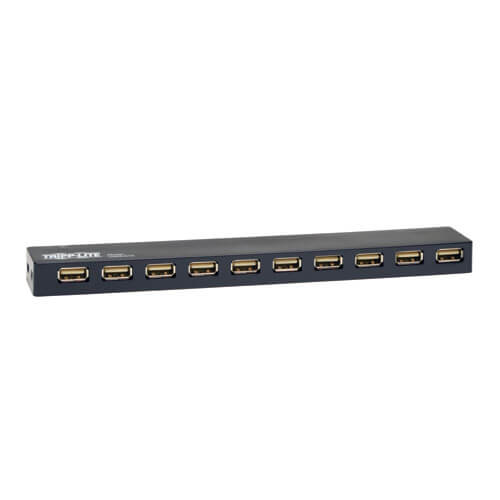

Tripp Lite's U223-010, 10-port USB 2.0 hub is the most versatile and powerful hub on the market. It allows you to connect up to ten USB devices to a single USB port on your computer. This unit meets or exceeds USB 2.0 Specifications for Hi-Speed data transmission rates up to 480Mbps. Perfect for both the desktop user. While the hub will function perfectly in virtually all cases without needing external power, a compact, multi-voltage AC adapter (100-240V ) has been provided for the rare circumstance when connecting a power hungry device. This USB 2.0 device is backwards compatible so that it will function with both USB 2.0 and USB 1.1 devices. Over-current protection safeguards connected equipment from over voltages.
Features
- USB 2.0 10-Port Hub
- Supports data transfer rates up to 480Mbps
- Connect up to 10 USB devices to a single USB port on your computer
- Compact design is ideal for use with a laptop/notebook computer
- Does not require external power, software, or complicated set-up procedures
- Plug-and-play/hot-swappable allows you to add or remove a device at any time
- Per-port overcurrent protection
- Bus-powered or self-powered
- Supports USB 2.0 spec up to 500mA per port
- On bus-power, 500mA from the USB 2.0 computer port is shared between the hub ports
- The included external power supply provides 4A of power, to be shared between the hub ports (up to 500mA per port)
- Compact, multi-voltage power supply (100-240V) provided
- Compatible with all major operating systems
Features & Specifications
| USB Specification | USB 2.0 (up to 480 Mbps) |
|---|---|
| Driver Required | No |
Specifications
Specifications
System Requirements
- USB 2.0 Computer Port
- USB Peripherals
Highlights
- Connects up to 10 USB 2.0 devices
- Bus powered or optional AC adapter
- Compatible with all major operating systems
Overview
| UPC Code | 37332185396.0 |
|---|---|
| Product Type | Hub |
| Technology | USB 2.0 (High Speed); USB |
| Host Connector | USB A (MALE) |
Video
| Number of Monitors Supported | 0 |
|---|---|
| Extended Mode | No |
| Mirror Mode | No |
Data
| Data Ports | (10) USB A (FEMALE) |
|---|---|
| Data Ports Details | (10) USB-A - USB 2.0 |
Input
| Voltage Compatibility (VAC) | 100; 110; 120; 127; 200; 208; 220; 230; 240 |
|---|---|
| External Power Supply Plug(s) | NEMA 1-15P North America |
| Bus Powered | No |
Power
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 0.9A |
|---|---|
| External Power Supply Output Specs (V / A) | 5V / 4A |
User Interface, Alerts & Controls
| LED Indicators | Blue (Power) |
|---|
Physical
| Color | Black |
|---|---|
| Material of Construction | ABS |
| Shipping Dimensions (hwd / in.) | 2.20 x 3.20 x 9.10 |
| Shipping Weight (lbs.) | 0.70 |
| Unit Dimensions (hwd / in.) | 0.6 x 8.6 x 1.3 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.2 |
Environmental
| Operating Temperature Range | 32 to 158 F (0 to 70 C) |
|---|---|
| Storage Temperature Range | 14 to 194 F (-10 to 90 C) |
| Relative Humidity | 10% to 90 % RH; Non-Condensing |
| BTUs | 1.9 BTU/Hr |
| Power Consumption (Watts) | 0.55 |
| Power Provided to Connected Device(s) | 5V 0.5A (2.5W) Output per USB port |
Connections
| Ports | 10 |
|---|---|
| Side A - Connector 1 | USB A (FEMALE) |
| Side B - Connector 1 | (10) USB A (FEMALE) |
Standards & Compliance
| Certifications | Tested to CE; FCC; RoHS; REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
