Brand: Tripp-Lite | SKU: 812823

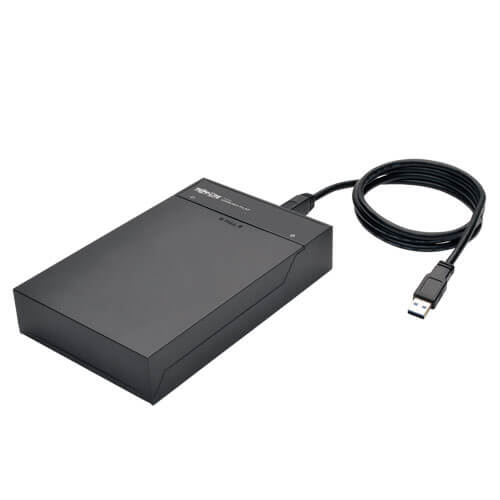

Tripp-Lite U339-001-FLAT | USB 3.0 to SATA Hard Drive Lay-Flat Enclosure for 3.5-in. HDD and SSD

Regular price $49.96
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

The U339-001-FLAT USB 3.0 to SATA Hard Drive Lay-Flat Enclosure allows you to quickly and easily add storage and transfer data to your computer or laptop from a SATA hard drive. It lays flat to take up little space and maintain stability. Just insert a 2.5-in. or 3.5-in. SATA HDD (Hard Disk Drive) or SSD (Solid State Drive) into the slot, and connect the included 4-ft. (1.22 m) USB 3.0 cable to the USB port on your computer. Slide the protective cover over the dock, even when it's in use, to keep the SATA drive dust-free at all times. The docking station accepts SATA III (6 Gbps), SATA II (3 Gbps) and SATA I (1.5 Gbps) drives. It supports USB 3.0 (5 Gbps), USB 2.0 (480 Mbps) and USB 1.1 (12 Mbps) transfer speeds, as well as UASP (USB Attached SCSI Protocol), which transfers data faster than conventional USB 3.0 and requires a UASP-enabled host controller. Plug-and-play configuration means it works right out of the box with no software or drivers to download or install. Green LED indicates the unit is connected to a USB port. Blue LED indicates the unit is receiving power. Works with Windows and Mac.

Features

  • Easy to Use Right from the Box
  • Lays flat for stable performance
  • Plug and play—no extra software or drivers to download or install
  • SATA drive slides easily into convenient slot
  • Protective cover keeps dust and dirt away from sensitive SATA drives
  • On/off button powers off SATA drive when not in use
  • LEDs indicate when the unit is powered on and connected
  • Compliant with Most Applications
  • Accepts 2.5-in. or 3.5-in. SATA III (6 Gbps), SATA II (3 Gbps) and SATA I (1.5 Gbps) drives
  • Supports USB 3.0 (5 Gbps), USB 2.0 (480 Mbps) and USB 1.1 (12 Mbps) transfer speeds
  • Supports UASP (USB Attached SCSI Protocol) for even faster transfer speeds than USB 3.0*
  • Works with both HDD (Hard Disk Drive) and SSD (Solid State Drive)
  • Requires UASP-enabled host controller. UASP is supported by Windows 8 and later, Mac OS X 10.8 and later, and Linux.

Specifications

System Requirements

  • Computerwith available USB port (USB 3.0 port required to achieve USB 3.0 data transferspeeds)
  • 2.5-in.or 3.5-in. SATA HDD or SSD
  • UASP-enabledhost controller (for UASP data transfer speeds only)

Highlights

  • Compact, stable lay-flat design
  • No software or drivers to download or install
  • Compliant with USB 3.0, USB 2.0 and USB 1.1 transfer rates
  • Compliant with SATA HDD or SSD drives up to SATA III
  • Protective cover keeps SATA drive free of dust

Overview

UPC Code37332188120.0
AC AdapterInput: 100-240V; 50/60Hz; 0.8A; Output: 12V; 2A; 5 ft.
TechnologyUSB 3.0 (SuperSpeed); SATA/eSATA; USB

Physical

ColorBlack
Shipping Dimensions (hwd / in.)2.10 x 8.30 x 8.10
Shipping Weight (lbs.)1.20

Environmental

Operating Temperature Range41 to 104 F (5 to 40 C)
Storage Temperature Range-4 to 158 F (-20 to 70 C)
Relative Humidity8 to 90%

Connections

Side A - Connector 1USB 3.0 A (MALE)
Side B - Connector 122 PIN SATA + POWER (FEMALE)

Warranty

Product Warranty Period (Worldwide)3-year limited warranty

Documents and Downloads
