Brand: Tripp-Lite | SKU: 932110

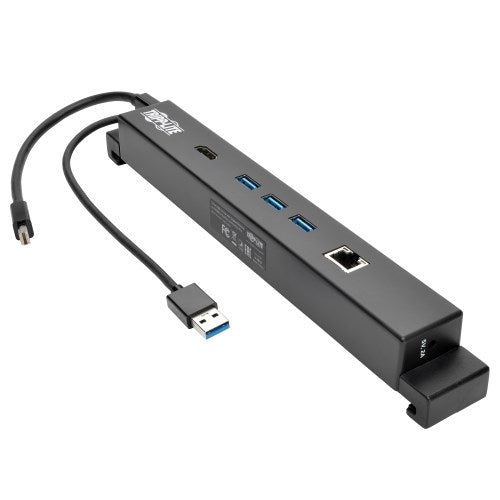

Tripp-Lite U342-HGU3 | USB 3.0 Docking Station for Microsoft Surface and Surface Pro, USB-A, HDMI, GbE, 4K UHD

$140.99

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Adds 3 USB 3.0 ports, an RJ45 Gigabit Ethernet jack and an external HDMI 4K monitor to your Microsoft Surface or Surface Pro. Recommended for transferring data, accessing printers and scanners, or watching movies.

Features

Compatible with All Surface Models and Versions
Plug and play with no software or drivers needed
Fits perfectly on Surface kickstand
Recommended for accessing a Gigabit Ethernet LAN, transferring data, watching videos or connecting a printer or scanner
Add Up to 3 USB-A Devices to Your Surface
Supports USB 3.0 data transfer rates up to 5 Gbps
Backward compatible with previous USB generations
Join a Wired Gigabit Ethernet Network
Ensures true 10/100/1000 Mbps Ethernet network speeds
Complies with IEEE 802.3, 802.3u, 802.3ab and 802.3az standards
Supports full- and half-duplex, Wake-on-LAN, jumbo frames, VLAN tagging and auto-MDIX
Supports IPv4/IPv6 COE to reduce CPU loading
Watch 4K Content on a Larger Screen
Supports HDMI video resolutions up to 3840 x 2160 (4K x 2K) @ 24/25/30Hz
Mini DisplayPort cable included
HDMI cable sold separately

Specifications

Highlights

Supports HDMI video resolutions up to 3840 x 2160 (4K x 2K) @ 24/25/30Hz
Supports data transfer rates up to 5 Gbps
Ensures true 10/100/1000 Mbps Ethernet network speeds
Fits perfectly on Surface kickstand
Plug and play with no software or drivers needed

System Requirements

Any model Microsoft Surface or Surface Pro

Overview

UPC Code	37332198501.0
Product Type	Docking Station
AC Adapter	Input: 100V-240V; 50/60Hz; 0.4A Max Output: 5V 2A
Technology	USB 3.0 (SuperSpeed)
Host Connector	USB A (MALE)

Video

Number of Monitors Supported	1
Video Ports	HDMI (FEMALE)
Video Ports Details	HDMI 1.4; DisplayPort 1.2
Resolutions Supported	HDMI Video Supports 3840 x 2160 (4K x 2K) @30Hz
Max Supported Video Resolution	4K x 2K (3840 x 2160) @30Hz
Extended Mode	No

Data

Data Ports	(3) USB A (FEMALE)
Data Ports Details	(3) USB-A - USB 3.2 Gen 1 (5 Gbps)

Network

Network Ports	RJ45 (FEMALE)

Input

Voltage Compatibility (VAC)	100; 110; 120; 127; 200; 208; 220; 230; 240
External Power Supply Plug(s)	NEMA 1-15P North America

Power

External Power Supply Input Specs (V / Hz / A)	100-240V / 50/60Hz / 0.4A
External Power Supply Output Specs (V / A)	5V / 2A
External Power Supply Cord Length (ft.)	5.0

User Interface, Alerts & Controls

LED Indicators	Green (Link); Yellow (Activity)

Charging

Total Charging Watts	0

Physical

Color	Black
Cable Jacket Rating	VW-1
Material of Construction	ABS

Environmental

Operating Temperature Range	-4 to 158 F (-20 to 70 C)
Storage Temperature Range	-4 to 185 F (-20 to 85 C)
Relative Humidity	20% to 80% RH; Non-Condensing
BTUs	6.4 BTU/Hr
Power Consumption (Watts)	1.9
Power Provided to Connected Device(s)	5V 0.9A (4.5W) Output per USB Port

Communications

Network Speed	1Gbps
IEEE Standards Supported	802.3; 802.3u; 802.3ab; 802.3az

Connections

Ports	6
PC/Server Connections	USB
Dock Connectors	3 x USB 3.0A; RJ45; HDMI; Mini DP
Side A - Connector 1	USB 3.0 A (MALE)
Side A - Connector 2	MINI DISPLAYPORT (MALE)
Side B - Connector 1	(3) USB 3.0 A (FEMALE)
Side B - Connector 2	RJ45 (FEMALE)
Side B - Connector 3	HDMI (FEMALE)
Connector Plating	Nickel
