Brand: Tripp-Lite
|
SKU:
642839

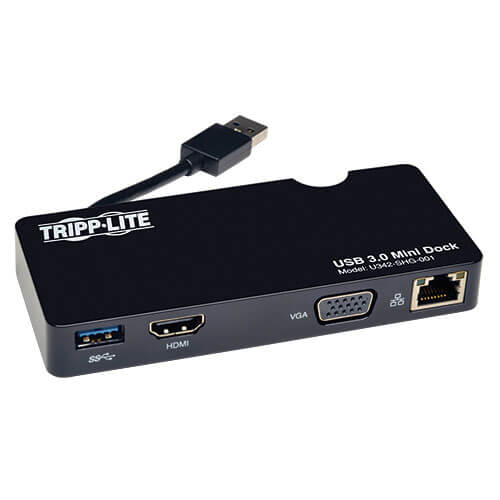

Tripp-Lite U342-SHG-001 | USB 3.0 SuperSpeed HDMI / VGA Mini Dock, GbE
Regular price
$126.69
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite U342-SHG-001 | USB 3.0 SuperSpeed HDMI / VGA Mini Dock, GbE
Regular price
$126.69
Unit price
Description
Description
Add USB 3.0, HDMI or VGA, and LAN ports to your laptop through a single USB 3.0 connection
Features
- Add a VGA or HDMI monitor, USB 3.2 Gen 1 port and Gigabit Ethernet to your laptop
- Portable design with built-in cable is perfect for travel, tucking into your laptop bag when not in use
- Bus powered...no external power adapter required
- USB 3.2 Gen 1 is 10 times faster than USB 2.0, supporting data transfer rates up to 5 Gbps
- Backward compatible with USB 2.0 and 1.1
- Connect a DVI*, HDMI or VGA monitor or projector
- HDMI port supports video resolutions up to 2048 x 1152 @ 60 Hz
- VGA (HD15) port supports video resolutions up to 1920 x 1200 @ 60 Hz
- Automatically resumes from hibernation and suspend modes
- Gigabit Ethernet port supports true 10/100/1000 Mbps (1 Gbps) network speeds
- USB 3.2 Gen 1 port is available for the connection of a USB peripheral device
- * Requires an HDMI to DVI adapter, such as Tripp Lite’s P566-Series cables
Features & Specifications
| HDCP Specification | 1.3 |
|---|---|
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Driver Required | Yes |
| Recommended Category Cable | Cat5/Cat5e/Cat6 Cables |
| Auto MDIX Support | Yes |
| Full Duplex Support | Yes |
| Suspend Mode Support | Yes |
| Remote Wakeup Support | Yes |
Specifications
Specifications
Highlights
- Connect an external HDMI or VGA monitor to your laptop
- Adds a USB 3.0 and Gigabit Ethernet port to your laptop
- Compact design is perfect for travel, fitting easily into a laptop bag pocket
System Requirements
- Supports computers running Windows XP, Vista, 7, 8, 8.1, 10
- Supports Surface tablets running non-RT Windows 8 or 8.1
- USB port (USB 3.0 port required for USB 3.0 speeds)
- DVI, HDMI or VGA monitor
- Compatible with Windows 7 and later and Intel Mac OS X 10.8.5 / Mac 10.11 and later. Supports both 32- and 64-bit.
- Requires an HDMI to DVI adapter, such as Tripp Lite's P566-Series cables
Overview
| UPC Code | 37332185341 |
|---|---|
| Product Type | Docking Station |
| Technology | Cat5/5e; Cat6; HDMI; USB; USB 3.0 (SuperSpeed); VGA/SVGA |
| Host Connector | USB A (MALE) |
Video
| Number of Monitors Supported | 1 |
|---|---|
| Video Ports | HD15 (FEMALE); HDMI (FEMALE) |
| Video Ports Details | HDMI 1.3; HDCP 1.3 |
| Resolutions Supported | HDMI supports 2048 x 1152 @60Hz, VGA support 1920 x 1200 @60Hz |
| Max Supported Video Resolution | 2048 x 1152 @60Hz |
| Extended Mode | No |
Data
| Data Ports | USB A (FEMALE) |
|---|---|
| Data Ports Details | USB-A - USB 3.2 Gen 1 (5 Gbps) |
Network
| Network Ports | RJ45 (FEMALE) |
|---|
Input
| Bus Powered | Yes |
|---|---|
| Product Length (in.) | 5 |
User Interface, Alerts & Controls
| LED Indicators | Green (Link); Yellow (Activity) |
|---|
Charging
| Total Charging Watts | 0 |
|---|
Physical
| Color | Black |
|---|---|
| Cable Jacket Rating | VW-1 |
| Material of Construction | Polycarbonate; ABS |
| Shipping Dimensions (hwd / in.) | 1.60 x 6.50 x 5.40 |
| Shipping Weight (lbs.) | 0.4 |
| Unit Dimensions (hwd / in.) | 0.67 x 4.9 x 2.1 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.41 |
Environmental
| Operating Temperature Range | 50 to 104 F (10 to 40 C) |
|---|---|
| Storage Temperature Range | -4 to 158 F (-20 to 70 C) |
| Relative Humidity | 0% to 90 RH, Non-Condensing |
Communications
| Network Speed | 1Gbps |
|---|---|
| IEEE Standards Supported | 802.3az |
Connections
| Ports | 4 |
|---|---|
| Dock Connectors | USB3.0 A; HDMI; VGA; RJ45 |
| Side A - Connector 1 | USB 3.0 A (MALE) |
| Side B - Connector 1 | HDMI (FEMALE) |
| Side B - Connector 2 | USB 3.0 A (FEMALE) |
| Side B - Connector 3 | HD15 (FEMALE) |
| Side B - Connector 4 | RJ45 (FEMALE) |
| Connector Plating | Nickel |
