Brand: Tripp-Lite | SKU: 812833

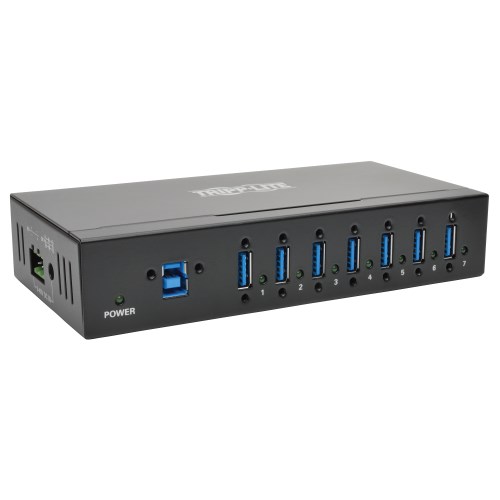

Tripp-Lite U360-007-IND | 7-Port Industrial-Grade USB 3.0 SuperSpeed Hub - 20 kV ESD Immunity, Metal Housing, Mountable

Regular price $259.34
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

Rugged industrial-grade hub adds 7 USB 3.0 ports to your computer for connecting industrial printers, sensors and other USB devices.

Features

  • Industrial-Grade USB 3.0 Hub Adds up to 7 USB Devices to Your Computer
  • This USB 3.0 hub with a heavy-duty all-metal housing connects as many as seven USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host PC, server or thin client. The durable metal housing withstands harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses.
  • Supports SuperSpeed USB 3.0 to Ensure Fast Data Transfers
  • The hub supports USB 3.0 SuperSpeed data transfer rates up to 5 Gbps, which is 10 times faster than USB 2.0. It is especially recommended for high-bandwidth USB 3.0 devices, such as security cameras and high-resolution webcams. Each downstream port provides up to 900 mA for charging mobile devices. The hub is backward compatible with previous USB standards, so you can also continue using older peripherals while getting maximum performance from current devices.
  • Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent
  • Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This seven-port hub includes ESD protection to ±20 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with ±2.5kV-per-port overcurrent protection to safeguard your connected devices against damage and data loss from power surges.
  • Plug-and-Play Hub Offers Flexible Power and Mounting Options
  • The U360-007-IND requires no software or drivers to download and install. It draws power from the connected computer through the included USB cable. You can also plug the included 3-wire terminal block into the hub to draw power from a power terminal, or connect a compatible 9V–40V DC LPS power supply (not included) to a standard AC outlet. The hub mounts easily to a wall or DIN rail using the included hardware.

Features & Specifications

USB SpecificationUSB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
Driver RequiredNo

Specifications

Highlights

  • Adds barcode scanner, serial device, sensor—up to 7 devices—to your host computer
  • Supports USB 3.0 SuperSpeed rates up to 5 Gbps to ensure fast data transfers
  • Rugged metal housing designed to withstand harsh warehouse and factory environments
  • ESD protection to ±20 kV cuts potential static damage to your connected peripherals
  • Plug-and-play operation with no software required for easy, immediate installation

Applications

  • Connect up to 7 USB devices and peripherals to your computer or laptop
  • Add easy-to-access USB ports to computers stored in a cabinet, behind furniture or other hard-to-reach location
  • Mount to a wall or DIN rail in a harsh environment, such as a factory, construction site, supply room or warehouse

Overview

UPC Code37332186300.0
Product TypeHub
AC AdapterInput: 100-240V; 50/60Hz; 0.6A; Output: 9-40V; 3A
Over Current ProtectionYes
TechnologyUSB; USB 3.0 (SuperSpeed)
Host ConnectorUSB A (MALE)

Video

Number of Monitors Supported0
Extended ModeNo
Mirror ModeNo

Data

Data Ports(7) USB A (FEMALE)
Data Ports Details(7) USB-A - USB 3.2 Gen 1 (5 Gbps)

Input

Voltage Compatibility (VAC)100; 110; 120; 125; 127; 200; 208; 220; 230; 240
Bus PoweredYes
Product Length (in.)6.22
Product Length (cm.)15.8
Product Length (ft.)0.518

Power

External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 0.6A
External Power Supply Output Specs (V / A)9V - 40V / 3A

User Interface, Alerts & Controls

LED IndicatorsGreen (Power, 1, 2, 3, 4, 5, 6, 7)

Physical

ColorBlack
Included Mounting AccessoriesYes
Material of ConstructionSteel (Galvanized Cold Rolled)
Shipping Dimensions (hwd / in.)2.60 x 4.50 x 7.40
Shipping Weight (lbs.)1.20
Unit Dimensions (hwd / in.)1.3 x 6.2 x 3.1
Unit Packaging TypeBox
Unit Weight (lbs.)0.75

Environmental

Operating Temperature Range32 to 140 °F (0 to 60 °C)
Storage Temperature Range14 to 176 °F (-10 to 80 °C)
Relative Humidity5% to 90% RH; Non-Condensing
BTUs110.6 BTU/Hr
Power Consumption (Watts)32.4
Power Provided to Connected Device(s)5V 0.9A (4.5W) Output (USB-A 3.0)

Connections

Ports7
Side A - Connector 1USB 3.0 A (MALE)
Side B - Connector 1(7) USB 3.0 A (FEMALE)

Standards & Compliance

CertificationsCE; FCC; RoHS; REACH

Warranty

Product Warranty Period (Worldwide)3-year limited warranty
