Brand: Tripp-Lite | SKU: 9810805

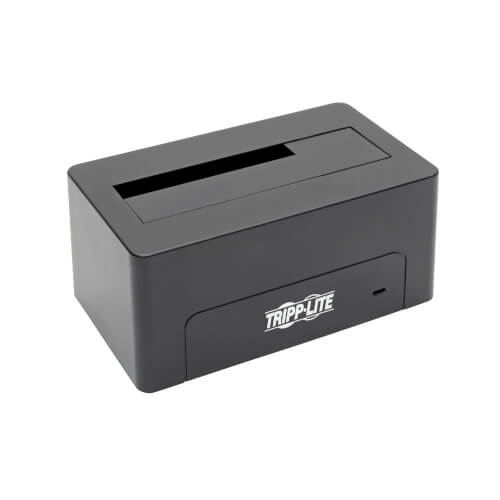

Tripp-Lite U439-001-CG2 | USB-C to SATA Quick Dock - USB 3.1 Gen 2 (10 Gbps), 2.5/3.5 in. HDD/SDD, Thunderbolt 3 Compatible

Regular price $69.41
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

USB-C to SATA dock connects a SATA hard drive to your computer, laptop, MacBook, Ultrabook or Chromebook’s USB-C or Thunderbolt 3 port.

Features

  • USB-C to SATA Adapter Connects a SATA Drive to Your Device’s USB-C or Thunderbolt 3 Port
  • This single-drive USB 3.1 Type-C to SATA quick dock allows you to quickly and easily add extra storage space to your computer, tablet, laptop, notebook, MacBook, Ultrabook or Chromebook. The plug-and-play unit connects to your device’s USB Type-C or Thunderbolt 3 port using the included USB 3.1 Gen 2 cable. Just insert a 2.5- or 3.5-inch SATA drive into the top slot, and activate the on/off switch. An LED indicates a link with the device’s USB port.
  • Complies with USB 3.1 Gen 2 Standards for Ultra-Fast File Transfers
  • This USB Type-C to SATA adapter supports USB 3.1 Gen 2 data transfer speeds up to 10 Gbps. It is backward compatible with previous USB 3.0 and USB 2.0 generations, so you can use it with older USB devices and cables. It also reads data up to 70 percent faster and writes up to 40 percent faster when connected to a UASP-enabled host controller.
  • Works with Most SATA Drives
  • The dock accepts 2.5-inch and 3.5-inch SATA I, II and III hard disc drives (HDDs) and solid state drives (SSDs) up to 10 TB (and higher-capacity drives when they become available). It also works with all major operating systems, including Windows, Mac and Linux.

Features & Specifications

USB SpecificationUSB 3.1 Gen 2 (up to 10 Gbps)
Driver RequiredNo
UASP SupportYes

Specifications

Highlights

  • Ideal for system builders and IT pros who need quick access to drives for imaging
  • Supports USB 3.1 Gen 2 speeds up to 10 Gbps for ultra-fast file transfers
  • Compatible with all 2.5 and 3.5 in. SATA I, II and III HDDs and SSDs up to 10 TB
  • Works with all major operating systems, including Windows, Mac and Linux
  • Plug-and-play operation with no software or drivers required

Applications

  • Add external storage to your PC or notebook computer
  • Quickly archive backup data from your computer to an external drive
  • Transfer data from one computer to another via SATA drive
  • Gain fast access to SATA drives for imaging purposes

Overview

UPC Code37332230973.0
AC AdapterInput: 100-240V; 50/60Hz; 0.6A; Output: 12V; 2A; 4.9 ft.
TechnologyUSB 3.1 (Gen 1); SATA/eSATA; USB

Input

Voltage Compatibility (VAC)100; 110; 120; 127; 200; 208; 220; 230; 240
External Power Supply Plug(s)NEMA 1-15P North America
Bus PoweredNo

Power

External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 0.6A
External Power Supply Output Specs (V / A)12V / 2A
External Power Supply Cord Length (ft.)5
External Power Supply Cord Length (m.)1.5
External Power Supply CertificationsFCC; UL; cUL; RoHS

User Interface, Alerts & Controls

LED IndicatorsBlue (Power and Data)

Physical

ColorBlack
Material of ConstructionPlastic

Environmental

Operating Temperature Range50 to 122 F (10 to 50 C)
Storage Temperature Range32 to 148 F (0 to 65 C)
Relative Humidity10% to 80% RH, Non-Condensing

Connections

Ports1
Side A - Connector 1USB C (MALE)
Side B - Connector 17-PIN SATA (FEMALE)
Connector PlatingNickel

Standards & Compliance

CertificationsTested to FCC, RoHS, REACH

Warranty

Product Warranty Period (Worldwide)3-year limited warranty
