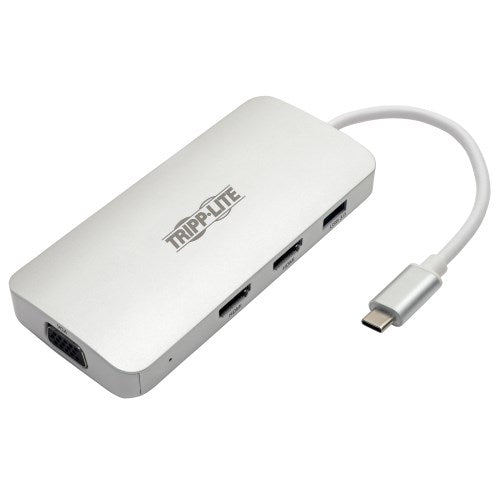

Tripp-Lite U442-DOCK12-S | USB-C Dock, Triple Display - HDMI, VGA, USB 3.2 Gen 1, USB-A Hub, 100W PD Charging
Regular price
$64.63
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
USB-C dock with PD Charging adds dual HDMI, VGA and USB ports to your laptop or tablet's USB-C or Thunderbolt 3 port.
Features
- USB-C Docking Station Turns Your Device’s USB-C or Thunderbolt 3 Port into a Workstation
- This multiport USB-C dock with PD Charging expands the potential of your Windows laptop, Chromebook, tablet or other device with a USB-C or Thunderbolt 3 port. It’s ideal for transmitting digital audio and video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging-compliant mobile device and more—all at the same time.
- Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
- By connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 1080p video and digital audio to a compatible monitor, television or projector without installing special software drivers.
- Transmits Crystal-Clear 1080p Video and Digital Audio
- The two HDMI and single VGA ports support HD video resolutions up to 1920 x 1200, including 1080p, at 60 Hz. You can connect up to three external monitors at the same time in Mirror mode, which allows you to display the same 1080p image on all of them. A DVI display may also be connected using an HDMI to DVI adapter (sold separately).
- USB Port Connects Keyboards, Thumb Drives and Other USB Peripherals
- The USB 3.2 Gen 1 port accepts USB peripherals, such as flash drives, mice, keyboards and printers. It supports fast data transfer rates up to 5 Gbps and is backward compatible with USB 2.0 and USB 1.1 devices. Note: Host must support USB OTG (On-the-Go).
- PD 2.0 Charging Port Charges Connected Device via AC Wall Charger
- The USB-C Power Delivery port supports power output up to 20V 5A (100W), which is sufficient for charging and powering the connected source device, such as an Android smartphone or Chromebook. Just connect the device’s AC wall charger to the USB-C PD port. Note: USB-C PD port does not support Quick Charge (QC).
- Built-In USB-C Cable Connects in Either Direction
- Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.
- Ready to Use Right Out of the Package
- The plug-and-play USB-C dock is specifically designed for use with Windows laptops and other notebooks, smartphones, tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no extra software to be downloaded or installed. The compact unit fits easily into a pocket, briefcase or laptop bag for connecting on the go.
Features & Specifications
| HDCP Specification | 1.3 |
|---|---|
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Driver Required | No |
| Full Duplex Support | Yes |
| Suspend Mode Support | Yes |
Specifications
Specifications
Highlights
- Mirrors 3 displays at the same time for easy multitasking and increasing productivity
- Supports HDMI and VGA resolutions up to 1920 x 1200 (including 1080p) @ 60 Hz
- Transmits audio/video signals from sources supporting USB DisplayPort Alt Mode
- Supports 20V 5A (100W) power output for fast-charging compatible mobile devices
- USB-A port transfers data from thumb drives or printers at speeds up to 5 Gbps
Applications
- Mirror your laptop or PC monitor on multiple displays to aid in multitasking and increase productivity
- Transfer files to and from a USB thumb drive or external hard drive
- Charge your notebook or laptop by connecting its wall charger to the USB-C PD Charging port
- Connect a microphone/headset to record a podcast or listen to music
Overview
| UPC Code | 37332213389.0 |
|---|---|
| Product Type | Docking Station |
| Technology | HDMI; USB; USB 3.1 (Gen 1); VGA/SVGA; PD Charging |
| Host Connector | USB C (MALE) |
Video
| Number of Monitors Supported | 3 |
|---|---|
| Video Ports | (2) HDMI (FEMALE); HD15 (FEMALE) |
| Video Ports Details | HDMI 1.4; HDCP 1.3 |
| Resolutions Supported | HDMI: 1920 x 1200 60Hz VGA: 1920 x 1200 60Hz |
| Max Supported Video Resolution | HDMI/VGA: 1920 x 1200 (1080P) @ 60Hz |
| Extended Mode | No |
Data
| Data Ports | (1) USB A (FEMALE) |
|---|---|
| Data Ports Details | (1) USB-A - USB 3.2 Gen 1 (5 Gbps) |
Input
| Built-In Cable Length (ft.) | 0.49 |
|---|---|
| Built-In Cable Length (in.) | 5.9 |
| Bus Powered | Yes |
| Product Length (in.) | 12 |
| Product Length (cm.) | 30.48 |
Battery
| Battery Charging (5V/1.5A Port) | No |
|---|
Power
| USB Power Delivery (PD) Charging Support | Yes |
|---|---|
| USB Power Delivery (PD) Charging Specification | 2.0 |
User Interface, Alerts & Controls
| LED Indicators | White (Power) |
|---|
Charging
| Total Charging Watts | 100 |
|---|---|
| Charging Ports | USB-C: 100W (20V 5A) Power Delivery (PD 3.0) |
| Charging Ports / Amps | 0.9A; 5A |
Physical
| Color | Silver |
|---|---|
| Cable Jacket Rating | VW-1 |
| Material of Construction | Aluminium |
Environmental
| Operating Temperature Range | 32 to 131 F (0 to 55 C) |
|---|---|
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
| Relative Humidity | 5% to 95% RH; Non-Condensing |
| BTUs | 2.9 BTU/Hr |
| Power Consumption (Watts) | 0.85 |
| Power Provided to Connected Device(s) | 5V 0.9A (4.5W) Output (USB A); Up to 20V 5A (100W) Input (USB C) |
Connections
| Ports | 5 |
|---|---|
| Side A - Connector 1 | USB C (MALE) |
| Side B - Connector 1 | HD15 (FEMALE); (2) HDMI (FEMALE) |
| Side B - Connector 2 | USB C (FEMALE) |
| Side B - Connector 3 | USB 3.0 A (FEMALE) |
| Connector Plating | Nickel |
