Brand: Tripp-Lite
|
SKU:
9810831
Regular price
$32.32
Unit price
Description
Description

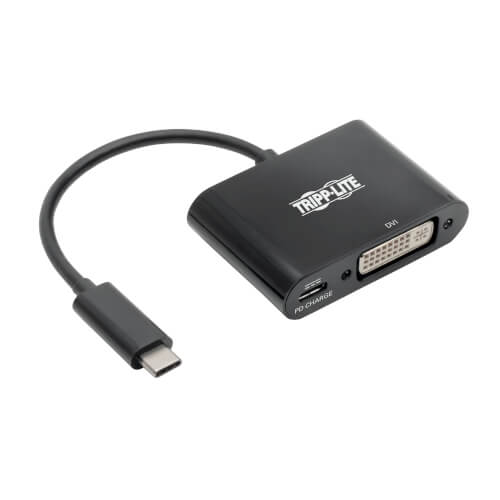

USB-C adapter adds DVI and USB-C PD ports to your laptop, MacBook, Chromebook or other compatible device.
Features
- USB to DVI Adapter Connects to Your Device’s USB-C or Thunderbolt 3 Port
- This USB-C adapter helps you transmit video from your tablet, laptop, Chromebook, MacBook, smartphone or PC to a DVI-enabled television, monitor or projector. It’s ideal for transmitting 1080p video to a large display, as well as powering and charging a PD Charging-compliant mobile device.
- Supports USB DisplayPort Alternate Mode for Transmitting Video Signals
- With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.
- Transmits Crystal-Clear 1080p Video to a DVI Display
- To send high-definition video to a DVI television, projector or monitor, connect the DVI port to the display using a DVI cable (sold separately). The DVI port supports HD video resolutions up to 1920 x 1080 (1080p) at 60 Hz.
- Charges the Connected Laptop, Smartphone or Other Device
- The USB-C Power Delivery (PD) port provides power and charging to the PD Charging-compliant device (such as a MacBook, Chromebook or Android smartphone) the adapter is connected to. Connect the device’s AC wall charger to the USB-C PD port, which supports power input up to 60W.
- Note: USB-C PD port does not support Quick Charge (QC).
- Built-In USB-C Cable Connects in Either Direction
- Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.
- Ready to Use Right Out of the Package
- The plug-and-play USB to DVI adapter requires no software, drivers or external power. It’s smaller than a credit card, making it easy to carry in a pocket, briefcase or laptop bag for connecting on the go.
- 3-Year Warranty
- The U444-06N-DB-C is backed by a 3-year warranty, ensuring reliability and performance.
Features & Specifications
| Displayport Specification | 1.2 |
|---|---|
| HDCP Specification | 1.2 |
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Driver Required | No |
Specifications
Specifications
Highlights
- Transmits video signals from sources supporting USB DisplayPort Alt Mode
- Delivers HD picture quality at resolutions up to 1920 x 1080 (1080p) @ 60 Hz
- Supports USB 3.1 Gen 1 speeds up to 5 Gbps to ensure fast data transfers
- USB-C PD charging port supports power input up to 20V 3A (60W)
- Easy installation with plug-and-play operation—no software required
Applications
- Play 1080p video from your laptop or PC on a DVI display
- Give a video presentation at a meeting, training session or conference
- Charge your notebook or laptop by connecting its wall charger to the USB-C PD Charging port
- Multitask in two or more applications on multiple displays
- Add a second monitor and make it your primary monitor
- Edit large documents on two different monitors
Overview
| UPC Code | 37332210715.0 |
|---|---|
| Technology | USB 3.1 (Gen 1); DVI; USB; PD Charging |
Video
| Max Supported Video Resolution | DVI: 1920 X 1080 (1080P) @ 60HZ |
|---|
Input
| Bus Powered | Yes |
|---|---|
| Product Length (in.) | 6 |
| Product Length (cm.) | 15.24 |
| Product Length (ft.) | 0.5 |
| Product Length (m.) | 0.15 |
Battery
| Battery Charging (5V/1.5A Port) | No |
|---|
Power
| USB Power Delivery (PD) Charging Support | Yes |
|---|---|
| USB Power Delivery (PD) Charging Specification | 2.0 |
Charging
| Total Charging Watts | 60 |
|---|---|
| Charging Ports / Amps | 3A / 2A / 1.5A |
Physical
| Color | Black |
|---|---|
| Cable Jacket Rating | VW-1 |
| Material of Construction | PVC, ABS |
| Shipping Dimensions (hwd / in.) | 0.79 x 4.60 x 3.90 |
| Shipping Weight (lbs.) | 0.10 |
| Unit Dimensions (hwd / in.) | 0.55 x 2.3 x 1.6 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.07 |
Environmental
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
|---|---|
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
| BTUs | 2.1 BTU/Hr |
| Power Consumption (Watts) | 0.6 |
| Operating Humidity Range | 10% to 85% RH; Non-Condensing |
| Storage Humidity Range | 5% to 90% RH; Non-Condensing |
| Power Provided to Connected Device(s) | Up to 20V 3A (60W) Input (USB-C) |
Connections
| Ports | 2 |
|---|---|
| Side A - Connector 1 | USB C (MALE) |
| Side B - Connector 1 | DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK) |
Standards & Compliance
| Certifications | Tested to CE; FCC; RoHS; REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
