Brand: Tripp-Lite | SKU: 932002

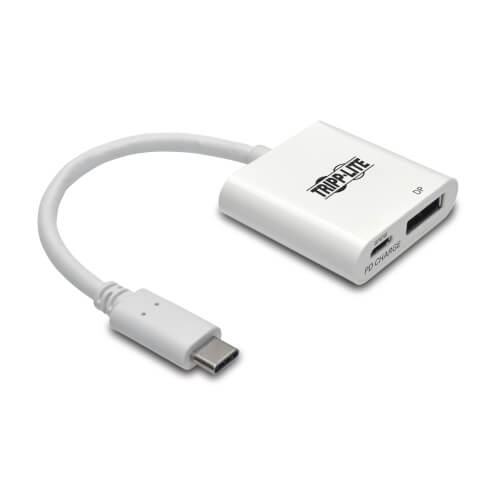

Tripp-Lite U444-06N-DP-C | USB-C to Displayport 4K 60Hz Adapter with PD Charging

$24.81

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Adds DisplayPort and USB-C PD charging ports to the USB-C or Thunderbolt 3 port on your tablet, laptop, notebook, MacBook, Chromebook, smartphone or PC.

Features

Turn Your Device's USB-C Port into a Multiport Workstation
Ideal for transmitting audio/video to a large display and powering and charging a PD Charging-compliant mobile device simultaneously
Plug-and-play operation with no software, drivers or external power required
Half the footprint of a credit card for easy carrying in a pocket, purse or laptop bag
Transmit Crystal-Clear 4K Video and Digital Audio to DP Display
Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
Supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
Extends video from your primary display to another
Duplicates the same video on 2 displays
Converts a secondary display to your primary display
Charge a Connected Device
USB-C PD port connects to wall charger to power and charge the connected PD Charging-compliant USB-C/Thunderbolt 3 device
Supports power input up to 20V 3A (60W)
Note: USB-C PD port does not support Quick Charge (QC).
Built-In Cable with Reversible USB-C Connector
Fumble-free reversible USB-C plug connects in either direction for quick connection every time

Features & Specifications

Displayport Specification	1.2
HDCP Specification	2.2
USB Specification	USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
Driver Required	No

Specifications

Highlights

Supports USB DisplayPort Alternate Mode for transmitting audio/video
Supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
USB-C PD charging port supports power input up to 20V 3A (60W)
Reversible USB-C plug connects in either direction
Plug-and-play operation with no software or drivers required

System Requirements

Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
Display device with DisplayPort input (DP port)

Overview

UPC Code	37332193735.0
Technology	DisplayPort; USB; USB 3.0 (SuperSpeed); USB 3.1 (Gen 1); PD Charging

Video

Max Supported Video Resolution	DP: 3840 X 2160 (4K X 2K) @ 60HZ
HDR Support	Yes

Input

Bus Powered	Yes
Product Length (in.)	6
Product Length (cm.)	15.24
Product Length (ft.)	0.5
Product Length (m.)	0.15

Battery

Battery Charging (5V/1.5A Port)	No

Power

USB Power Delivery (PD) Charging Support	Yes
USB Power Delivery (PD) Charging Specification	2.0

Charging

Total Charging Watts	60
Charging Ports / Amps	3A

Physical

Color	White
Cable Jacket Rating	VW-1
Material of Construction	PVC, ABS
Shipping Dimensions (hwd / in.)	0.79 x 4.60 x 3.90
Shipping Weight (lbs.)	0.20
Unit Dimensions (hwd / in.)	0.45 x 1.9 x 1.6
Unit Packaging Type	Box
Unit Weight (lbs.)	0.06

Environmental

Operating Temperature Range	32 to 113 F (0 to 45 C)
Storage Temperature Range	14 to 158 F (-10 to 70 C)
BTUs	1.9 BTU/Hr
Power Consumption (Watts)	0.55
Operating Humidity Range	10% to 85% RH; Non-Condensing
Storage Humidity Range	5% to 90% RH; Non-Condensing
Power Provided to Connected Device(s)	Up to 20V 3A (60W) Input (USB-C)

Connections

Ports	2
Side A - Connector 1	USB C (MALE)
Side B - Connector 1	DISPLAYPORT (FEMALE)

Standards & Compliance

Certifications	Tested to CE; FCC; RoHS; REACH

Warranty

Product Warranty Period (Worldwide)	3-year limited warranty
