Brand: Tripp-Lite
|
SKU:
814947

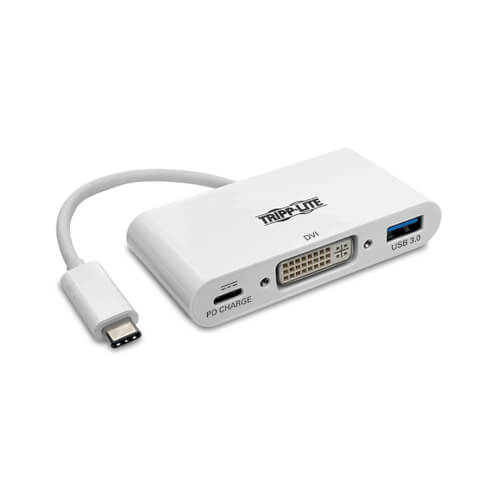

Tripp-Lite U444-06N-DU-C | USB-C to DVI Adapter with USB-A Port and PD Charging, White
Regular price
$32.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Adds DVI, USB-A and USB-C PD charging ports to the USB-C or Thunderbolt 3 port on your tablet, laptop, notebook, MacBook, Chromebook, smartphone or PC.
Features
- Turn Your Device’s USB-C Port into a Multiport Workstation
- Ideal for transmitting video to a large display, adding a USB peripheral, and powering and charging a PD Charging-compliant mobile device simultaneously
- Plug-and-play operation with no software, drivers or external power required
- About the size of a credit card for easy carrying in a pocket, purse or laptop bag
- Transmit Crystal-Clear 1080p Video to DVI Display
- Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
- Supports DVI single-link video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
- Supports DVI digital transfer rates up to 6.75 Gbps (2.25 Gbps per channel)
- Extends video from your primary display to another
- Duplicates the same video on 2 displays
- Converts a secondary display to your primary display
- Connect a USB Peripheral
- USB-A port accepts flash drives, mice, keyboards, printers and other USB peripherals
- Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
- Backward compatible with USB 2.0 and USB 1.1
- BC 1.2-compliant port provides up to 1.5A of fast-charging power to mobile devices
- Note: Host must support USB OTG (On-the-Go)
- Charge a Connected Device
- USB-C PD port connects to wall charger to power and charge the connected PD Charging-compliant USB-C/Thunderbolt 3 device
- Supports power input up to 20V 3A (60W)
- Note: USB-C PD port does not support Quick Charge (QC).
- Built-In Cable with Reversible USB-C Connector
- Fumble-free reversible USB-C plug connects in either direction for quick connection every time
Features & Specifications
| HDCP Specification | 1.3 |
|---|---|
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Driver Required | No |
Specifications
Specifications
Highlights
- Supports USB DisplayPort Alternate Mode for transmitting video
- Supports DVI video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
- PD Charging port supports power input up to 20V 3A
- BC 1.2-compliant USB-A port provides up to 1.5A of fast-charging power
- Reversible USB-C plug connects in either direction
- Plug-and-play operation with no software or drivers required
System Requirements
- Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
- Display device with DVI input (DVI port)
Overview
| UPC Code | 37332193902.0 |
|---|---|
| Technology | USB; USB 3.1 (Gen 1); DVI; PD Charging |
Video
| Max Supported Video Resolution | DVI: 1920 X 1080 (1080P) @ 60HZ |
|---|
Input
| Bus Powered | Yes |
|---|---|
| Product Length (in.) | 6 |
| Product Length (cm.) | 15.24 |
| Product Length (ft.) | 0.5 |
| Product Length (m.) | 0.15 |
Battery
| Battery Charging (5V/1.5A Port) | Yes |
|---|
Power
| USB Power Delivery (PD) Charging Support | Yes |
|---|---|
| USB Power Delivery (PD) Charging Specification | 2.0 |
Charging
| Total Charging Watts | 60 |
|---|---|
| Charging Ports / Amps | 1.5A; 3A |
Physical
| Color | White |
|---|---|
| Cable Jacket Rating | VW-1 |
| Cable Outer Diameter (OD) | 3.9mm |
| Wire Gauge (AWG) | 34/28 |
| Material of Construction | Plastic |
| Shipping Dimensions (hwd / in.) | 0.90 x 4.40 x 5.60 |
| Shipping Weight (lbs.) | 0.40 |
| Unit Dimensions (hwd / in.) | 0.57 x 3.1 x 1.6 |
Environmental
| Operating Temperature Range | 32 to 113 °F (0 to 45 °C) |
|---|---|
| Storage Temperature Range | 14 to 158 °F (-10 to 70 °C) |
| BTUs | 4.1 BTU/Hr |
| Power Consumption (Watts) | 1.2 |
| Operating Humidity Range | 10% to 85% RH; Non-Condensing |
| Storage Humidity Range | 5% to 90% RH; Non-Condensing |
| Power Provided to Connected Device(s) | 5V 0.9A (4.5W) Output (USB-A); Up to 20V 3A (60W) Input (USB-C) |
Connections
| Ports | 3 |
|---|---|
| Side A - Connector 1 | USB C (MALE) |
| Side B - Connector 1 | DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK) |
Standards & Compliance
| Certifications | CE; FCC; RoHS; REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
Documents and Downloads
Documents and Downloads
- Owner's Manual for USB 3.1 Gen 1 USB Type-C to DVI Adapters (Multi-Language)
- Owner's Manual for USB 3.1 Gen 1 USB Type-C to DVI Adapters (English)
- USB Type-C Solutions Brochure (English)
- Tripp Lite USB-C Docking Stations & Multiport Adapters Quick Reference Guide (English)
- USB: Port Types and Speeds Compared
- Download images for this product
