Brand: Tripp-Lite | SKU: 932005

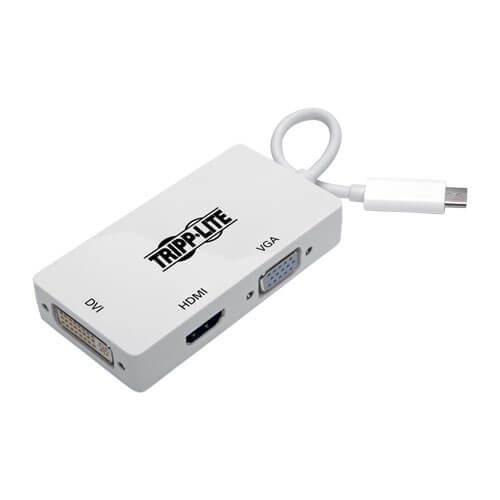

Tripp-Lite U444-06N-HDV4K | USB-C Multiport Adapter (M/3xF) - 4K HDMI, DVI, VGA, HDCP, White

$33.27

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

All-in-one converter/adapter connects a USB-C or Thunderbolt 3 port to an HDMI, DVI or VGA display without the need to carry separate adapters. Designed for MacBook, Google Chromebook Pixel and other USB-C computers.

Features

Connects Your USB-C or Thunderbolt Laptop or Tablet to a VGA, DVI or HDMI Display
Supports USB DisplayPort Alternate Mode for transmitting A/V signal via USB-C or Thunderbolt 3 port
Recommended for trade shows, classrooms, lecture halls and other presentation venues
Provides Crystal-Clear, Colorful Video Images
HDMI port supports video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
DVI port supports video resolutions up to 1920 x 1080 @ 60 Hz
HD15 port supports video resolutions up to 1920 x 1200 @ 60 Hz
Supports 36-bit Deep Color (12 bits per channel)
Up-To-Date Technical Features
HDMI port supports 7.1-channel surround sound audio
Supports 300 MHz/3 Gbps per channel bandwidth (9 Gbps total)
HDCP 1.4-compatible
Plug-and-Play Convenience
No software, drivers or external power supply required
Low-profile design for easy carrying in laptop bag or briefcase

Features & Specifications

HDCP Specification	1.4
USB Specification	USB 3.1 Gen 1 (up to 5 Gbps)
Driver Required	No

Specifications

Highlights

Separate DVI, HD15 and HDMI female connectors
HDMI port supports 4K x 2K video resolutions @ 30 Hz
Supports USB DisplayPort Alternate Mode
Plug and play—no software, drivers or power supply needed
Low-profile design for easy carrying in laptop bag or briefcase

System Requirements

Source device with USB-C or Thunderbolt 3 output that supports USB DisplayPort Alternate Mode
Display device with HDMI, DVI or VGA input

Overview

UPC Code	37332203571.0
Product Type	Multiport Adapter
Technology	DVI; HDMI; USB 3.0 (SuperSpeed); USB 3.1 (Gen 1); VGA/SVGA
Host Connector	USB C (MALE)

Video

Number of Monitors Supported	1
Video Ports	HDMI (FEMALE); DVI-I DUAL LINK (FEMALE); HD15 (FEMALE)
Video Ports Details	HDMI 1.4; HDCP 1.4
Resolutions Supported	HDMI: 4K 30Hz (3840 x 2160) DVI: 1080P 60Hz (1920 x 1080) VGA: 1920 x 1200 60Hz
Max Supported Video Resolution	HDMI: 3840 X 2160 (4K X 2K) @ 30HZ, VGA: 1920 x 1200 (1080p) @ 60Hz, DVI: 1920 x 1080 (1080p) @ 60Hz
Extended Mode	No

Input

Bus Powered	Yes
Product Length (in.)	6
Product Length (cm.)	15.24
Product Length (ft.)	0.5
Product Length (m.)	0.15

Battery

Battery Charging (5V/1.5A Port)	No

Physical

Color	White
Cable Jacket Rating	VW-1

Environmental

Operating Temperature Range	32 to 113 F (0 to 45 C)
Storage Temperature Range	14 to 158 F (-10 to 70 C)
BTUs	6.1 BTU/Hr

Connections

Ports	3
Side A - Connector 1	USB C (MALE)
Side B - Connector 1	DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
Side B - Connector 2	HD15 (FEMALE)
Side B - Connector 3	HDMI (FEMALE)
Connector Plating	Nickel

Standards & Compliance

Certifications	Tested to CE, FCC, RoHS, REACH

Warranty

Product Warranty Period (Worldwide)	3-year limited warranty

Documents and Downloads
