Brand: Tripp-Lite
|
SKU:
9810848

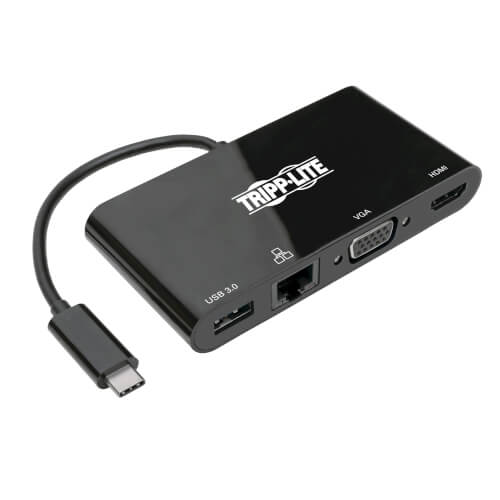

Tripp-Lite U444-06N-HV4GUB | USB-C Multiport Adapter - 4K HDMI, VGA, USB-A, GbE, HDCP, Black
Regular price
$86.60
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
USB-C adapter connects an HDMI or VGA monitor, USB peripheral and wired Gigabit Ethernet network to a USB-C or Thunderbolt 3 device.
Features
- USB 3.1 Type-C Adapter Connects an HDMI or VGA Monitor to Your USB-C or Thunderbolt 3 Device
- This USB 3.1 Type-C adapter helps you transmit digital audio and 4K video from your tablet, laptop, Chromebook, MacBook, smartphone or PC to an HDMI-enabled television, monitor or projector. It’s an ideal tool for giving video presentations in conference rooms and classrooms, editing multiple documents on a larger screen, or streaming video for digital signage in crystal-clear 4K.
- Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
- By connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers.
- Transmits Crystal-Clear 4K HDMI Video and Digital Audio
- To send digital audio and Ultra High Definition video to a 4K-ready HDMI television, projector or monitor, connect the HDMI port to the display using an HDMI cable (such as Tripp Lite’s P568-Series, sold separately). The USB to HDMI 4K adapter supports video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz with 7.1-channel surround sound. It’s backward compatible with 1080p displays, allowing you to use it with older equipment. The VGA port (Tripp Lite P502-Series VGA cables sold separately) supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz.
- USB Port Connects Peripherals and Transfers Data at Fast USB 3.1 Gen 1 Speeds
- The USB-A 3.0 port accepts USB peripherals, such as a flash drive, mouse, keyboard or printer. It transfers data at speeds up to 5 Gbps, which is 10 times faster than USB 2.0. It is backward compatible with previous USB generations, so you can continue using older peripherals while getting high-speed performance from new devices.
- Note: Host must support USB OTG (On-the-Go).
- Accesses a Wired Gigabit Ethernet Network
- The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.
- Built-In USB-C Cable Connects in Either Direction
- Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.
- Ready to Use Right Out of the Package
- The plug-and-play USB Type-C adapter is specifically designed for the MacBook, Google Chromebook Pixel and other laptops, tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no software, drivers or external power.
Specifications
Specifications
Highlights
- Transmits video signals from sources supporting USB-C DisplayPort Alt Mode
- HDMI port delivers UHD quality at resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
- Connects you to a wired Gigabit Ethernet network when Wi-Fi is weak or unavailable
- Supports USB 3.1 Gen 1 speeds up to 5 Gbps to ensure fast data transfers
- Reversible USB-C plug connects in either direction for immediate no-fuss use
Applications
- Play video from your MacBook or Chromebook on a large-screen HDTV
- Give a video presentation at a meeting, training session or conference
- Write and edit multiple documents on a bigger monitor
- Stream 4K video for digital signage at a trade show
- Connect a USB peripheral, such as an external hard drive, printer or hub
- Upload data from your notebook or download data from the Ethernet at true 10/100/1000 Mbps Ethernet speeds
Overview
| UPC Code | 37332210487.0 |
|---|---|
| Product Type | Multiport Adapter |
| Technology | Cat5/5e; Cat6; HDMI; USB; USB 3.1 (Gen 1); PD Charging |
| Host Connector | USB C (MALE) |
Video
| Number of Monitors Supported | 1 |
|---|---|
| Video Ports | HDMI (FEMALE); HD15 (FEMALE) |
| Video Ports Details | HDMI 1.4; HDCP 1.4 |
| Resolutions Supported | HDMI: 4K 30Hz (3840 x 2160) VGA: 1920 x 1200 60Hz |
| Max Supported Video Resolution | HDMI: 3840 X 2160 (4K X 2K) @ 30HZ; VGA: 1920 X 1200 (1080P) @ 60HZ |
| Extended Mode | No |
Audio
| Audio Specification | 7.1 channel surround sound via HDMI port |
|---|
Data
| Data Ports | USB A (FEMALE) |
|---|---|
| Data Ports Details | USB-A - USB 3.2 Gen 1 (5 Gbps) |
Network
| Network Ports | RJ45 (FEMALE) |
|---|
Input
| Bus Powered | Yes |
|---|---|
| Product Length (in.) | 6 |
| Product Length (cm.) | 15.24 |
Battery
| Battery Charging (5V/1.5A Port) | No |
|---|
Power
| USB Power Delivery (PD) Charging Support | Yes |
|---|
User Interface, Alerts & Controls
| LED Indicators | Green (Connection), Orange (Activity) |
|---|
Physical
| Color | Black |
|---|---|
| Cable Jacket Rating | VW-1 |
| Material of Construction | PVC; ABS |
| Shipping Dimensions (hwd / in.) | 0.91 x 5.50 x 3.90 |
| Shipping Weight (lbs.) | 0.1 |
| Unit Dimensions (hwd / in.) | 0.61 x 4.06 x 2.05 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.1 |
Environmental
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
|---|---|
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
| BTUs | 9.6 BTU/Hr |
| Power Consumption (Watts) | 2.8 |
| Operating Humidity Range | 10% to 85% RH; Non-Condensing |
| Storage Humidity Range | 5% to 90% RH; Non-Condensing |
Communications
| Network Speed | Gigabit Ethernet (10/100/1000) |
|---|---|
| IEEE Standards Supported | 802.3; 802.3u; 802.3az; 802.3x |
Documents and Downloads
Documents and Downloads
- Owner's Manual for U444-06N-HV4GU & U444-06N-HV4GUB (English)
- Owner's Manual for U444-06N-HV4GU & U444-06N-HV4GUB (Multi-language))
- Tripp Lite USB-C Docking Stations & Multiport Adapters Quick Reference Guide (English)
- EC Declaration
- USB Charging
- USB: Port Types and Speeds Compared
- Download images for this product
