Brand: Tripp-Lite
|
SKU:
814952

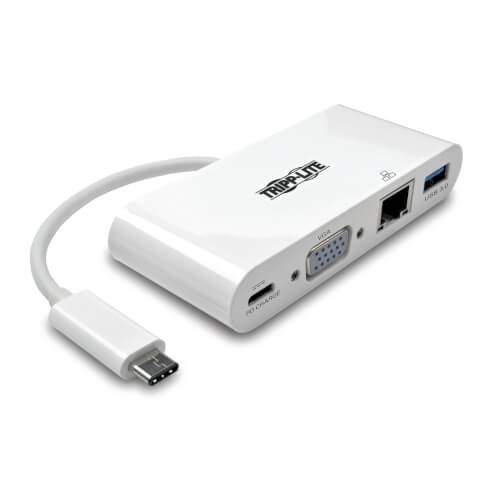

Tripp-Lite U444-06N-VGU-C | USB-C Multiport Adapter, VGA, USB-A Port, Gbe and PD Charging, White
Regular price
$76.79
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Mini docking station adds VGA, USB-A, USB-C PD charging and Gigabit Ethernet ports to the USB-C or Thunderbolt 3 port on your tablet, laptop, notebook, MacBook, Chromebook, smartphone or PC.
Features
- Mini Docking Station Turns Your Device’s USB-C Port into a Multiport Workstation
- Ideal for transmitting video to a large display, adding a USB peripheral, powering and charging a PD Charging-compliant mobile device, and connecting to a Gigabit Ethernet network simultaneously
- Plug-and-play operation with no software, drivers or external power required
- About the size of a credit card for easy carrying in a pocket, purse or laptop bag
- Transmit Crystal-Clear 1080p Video to VGA Display
- Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
- Supports HD video resolutions up to 1920 x 1200 (1080p) @ 60 Hz
- Extends video from your primary display to another
- Duplicates the same video on 2 displays
- Converts a secondary display to your primary display
- Connect a USB Peripheral
- USB-A port accepts flash drives, mice, keyboards, printers and other USB peripherals
- Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
- Backward compatible with USB 2.0 and USB 1.1
- BC 1.2-compliant port provides up to 1.5A of fast-charging power to mobile devices.
- Note: Host must support USB OTG (On-the-Go)
- Charge a Connected Device
- USB-C PD port connects to wall charger to power and charge the connected PD Charging-compliant USB-C/Thunderbolt 3 device
- Supports power input up to 20V 3A (60W)
- Note: USB-C PD port does not support Quick Charge (QC).
- Access a Wired Gigabit Ethernet Network
- RJ45 port supports true 10/100/1000 Mbps network speeds
- Recommended for a faster wired network connection or getting online when no Wi-Fi is available
- Built-In Cable with Reversible USB-C Connector
- Fumble-free reversible USB-C plug connects in either direction for quick connection every time
Specifications
Specifications
Highlights
- Supports USB DisplayPort Alternate Mode for transmitting video
- Supports HD video resolutions up to 1920 x 1200 (1080p) @ 60 Hz
- Supports true 10/100/1000 Mbps Ethernet network speeds
- USB-C PD charging port supports power input up to 20V 3A (60W)
- USB-A port provides up to 5V/1.5A (7.5W) of fast-charging power
- Plug-and-play operation with no software or drivers required
System Requirements
- Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
- Display device with VGA input (VGA port)
Overview
| UPC Code | 37332193728.0 |
|---|---|
| Product Type | Multiport Adapter |
| Technology | Cat5/5e; Cat6; USB 3.1 (Gen 1); USB; VGA/SVGA; PD Charging |
| Host Connector | USB C (MALE) |
Video
| Number of Monitors Supported | 1 |
|---|---|
| Video Ports | HD15 (FEMALE) |
| Resolutions Supported | VGA: 1920 x 1200 60Hz |
| Max Supported Video Resolution | VGA: 1920 X 1200 (1080P) @ 60HZ |
| Extended Mode | No |
| Mirror Mode | No |
Data
| Data Ports | USB A (FEMALE) |
|---|---|
| Data Ports Details | USB-A - USB 3.2 Gen 1 (5 Gbps) |
Network
| Network Ports | RJ45 (FEMALE) |
|---|
Input
| Bus Powered | Yes |
|---|---|
| Product Length (in.) | 6 |
Battery
| Battery Charging (5V/1.5A Port) | Yes |
|---|
Power
| USB Power Delivery (PD) Charging Support | Yes |
|---|---|
| USB Power Delivery (PD) Charging Specification | 2.0 |
Charging
| Total Charging Watts | 60 |
|---|---|
| Charging Ports | USB-C: 60W (20V 3A) Power Delivery (PD 2.0); USB-A: 5V 1.5A (7.5W) |
| Charging Ports / Amps | 1.5A; 3A |
Physical
| Color | White |
|---|---|
| Cable Jacket Rating | VW-1 |
| Material of Construction | PVC, ABS |
Environmental
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
|---|---|
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
| BTUs | 7.6 BTU/Hr |
| Power Consumption (Watts) | 2.2 |
| Operating Humidity Range | 10% to 85% RH; Non-Condensing |
| Storage Humidity Range | 5% to 90% RH; Non-Condensing |
| Power Provided to Connected Device(s) | 5V 0.9A (4.5W) Output (USB-A); Up to 20V 3A (60W) Input (USB-C) |
Communications
| Network Speed | Gigabit Ethernet (10/100/1000) |
|---|---|
| IEEE Standards Supported | 802.3; 802.3u; 802.3az; 802.3x |
Connections
| Ports | 4 |
|---|---|
| Side A - Connector 1 | USB C (MALE) |
| Side B - Connector 1 | HD15 (FEMALE) |
| Side B - Connector 2 | USB 3.0 A (FEMALE) |
| Side B - Connector 3 | RJ45 (FEMALE) |
| Side B - Connector 4 | USB Type-C (FEMALE) |
| Connector Plating | Nickel |
Documents and Downloads
Documents and Downloads
- Owner's Manual for USB 3.1 Gen 1 USB-C to VGA Adapter (English)
- Owner's Manual for USB 3.1 Gen 1 USB-C to VGA Adapter (Multi-language)
- USB Type-C Solutions Brochure (English)
- Tripp Lite USB-C Docking Stations & Multiport Adapters Quick Reference Guide (English)
- EC Declaration
- Download images for this product
