Brand: Tripp-Lite
|
SKU:
932119

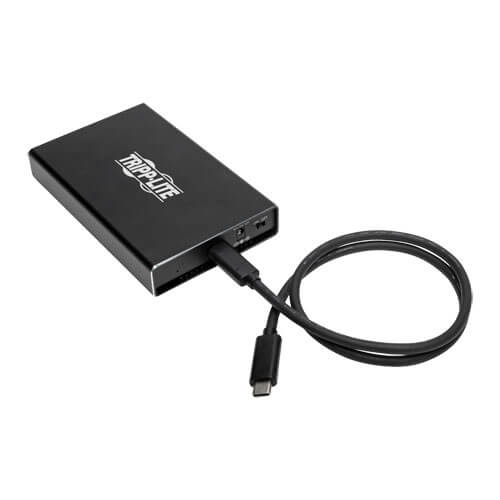

Tripp-Lite U457-025-SATAG2 | USB 3.1 Gen 2 (10 Gbps) SATA SSD/HDD to USB-C Enclosure Adapter with UASP Support, Metal Housing, Thunderbolt 3 Compatible
Regular price
$48.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite U457-025-SATAG2 | USB 3.1 Gen 2 (10 Gbps) SATA SSD/HDD t...
Regular price
$48.31
Unit price
Description
Description
Slim aluminum enclosure connects a SATA SSD or HDD to your computer’s USB-C or Thunderbolt 3
port and performs fast file transfers at USB 3.1 Gen 2 speeds. UASP-enabled for 70% more speed with UASP host controller.
Features
- Connects an Internal SATA Drive to Your Computer’s USB-C or
- Thunderbolt 3
- Port
- Recommended for storing and sharing large photo, music and video files
- Supports USB 3.1 Gen 2 data transfer rates up to 10 Gbps
- Features UASP for performance up to 70% faster when connected to UASP-enabled host controller
- Compatible with all USB-enabled operating systems
- Compatible with 2.5 in. SATA Drives Up to 2 TB
- Accepts SATA III, II and I SSDs and HDDs
- Will support higher-capacity drives when available
- Backward compatible with previous USB generations
- White LED indicates drive data is being read or written
- Designed for Immediate Use
- Plug and play—no software, drivers or external power supply needed
- Durable slim aluminum housing perfectly sized for backpack or laptop bag
- Ventilated housing keeps interior cool and helps prevent data from being corrupted
- USB 3.1 Gen 2 Type-C cable included
- Power Provided via USB Connection
- Accepts user-supplied external power supply in case additional power is needed
- Compatible with 5V 2A power supplies that use 3.5 x 1.3 x 8 mm output plug with positive tip and negative sleeve
Features & Specifications
| USB Specification | USB 3.1 Gen 2 (up to 10 Gbps) |
|---|---|
| Driver Required | No |
| UASP Support | Yes |
Specifications
Specifications
Highlights
- Compatible with 2.5 in. SATA SSDs and HDDs up to 2 TB
- Supports USB 3.1 Gen 2 data transfer rates up to 10 Gbps
- Works up to 70% faster when connected to UASP host controller
- Vented aluminum housing keeps drive cool to prevent data corruption
- Plug-and-play—no software, drivers or external power supply needed
System Requirements
- Computer with USB-C or Thunderbolt 3port (USB 3.1 Gen 2 port required for maximum speed)
- 2.5 in. SATA SSD or HDD (9.5 mm max height)
- UASP-enabled host controller required for UASP performance
- Compatible with all USB-enabled operating systems
Overview
| UPC Code | 37332202444.0 |
|---|---|
| Drives Supported | 2.5" HDD and SSD |
| Technology | SATA/eSATA; USB; USB 3.1 (Gen 2) |
Input
| Voltage Compatibility (VAC) | 100; 110; 120; 127; 200; 208; 220; 230; 240 |
|---|---|
| Bus Powered | Yes |
Power
| External Power Supply Input Specs (V / Hz / A) | 100-240 / 50/60Hz / 0.4A |
|---|---|
| External Power Supply Output Specs (V / A) | 5V / 2A |
| External Power Supply DC Barrel Connector Specs | OD: 3.5 x 1.3 x 8mm, Positive Pin, Negative Sleeve |
User Interface, Alerts & Controls
| LED Indicators | White (Power, Data) |
|---|
Physical
| Color | Black |
|---|---|
| Material of Construction | Aluminum |
Environmental
| Operating Temperature Range | 50 to 122 F (10 to 50 C) |
|---|---|
| Storage Temperature Range | 32 to 149 F (0 to 65 C) |
| Relative Humidity | 10% to 80% RH, Non-Condensing |
Connections
| Ports | 1 |
|---|---|
| Side A - Connector 1 | USB C (MALE) |
| Side B - Connector 1 | 22 PIN SATA + POWER (FEMALE) |
| Connector Plating | Nickel |
| Contact Plating | Nickel |
Standards & Compliance
| Certifications | Tested to CE, FCC, ROHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
