Brand: Tripp-Lite | SKU: 9810869

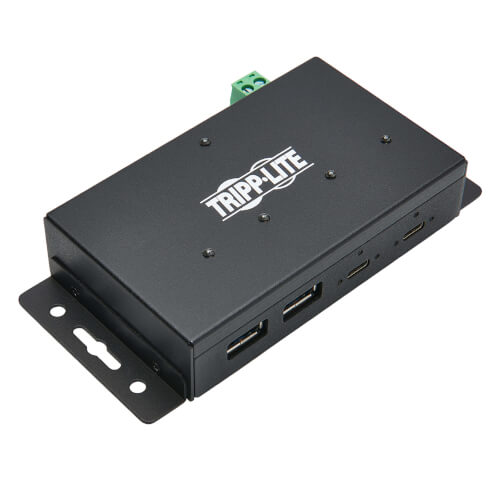

Tripp-Lite U460-2A2C-IND | Industrial-Grade 4-Port USB Hub - USB 3.1 Gen 2, 10 Gbps, 2 USB-A & 2 USB-C Ports, 15 kV ESD Immunity

Regular price $198.35
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

Rugged industrial hub adds 2 USB-C and 2 USB-A ports to your computer for connecting industrial printers, sensors and other USB devices.

Features

  • Industrial-Grade USB 3.1 Gen 2 Hub Adds up to 4 USB Devices to Your Computer
  • This USB 3.1 Gen 2 hub with a heavy-duty all-metal housing connects as many as four USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host computer. The durable metal housing withstands harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses.
  • Transfers Data at Lightning-Fast USB 3.1 Gen 2 Speeds and Charges Mobile Devices
  • All four downstream USB ports transfer data at speeds up to 10 Gbps, which is twice as fast as USB 3.1 Gen 1. In addition to accepting USB peripherals, the two USB-C and two USB-A ports provide up to 0.9 amps each for charging and powering mobile devices simultaneously. Because the ports are BC 1.2-compliant, they can deliver up to 2 amps of fast-charging power to mobile devices (when connected to power).
  • USB-C Ports Help Prevent Your Devices from Becoming Disconnected
  • Equipment vibrations in industrial environments can loosen cable connections over time. This hub’s USB-C ports, including the host port, support USB cables with locking connectors that can prevent devices and peripherals from accidentally coming loose. All USB-C and USB-A ports are backward compatible with previous USB generations, so you can continue using older peripherals while getting high-speed performance from new devices.
  • Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent
  • Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This four-port hub includes ESD protection to ±15 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with ±2.5kV-per-port overcurrent protection to safeguard your connected devices against damage and data loss from power surges.
  • Reversible USB-C Cable Connects in Either Direction
  • Connect the included two-foot USB-C cable between your source device’s USB-C or Thunderbolt 3 port and the hub’s host port. The fumble-free USB-C plugs connect in either direction to ensure fast, easy connection every time.
  • Plug-and-Play Hub Offers Flexible Power and Mounting Options
  • The U460-2A2C-IND requires no software or drivers to download and install. You can power the unit by connecting the included power adapter to a standard AC outlet, or you can use the included 2-wire terminal block to draw power from a power terminal. The hub mounts easily to a wall or other flat surface using the built-in brackets and user-supplied hardware.
  • TAA-Compliant for GSA Schedule Purchases
  • The U460-2A2C-IND is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Features & Specifications

USB SpecificationUSB 3.1 Gen 2 (up to 10 Gbps)
Driver RequiredNo
UASP SupportYes

Specifications

Highlights

  • Adds barcode scanner, serial device, sensor—up to 4 devices—to your host computer
  • Supports USB 3.1 Gen 2 rates up to 10 Gbps to ensure lightning-fast data transfers
  • Rugged metal housing designed to withstand harsh warehouse and factory environments
  • ESD protection to ±15 kV cuts potential static damage to your connected peripherals
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Applications

  • Connect up to 4 USB devices and peripherals to your computer or laptop
  • Add easy-to-access USB ports to computers stored in a cabinet, behind furniture or other hard-to-reach location
  • Mount to a wall or DIN rail in a harsh environment, such as a factory, construction site, supply room or warehouse

Overview

UPC Code37332236319.0
Product TypeHub
AC AdapterInput: 100–240V; 50/60 Hz; 0.6A; Output: 5V 4A
Over Current ProtectionYes
TechnologyUSB; USB 3.0 (SuperSpeed); USB 3.1 (Gen 1); USB 3.1 (Gen 2)
Host ConnectorUSB C (MALE)

Video

Number of Monitors Supported0
Extended ModeNo
Mirror ModeNo

Data

Data Ports(2) USB A (FEMALE); (2) USB C (FEMALE)
Data Ports Details(2) USB-A - USB 3.2 Gen 2 (10 Gbps); (2) USB-C - USB 3.2 Gen 2 (10 Gbps)

Input

Voltage Compatibility (VAC)100; 110; 120; 125; 127; 200; 208; 220; 230; 240
Input Frequency0.6A
Input Current100-240V
External Power Supply Plug(s)AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America
Bus PoweredNo

Battery

Battery Charging (5V/1.5A Port)No

Power

External Power Supply Input Specs (V / Hz / A)100-240V/ 50/60HZ / 0.6A
External Power Supply Output Specs (V / A)5V 4A
External Power Supply Cord Length (ft.)3

User Interface, Alerts & Controls

LED Indicatorsx1 Power (Blue) and x4 device activity (Green)

Charging

Charging Ports / Amps(4) 2A

Physical

ColorBlack
Included Mounting AccessoriesYes
Material of ConstructionSteel

Environmental

Operating Temperature Range32 to 122 °F (0 to 50 °C)
Storage Temperature Range14 to 176 °F (-10 to 80 °C)
Relative Humidity0% to 90% RH; Non-Condensing
BTUs5.9675
Power Consumption (Watts)1.75
Power Provided to Connected Device(s)900mA
ESD Protection+/- 15 KV
EFT Protection+/- 2.5KV

Connections

Ports4
Side A - Connector 1USB C (FEMALE)
Side B - Connector 1(2) USB 3.0 A (FEMALE)
Side B - Connector 2(2) USB C (FEMALE)
Connector PlatingNickel
Contact PlatingNickel
