Description

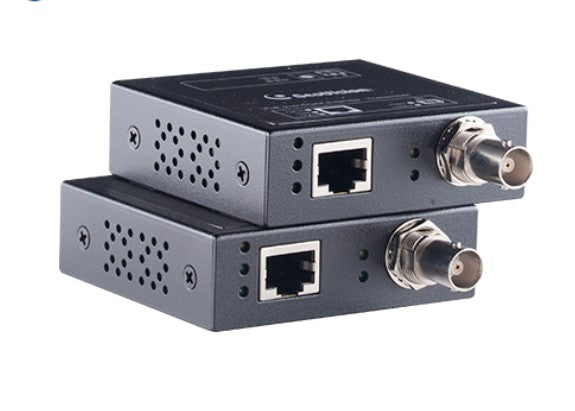

Usa Vision Systems 140-POC-0100 | PoE Over Coax Extender

This Power over Coaxial Cable Extender Transmitter / Receiver is a 1-port 10/100BaseT(X) PoE / PoE+ PD and 1-port BNC PoE over Coaxial Extender Transmitter / Receiver. It is designed to extend IP Ethernet transmission and inject power over an existing coaxial cable for distance up to 230 m / 754 ft (RG11), 180 m / 590 ft (RG6), or 100 m / 328 ft (RG59) into PoE IP camera.

Usa Vision Systems - 140-POC-0100 - Features

1-Port 10/100BaseT(X), PoE over Coaxial Extender
IEEE 802.3at compliant
Extension up to 230 m (754 ft) via RG11 (7C), 180 m (590 ft) via RG6 (5C2V), and 100 m (328 ft) via RG59 (4V2C)
Pocket size with rigid metal case
Smart Plug and Play
Adapt to buildings with existing Coaxial Cables and power source
Power source free at remote site
Optional DC inputs to enhance the output PoE at Receiver site
Compatible with GV-IP Cameras

Specifications

Usa Vision Systems - 140-POC-0100 - Specifications

Number of Ports	1?Port, 10/100BaseT(X), PoE over Coaxial Extender
Connectors	Ethernet: 10/100BaseT(X), RJ45 Connector, Auto?MDI/MDI?X BNC Connector
Dimensions (H x W x D)	22 x 71 x 66 mm
Weight	135 g (0.3 lb)
Operating Temperature	0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature	?20°C ~ 85°C (?4°F ~ 185°F)
Humidity	10 to 90% RH (non?condensing)

Documents and Downloads

Usa Vision Systems 140-POC-0100 Data Sheet
