USA Vision Systems 55-IB00025-0000 | 1 to 25 Iobox Connections

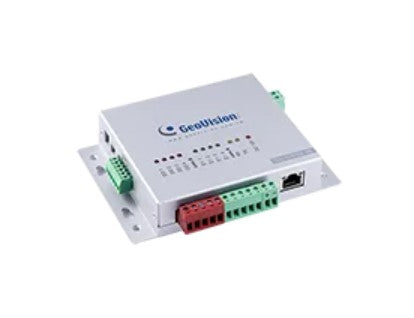

The GV-I/O Box 4E is a small yet capable device that provides four inputs and four relay outputs. It provides both DC and AC output voltages, as well as a PoE, a TCP/IP port and an RS-485 port for PC connection. The GV-I/O Box 4E also supports the GV-IoT app for remote management via mobile devices.
USA Vision Systems - 55-IB00025-0000 - Features
- 4 inputs and 4 outputs
- TCP/IP and RS-485 ports for PC connection
- DC 12V, 3A / PoE+ (IEEE 802.3at)
- Up to 9 GV-I/O Box 4 / 8 / 16 devices can be linked together
- Up to 16 connections from GeoVision software are allowed to control one GV-I/O Box
- GV?IoT mobile app for remote management
Specifications
Specifications
USA Vision Systems - 55-IB00025-0000 - Specifications
| Manufacturer Part Number | 55-IB00025-0000 |
|---|---|
| Brand Name | USA Vision Systems |
| Item Description | 1 to 25 Iobox Connections |
| Regulatory | CE, FCC, RoHS |
| Ingress Protection | IP54 |
| Weight | 235 g / 0.52 lb (case included) |
| Dimensions | 111.4 x 27.5 x 101 mm / 4.39 x 1.08 x 3.98 in (case included) |
| Operating Humidity | 5% ~ 95% RH (Non-Condensing) |
| Operating Temperature | 0°C ~ 65°C / 32°F ~ 149°F |
