Description

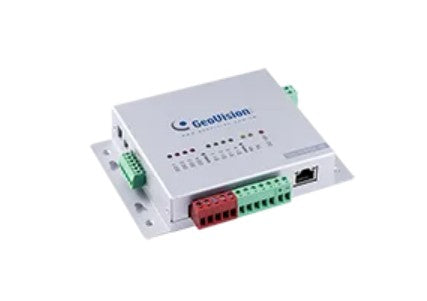

USA Vision Systems 55-IB00030-0000 | 1–30 Channel IO Box (I/O Expansion Module)

The GV-I/O Box 4E is a small yet capable device that provides four inputs and four relay outputs. It provides both DC and AC output voltages, as well as a PoE, a TCP/IP port and an RS-485 port for PC connection. The GV-I/O Box 4E also supports the GV-IoT app for remote management via mobile devices.

USA Vision Systems - 55-IB00030-0000 - Features

4 inputs and 4 outputs
TCP/IP and RS-485 ports for PC connection
DC 12V, 3A / PoE+ (IEEE 802.3at)
Up to 9 GV-I/O Box 4 / 8 / 16 devices can be linked together
Up to 16 connections from GeoVision software are allowed to control one GV-I/O Box
GV?IoT mobile app for remote management

Specifications

USA Vision Systems - 55-IB00030-0000 - Specifications

Manufacturer Part Number	55-IB00030-0000
Brand Name	USA Vision Systems
Item Description	1–30 Channel IO Box (I/O Expansion Module)
OS Supported	32-bit Windows 7 / 8 / 8.1 / 10 / Server 2008
Input	4 inputs, Dry Contact, NO / NC
Output	4 relay outputs (DC 30V, 3A; 110V AC ~ 250V AC, 3A)
Ethernet	RJ-45, 10 / 100 Mbps
Power	12V DC, 3A / PoE+ (IEEE 802.3at, provides up to 25.5W)
Operating Temperature	0°C ~ 65°C / 32°F ~ 149°F

Documents and Downloads

USA Vision Systems 55-IB00030-0000 Data Sheet
