Description
Description

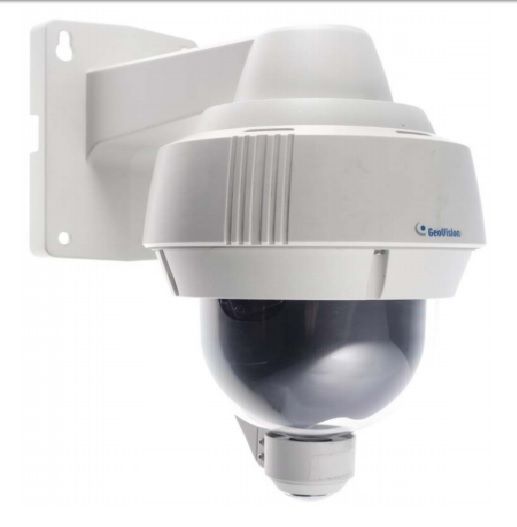

GV-PPTZ14031 is a 2-in-1 panoramic PTZ IP camera that includes a 12 MP fisheye panoramic camera and a 2 MP IP Speed Dome. The fisheye camera allows you to monitor all angles of a location, while the speed dome can instantly point toward an area with just one click on the fisheye live view. Without installing any software, you can watch live view and utilize functions such as motion detection, privacy mask, and alert notification through the Web interface.
Usa Vision Systems - 84-PTZ1403-1010 - Features
- Panoramic fisheye camera (FE) integrated with a PTZ speed dome (SD)
- FE: 1/1.7’’ progressive scan low lux CMOS, SD: 1/3’’ progressive scan low lux CMOS
- Dual streams from H.265 (SD Only), H.264 and MJPEG
- FE: Up to 15 fps at 4000 x 3000, SD: Up to 30 fps at 1920 x 1080 (60 Hz), 50 fps at 1920 x 1080 (50 Hz)
- FE: Day and night (Electronic), SD: Day and night (with removable IR-cut filter)
- SD: Wide Dynamic Range Pro (WDR Pro)
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- Wide temperature tolerance (-40°C ~ 50°C / -40°F ~ 122°F)
- FE: 1 built-in Micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage, SD: 1built-in SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
- 4 sensor inputs and 1 alarm output
- DC 24V / AC 24V / High PoE (PoE++, 53 W)
- FE: Provides 360° panoramic view
- SD: 30x optical zoom and 32x digital zoom
- SD: pan 360° and tilt from -15° to 195°
- SD: Preset speed at up to 460°/sec
- SD: PTZ movement (Preset, Sequence, Auto Pan, Cruise and Tour)
- Two-way audio
- 2D noise reduction
- Tampering Alarm
- Privacy mask
- Visual automation
- Text overlay
- 31 languages on Web interface
- ONVIF (Profile S) conformant
Specifications
Specifications
Usa Vision Systems - 84-PTZ1403-1010 - Specifications
| SKU | 84-PTZ1403-1010 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Heater & Fan, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Geovision |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Lens Type | Motorized Zoom |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | HPoE |
| Automatic Gain Control (AGC) | FE: Automatic, SD: Automatic, Manual |
| Dimensions (W x H) | Ø 211 x 277 mm (8.3” x 10.9”) |
| Electronic Shutter | FE: Automatic, Manual (1/25 ~ 1/16000 sec.), SD: Automatic, Manual (1/6 ~ 1/30000 sec.) |
| Image Device | FE: 1/1.7” progressive scan low lux CMOS, SD: 1/3” progressive scan low lux CMOS |
| Minimum Scene Illumination | Color FE: 0.1 Lux, SD: 0.5 Lux, B/W FE: 0.05 Lux, SD: 0.1 Lux |
| Operating Humidity | 10% ~ 90% (no condensation) |
| Operating Temperature | ?40°C ~ 50°C (?40°F ~ 122°F) |
| OSD Menu | 8 |
| Power Consumption | 57.2W |
| Protocols | DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF (Profile S), RTP, RTCP, RTSP, SMTP, SSL, TCP, UDP, UPnP |
| S/N Ratio | FE: 52 dB, SD: 50 dB (AGC Off) |
| Weatherproof | IP67 |
| Digital Noise Reduction | 2D |
| Angle of View | FE: 180°, SD: 58.9° ~ 2.11° |
| Motion Detection Tracking | On / Off |
| Automatic White Balance | Automatic, Manual (2800K ~ 8500K) |
