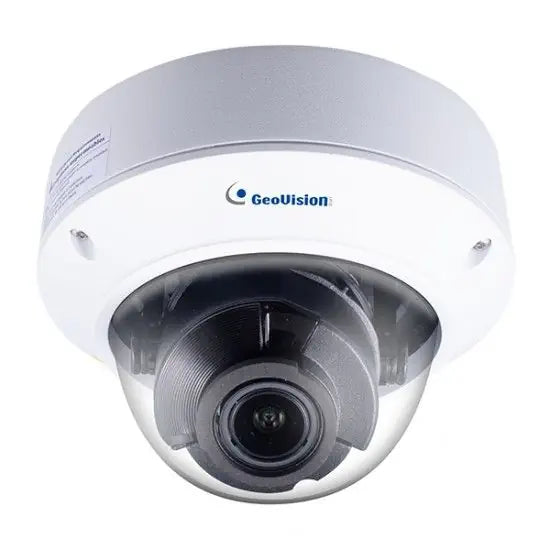

Usa Vision Systems 84-TVD4700-0010 | Megapixel Outdoor IR Vandal Proof IP Dome Camera, 2.8-12mm Lens
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Usa Vision Systems 84-TVD4700-0010 | Megapixel Outdoor IR Vandal Pr...
Description
Description
The 84-TVD4700-0010 Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV?TVD4700 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR?cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axes (pan, tilt and rotate), it offers an entry?level surveillance solution with all the essential features and excellent image quality.
Usa Vision Systems - 84-TVD4700-0010 - Features
- 1/3” progressive scan super low lux CMOS
- Min. illumination at 0.01 lux
- Triple streams from H.265, H.264 and MJPEG
- Up to 20 fps at 2592 x 1520
- Intelligent IR
- IR distance up to 30 m (100 ft)
- Day and Night function (with removable IR?cut filter)
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- 3?axis mechanism (pan / tilt / rotate)
- DC 12V / PoE (IEEE 802.3af)
- Built?in micro SD card slot (SD / SDHC / SDXC / UHS?I, Class 10) for local storage
- Wide Dynamic Range
- Defog
- 3D noise reduction
- Motion detection
- Text overlay
- Privacy mask
- Tampering Alarm
- ONVIF (Profile G, S, T) conformant
Specifications
Specifications
Usa Vision Systems - 84-TVD4700-0010 - Specifications
| SKU | 84-TVD4700-0010 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Geovision |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control | Automatic, Manual |
| Dimensions | Ø148 x 111.3 mm (Ø5.8 x 4.4”) |
| Electronic Shutter | Automatic, Manual (1/25 ~ 1/100000 sec) |
| Image Device | 1/3" progressive scan super low lux CMOS |
| IR LEDs | 2 |
| Minimum Scene Illumination | Color: 0.01 Lux (F1.6, AGC ON), IR On: 0 Lux |
| Operating Humidity | 0 ~ 95% (no condensation) |
| Operating Temperature | ?40 ~ 60°C (?40 ~ 140°F) |
| OSD Menu | Czech, English, French, German, Italian, Russian, Traditional Chinese |
| Power Consumption | 7 W |
| S/N Ratio | 52 dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D |
| Angle of View | Horizontal FOV: 97 ~ 29° |
| IR Distance | 30m/100ft |
| Rotation Angle | 0 ~ 360° |
