Brand: Vertiv
|
SKU:
330761

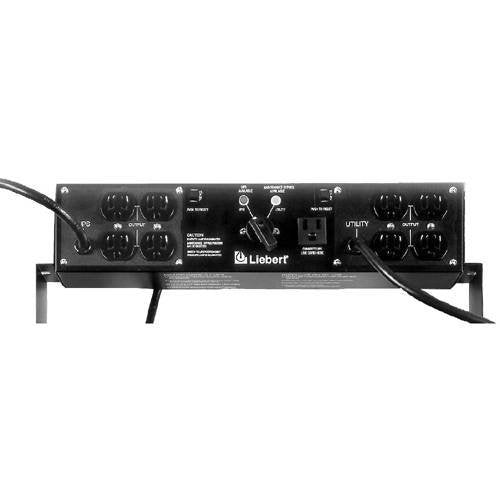

Vertiv MP2-130P | 120V 30A 4X5-15R 2XL5-20R MICROPOD MAINTENANCE BYPASS.
Regular price
$707.76
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Vertiv MP2-130P | 120V 30A 4X5-15R 2XL5-20R MICROPOD MAINTENANCE BY...
Regular price
$707.76
Unit price
Description
Description
Liebert MicroPOD allows manual uninterruptible power supply (UPS) bypass, powering the connected load with utility power during UPS maintenance or replacement, to ensure continuous operation of critical computer equipment. The unit has two modes of operation, UPS mode (UPS available) and utility mode (maintenance bypass). The rackmount unit can support any brand of UPS, 3kVA or smaller; in 50Hz or 60Hz models.
Specifications
Specifications
Specifications
| Limited Warranty | 2 Year |
|---|---|
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Current | 24 A |
| Additional Information | The POD is designed to operate as a maintenance bypass system in the following modesNormal - The UPS is continuously supplied available utility power by the POD. The UPS output power is returned to the POD and distributed to the critical AC load through the POD output receptaclesMaintenance Bypass - The bypass switch allows a transfer of the critical AC load from the UPS inverter to the utility source; to allow for service to or replacement of the UPS, without interrupting the loadBypass Switch: The bypass switch is capable of switching up to 20 or 30 amps, based on the model of the POD. The switch is a break before make type, with a maximum transfer time of 6msConnection to UPS Input: L5-30RConnection to UPS Output & cord length: L5-30P on attached 6 foot cord |
| Package Contents | MicroPOD MP2-130P Bypass Switch Brackets for Rack Mounting |
| Compatibility | Liebert Micro-UPS Systems |
| Certifications & Standards | UL cUL |
