Brand: Vertiv
|
SKU:
10576423

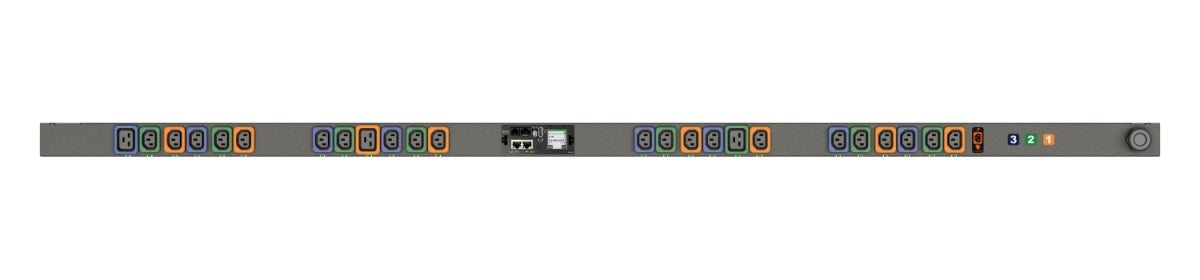

Vertiv VP6N20A1 | RPDU Monitored Outlet Level EC 20A 120/208V Wye 5.7KW Vertical
Regular price
$2,911.41
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Vertiv VP6N20A1 | RPDU Monitored Outlet Level EC 20A 120/208V Wye 5...
Regular price
$2,911.41
Unit price
Description
Description
Vertiv VP6N20A1 | RPDU Monitored Outlet Level EC 20A 120/208V Wye 5.7KW Vertical
Upgradeable Outlet Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.
Vertiv - VP6N20A1 - Features
- Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
- Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
- Fault-Tolerant
- Every unit is 100% tested for reliability and functionality. Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
- Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
Specifications
Specifications
Vertiv - VP6N20A1 - Specifications
| Manufacturer Part Mumber | VP6N20A1 |
|---|---|
| Brand Name | Vertiv |
| Voltage | 100-120/200-240V WYE |
| Current | 20A x 3 Phase WYE |
| VA per Input (Load Capacity) | 5.7kW (208V) |
| Frequency | 50/60Hz |
| Indicators - LED(s) | 24 |
| Power Cable Wire Gauge | 45789 |
| Power Cable Length | 10ft / 3m |
| Power Entry Location | Bottom Front |
| Remote Sensor RJ Connection Jacks | 1 (Supports up to 16 Sensors) |
| Maximum Operating Temperature | 60C / 140F |
| Heavy Steel - Powder Coat Finish | Black |
| Configuration | Zero U |
| Shipped Weight | 18lbs (8.16kg) |
