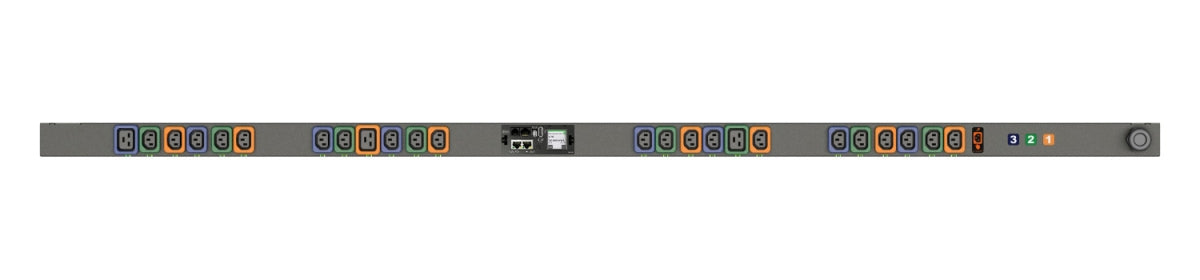

Vertiv VP7N20A1 | RPDU Switched Outlet Level Mon Itoring EC 20A 120/208V Wye 5.7K
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Vertiv VP7N20A1 | RPDU Switched Outlet Level Mon Itoring EC 20A 120...
Description
Description
Upgradeable Switched Outlet Level Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. With the Geist Upgradeable hot-swap technology, users may easily update the rPDU technology with the addition of the appropriate Interchangeable Monitoring Device (IMD) as business needs change.
Vertiv - VP7N20A1 - Features
- Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control.
- Reliable power distribution with local and remote outlet-level power monitoring options offer quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime.
- Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
- Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
- Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
Specifications
Specifications
Vertiv - VP7N20A1 - Specifications
| Manufacturer Part Mumber | VP7N20A1 |
|---|---|
| Brand Name | Vertiv |
| Voltage | 100-120/200-240V WYE |
| Current | 20A x 3 Phase WYE |
| VA per Input (Load Capacity) | 5.7kW (208V) |
| Frequency | 50/60Hz |
| Power Cable Wire Gauge | 45789 |
| Power Cable Length | 10ft / 3m |
| Power Entry Location | Bottom Front |
| Plug Type | NEMA L21-20P Twistlock |
| Style | Individual |
| - Voltage per Receptacle/Socket | 208V |
| Receptacle/Socket Type #2 | U-Lock IEC C19 |
| Maximum Operating Temperature | 60C / 140F |
| Heavy Steel - Powder Coat Finish | Black |
| Shipped Weight | 18lbs (8.16kg) |
