Videotec Usa DCRE485 | Serial Data Distributor
Regular price
$342.92
Unit price
Brand: Videotec Usa
|
SKU:
331184
Regular price
$342.92
Unit price
Description
Description

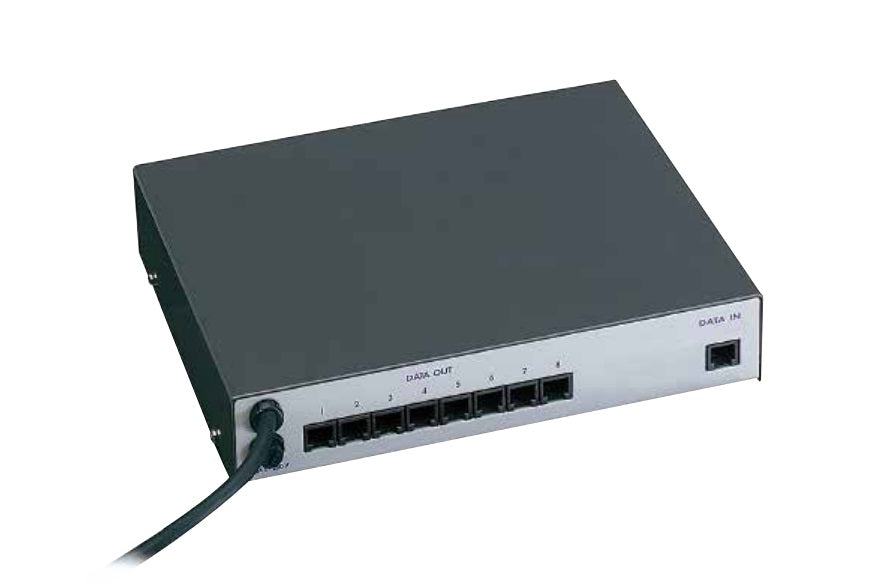

Videotec Usa DCRE485 | Serial Data Distributor
DCRE485 is a serial data distributor used to increase the lines of DTRX3 and DTMRX2 receivers. The appliance gives serial data back on 8 outputs at the same time, allowing star configurations. The receiving mode of the input is RS485; the transmission in RS485, takes place at the same time on all 8 outputs.
Videotec Usa - DCRE485 - Features
- 1 input, 8 serial outputs in RS-485
- Serial data back on eight outputs at the same time
- max. connection distance 1200m (3937ft)
- Supplied with 8 RJ11 telephone cables 6/6 straight through-length about 150cm (59in), 8 RJ11 connections boxes
Specifications
Specifications
Videotec Usa - DCRE485 - Specifications
| Dimensions | : 222x185x40mm (7.7x7.3x1.6in) |
|---|---|
| Unit weight | 2.4kg (5.3lb) |
| Supply voltage | 230Vac, 50/60Hz |
| Power consumption | 10W |
| Protection fuses | 63 mA T 230V |
| Weight | 2.8kg (6.2lb) |
| Operating temperature | from 0°C (32°F) up to +45°C (+113°F) |
| Relative humidity | from 5% up to 95% |
