Vigitron VI00021U | IP camera Installation and 90W PoE Tester Tool
Description
Description

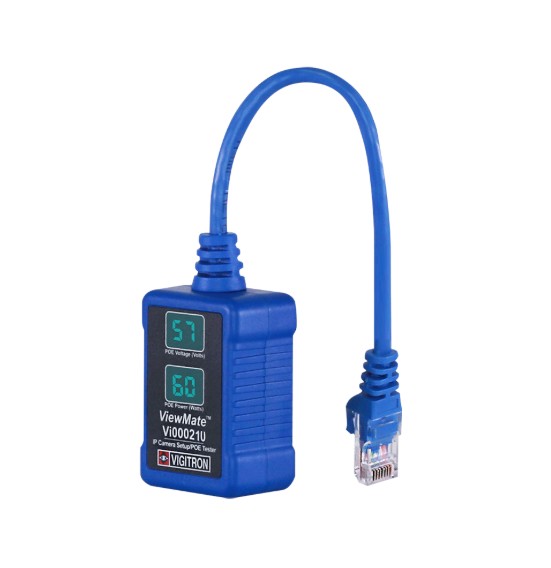

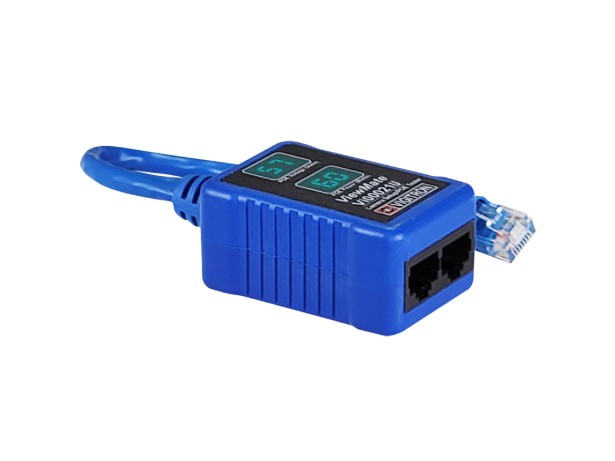

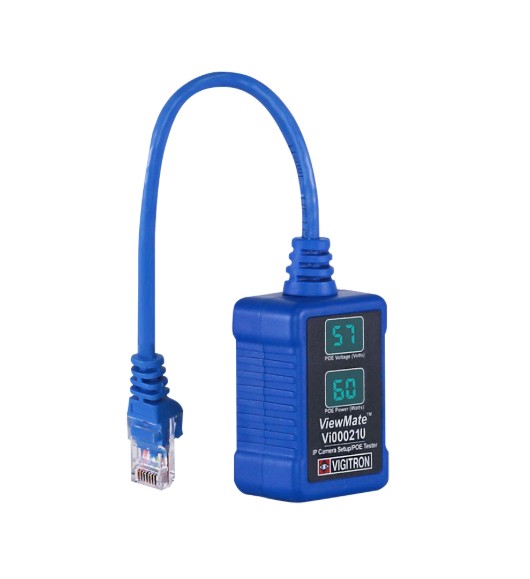

Vigitron’s Vi00021U ViewMate™ is a compact but powerful tool for installing and troubleshooting PoE enabled devices. The Vi00021U is a patented device that accurately and continuously measures and displays the voltage and power level of PoE at the camera input up to 90W. When connected, ViewMate™ passes the PoE power from the “Network” Ethernet port to the remote PoE powered device such as an IP camera thru “Camera” port, and the “Laptop” port provides direct network connection from the remote IP camera to a local laptop for focusing and set up. Powered directly from PoE sources, the Vi00021U doesn’t require any external power. It is compatible with IEEE 802.af, IEEE 802.at, IEEE 802.bt and most non-standards PoE systems up to 90W for 10/100 BASE-T environments.
Vigitron - VI00021U - Features
- Provides a simple way to setup and focus PoE-powered IP cameras.
- Maintains PoE power to the IP camera while making a local Ethernet connection to a laptop to view the camera image.
- Displays accurately the PoE voltage and power at the camera.
- 10BASE-T and 100BASE-T compliant with integrated network crossover.
- Compatible with IEEE 802.af/at/bt and most non-standard solutions up to 90W.
- Does not require an external power source, and uses PoE power from the network.
- Low cost and easy to use.
- Speeds up the IP camera installation.
- Patented design.
Specifications
Specifications
Vigitron - VI00021U - Specifications
| Connectors | “POE In”: RJ-45 Connector |
|---|---|
| Network Interface | 10BASE-T, 100BASE-T, 1000BASE-T Half or Full Duplex |
| Power Supply | Uses PoE, no external power needed |
| Humidity | 0 to 95%, non-condensing |
| Operating: | -40°C to +75°C |
| Dimensions | 1.52x1.09x2.24 in., 3.87x2.75x5.67 cm (HxWxL) |
| Weight | 0.116 lb, 53 g |
