Description
Description

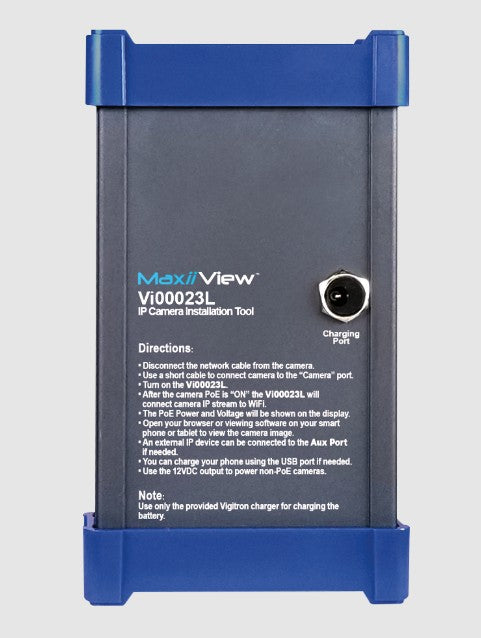

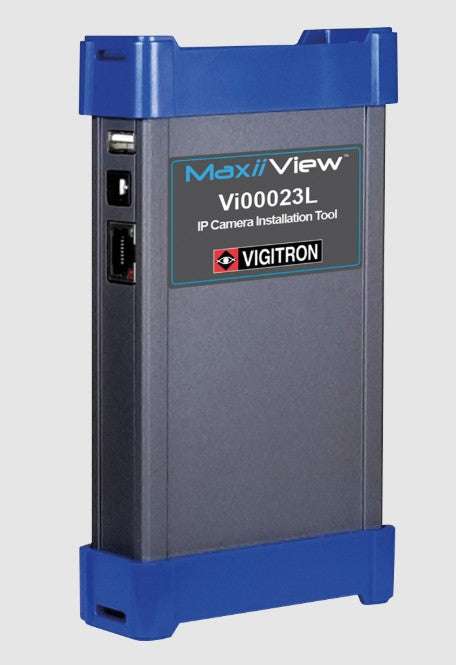

Vigitron's patent-pending Vi00023L wireless camera setup tool offers a fast and reliable method for focusing and adjusting the view of IP cameras in the field. The connected IP camera image is transmitted through both WiFi and wired connection allowing for a quick in-field view of images on cell phones, tablets, or laptops. It also displays PoE voltage and power consumed by the camera. The Vi00023L is very compact and light and can easily fit in a pocket. The carrying strap makes it easy to operate hands-free.
Vigitron - VI00023L - Features
- Simplifies and speeds up installation and Camera positioning
- Compact and lightweight design makes it possible to operate it hands-free
- Complies with IEEE 802.3af/at POE standards, and can deliver up to 36W of POE
- Monitors real-time PoE voltage and power on OLED display
- Enables focusing and adjusting the camera view through wired and wireless connections to the camera for viewing images on cell phones, tablets, or laptops

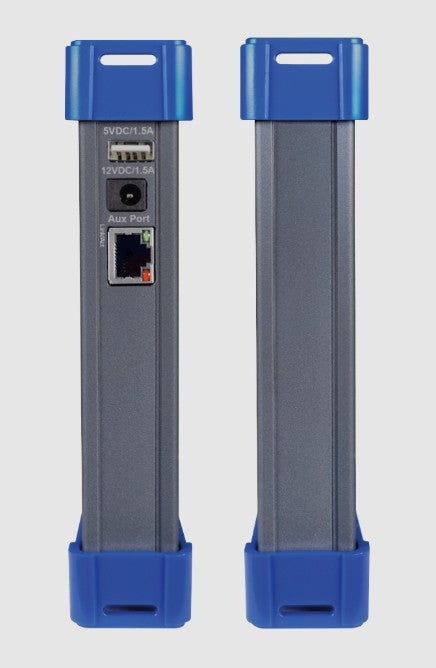

- A 5V USB port enables charging smartphones/tablets on the site.
- Built-in rechargeable battery provides PoE power to connected devices without the need for external power sources
- Compact design, light, and easy to use
- Verifies proper camera connection and PoE
- Includes a built-in 3-port switch
- Reduces installation time and cost
- Patented design.
Specifications
Specifications
Vigitron - VI00023L - Specifications
| Connector | Camera Port: RJ-45, 10/100Mbps data and PoE |
|---|---|
| Power Output | 12VDC @ 1 A, Barrel Connector Jack |
| Display Type | 128x32 monochrome OLED display |
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -20°C to +50°C, Storage: -20°C to +50°C |
| Dimensions | 7.25 x1.3 x3.3 in., 18x3.3x9.2 cm (HxWxL) |
| Weight | 1.18 lb; 535 g |
| Housing | Extruded Aluminum and ABS plastic UL rating of 94V-0 |
| Security | SPA2 - PSK with user configured password |
| Wireless frequency | Default 2.4Ghz compatible to b.g.n |
| LED Indicator | Activity: Green |
| Charging time | 3 Hours Maximum |
| Charging Temperature | 0°C to +45°C |
| UNSPSC Code | 43222500 |
