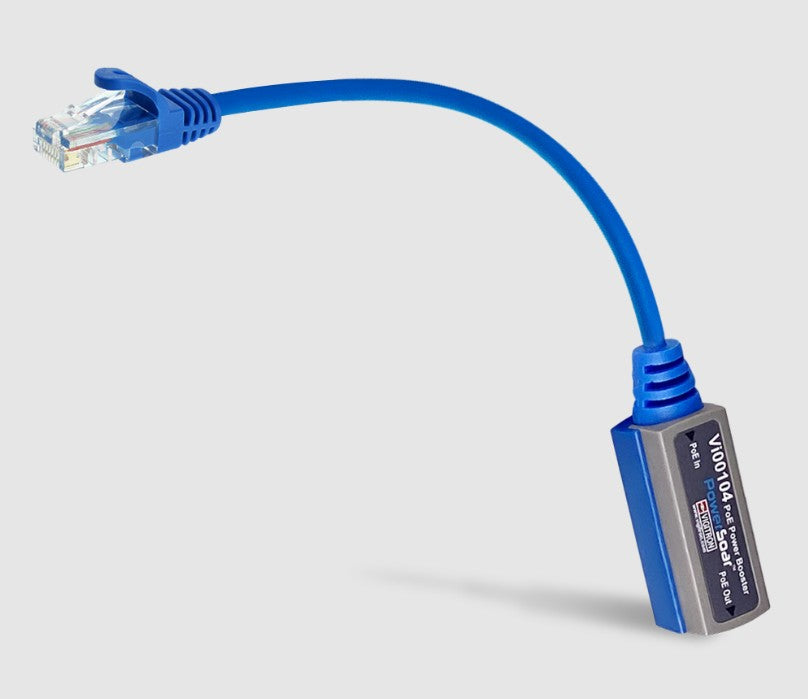

Vigitron VI00104 | PoE Booster for AF/at PoE Sources Up to 36W
Description
Description
Vigitron's Vi00104 provides a unique method for increasing PoE power without the need to change the existing cables. It is the perfect cost-effective solution for boosting received PoE power helping to prevent potential shutdowns due to varying PoE requirements which are typical in most connected devices. The Vi00104 works with both extended and non-extended applications and significantly reduce operation costs. It provides a male RJ45 pigtail on one end and a female RJ45 on the other end. It is compact in size, lightweight, low cost, and easy to use. The Vi00104 is patent pending and is an ideal solution to save energy and extend the reach of PoE.
Vigitron - VI00104 - Features
- Increases PoE transmission efficeincy over category cables
- Doubles the PoE transmission distance
- Compliant with 10/100/1000BaseT Ethernet
- Decreases the loss of PoE power over the cable
- Handles Ethernet Jumbo Frames
- No set up required, Plug and play
- Low cost and easy to use
- Patent pending design
Specifications
Specifications
Vigitron - VI00104 - Specifications
| Connector | PoE input: Male RJ-45, PoE Output: 10” pigtail w/Female RJ-45 |
|---|---|
| Ethernet Standards | 10/100/1000BaseT |
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -40°C to +60°C,Storage: -40°C to +80°C |
| Dimensions | 0.8x0.84x1.90 in, 2.03x2.13x4.83 cm (HxWxL) w/ a 10 inches (25 cm) pigtail Cables |
| Weight | 0.05 lbs,23 g |
| Housing | ABS plastic UL rating of 94V-0 |
| UNSPSC Code | 43222600 |
