Description
Description

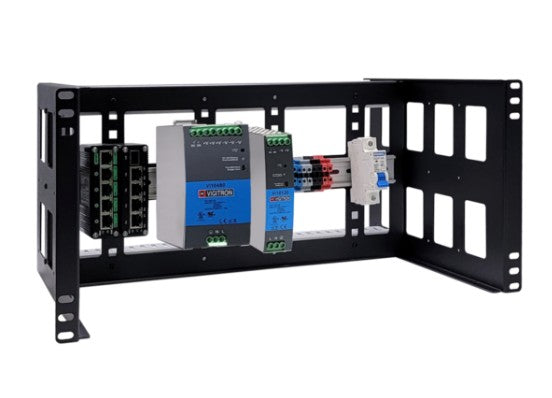

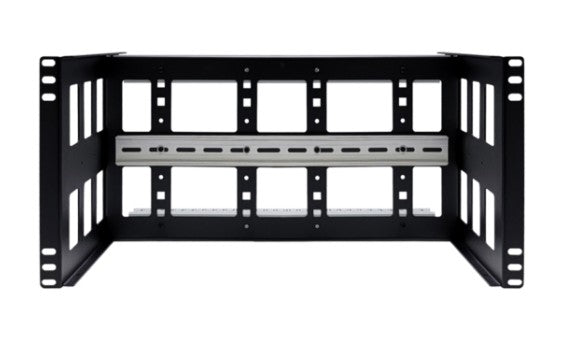

The Vigitron Vi00115 is a flexible, 5U adjustable rack adapter designed to mount DIN Rail devices on standard 19” EIA 2-post relay racks or 4-post EIA-301 cabinets. Its universal fit works with most industrial devices, such as network switches and power supplies, making system setup easier. This adapter removes the need for custom brackets, saving both time and money, especially for small projects. It has adjustable depth with four settings, fitting different DIN Rail device sizes. Also, the slotted DIN Rail lets you place devices at three levels, ensuring the best position for your equipment. To improve performance, the design ensures good airflow, keeping equipment cool. Large holes on all sides make cable management simple, keeping wiring neat and accessible. Built from strong steel, the Vi00115 lasts a long time, even in tough environments.
Vigitron - VI00115 - Features
- 5U Universal DIN Rail Rackmount Adapter
- Confirms to EN500222 and EIA-301 standard
- Easy installation of Wire Ducts
- Constructed with heavy gauge steel sheet metal
- Adjustable to 4 different depths
- The slotted DIN Rail can be mounted at 4 levels.
- Excellent airflow for optimal device performance
- Lifetime Warranty + 3 years
Specifications
Specifications
Vigitron - VI00115 - Specifications
| Bracket size | 5.25x18.9x9.2 in, 13.3x48x23.4 cm (HxWxL) |
|---|---|
| Rack Height | 5U |
| DIN Rail Standard | Top Hat, EN 500222 and IEC 60715 |
| DIN Rail Size | 1.5 x 15.7 in, 3.7 x 40 cm (WxL) |
| Supported Racks | 19”, EIA-310-D, (IEC) Standard 60297 |
| PVC Wire duct | 1.57x1.18x15.4 in, 4x3x39 cm (HxWxL) |
| Max Load | 100 LB Max |
| Depth | 10.7” (27 cm), 8.1” (20.6 cm), 5.6” (14 cm), 3.1”, (7.9 cm), Adjustable |
| Weight | 3.7lb (1.7Kg) |
| Material | 12 Gauge steel Sheet Metal |
