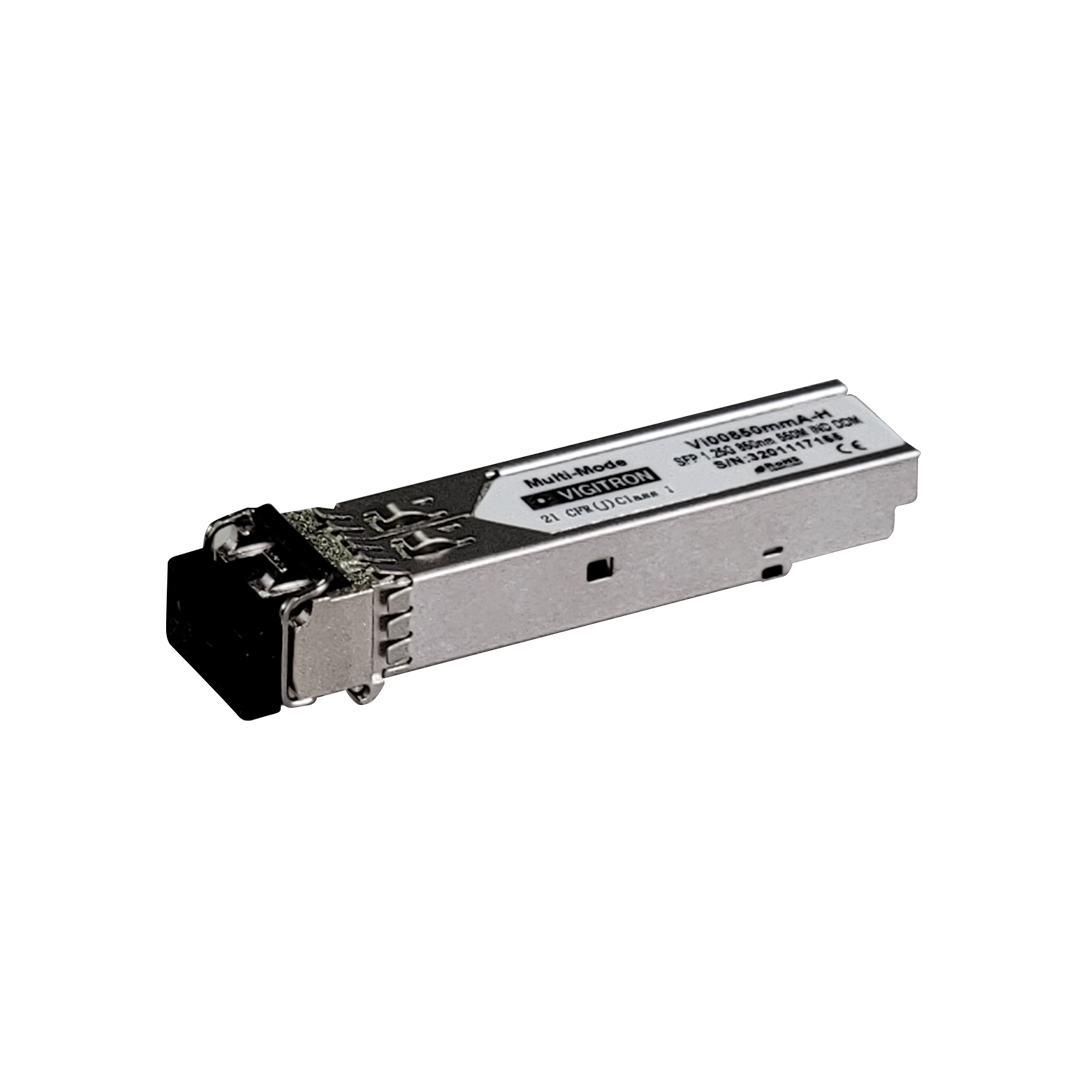

Vigitron VI00850MMA-H | 850Nm Multi-Mode Hardened Fiber Sfp
Description
Description
The Vi00850MMA-His an 850 nm SFP transmitting on multimode fibers that are compatible with the MultiSource Agreement (MSA). The Vi00850MMA-H is designed to work with any device conforming to the MSA standards. It operates on 50/125um fiber cables up to 550 meters (1815 feet). The Vi00850MMA-H is also compatible with 62.5/125 um fiber for a distance of up to 300 meters (990 feet). The Vi00850MMA-H is the perfect solution for interfacing with existing fiber cable installations for single/multiple camera transmission or short-haul backbones.
Vigitron - VI00850MMA-H - Features
- Compliant with SFP MSA and SFF-8472 standard for Digital Diagnostic Monitoring Interface
- Compliant with IEEE802.3z Gigabit Ethernet standard
- Compliant with industry-standard small form pluggable (SFP) package
- Duplex LC connector
- Conforms to MultiSource Agreement for SFP
- Distances of 550m using 50/125um fiber and 300m using 62.5/125 cable
- Single power supply 3.3V
- TTL signal detect indicator
- Hot-pluggable
- Class 1 laser product complies with EN 60825-1
- Hardened wide operating temperature range of -40°C to +75°C
Specifications
Specifications
Vigitron - VI00850MMA-H - Specifications
| Brand Name | Vigitron |
|---|---|
| Manufacturer Part Number | VI00850MMA-H |
| Item Description | 850Nm Multi-Mode Hardened Fiber Sfp |
| Supply Voltage | 3.1V to 3.5V |
| Current | 300mA |
| Signal Detect | TTL |
| Compatible with | SONET/SDH, Fast Ethernet standard |
| Fiber Type | Multi-mode |
| Transmission Distance | 550m using 50/125 um fiber, 300m using 62.5/125 um fiber |
| Transmission Speed | 1.25 Gbps |
| Wavelength | 850nm |
| Safety | CE |
| Environmental | RoHS, WEEE |
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -40°C to +75°C, Storage: -40°C to +85°C |
| Dimensions | 0.41 x 2.2 x 0.53 in (10.5 x 57 x 13.7mm) |
| Weight | 0.035 lbs (15g) |
| Material | Metal Alloy |
