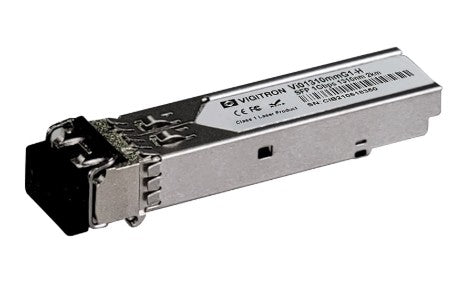

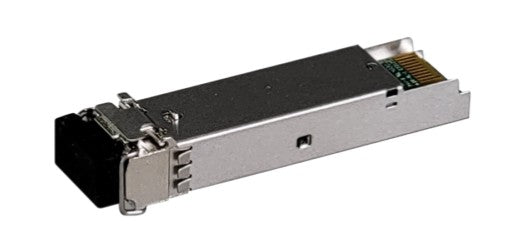

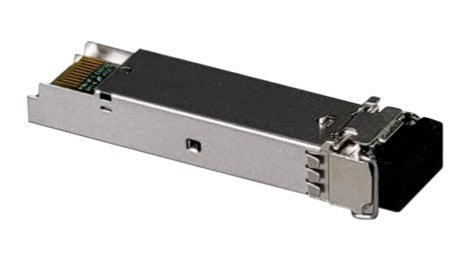

Vigitron VI01310MMG1-H | 1310nm Multi-Mode Hardened 1G Fiber SFP Transceiver
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Vigitron VI01310MMG1-H | 1310nm Multi-Mode Hardened 1G Fiber SFP Tr...
Description
Description
Vi01310MMG1-H is a 1310 nanometer 1G SFP transmitting on multimode fiber. Compatible with the MultiSource Agreement (MSA), the Vi01310MMG1-H is designed to work with any device conforming to the MSA standards. The Vi01310MMG1-H is also compatible with 62.5/125um fiber for distance of up to 2Km. The Vi01310MMG1-H is the perfect solution for interfacing with existing fiber cable installations for single/multiple camera transmission or short haul backbones.
Vigitron - VI01310MMG1-H - Features
- Compliant with IEEE802.3z Gigabit Ethernet Standard
- Industry standard small form pluggable (SFP) package
- Compliant with SFP and SFF-8472 standard for diagnostic monitoring interface
- Distances of 2km
- Duplex LC connector
- Single power supply 3.3V
- TTL signal detect indicator
- Hot pluggable
- Class 1 laser product complies with EN 60825-1
- Hardened wide operating temperature range of -40°C to +75°C
Specifications
Specifications
Vigitron - VI01310MMG1-H - Specifications
| Supply Voltage | 3.1V to 3.5V |
|---|---|
| Current | 250mA |
| Fiber type | Single Mode |
| Transmission speed | 1.25Gbps |
| Wavelength | 310nm |
| Temperature | Operating: -40°C to +75°C, Storage: -40°C to +85°C |
| Dimensions | 0.41 x 2.2 x 0.53 in (10.5 x 57 x 13.7 mm) |
| Weight | 0.035 lbs (15g) |
| Material | Metal Alloy |
