Brand: Vigitron
|
SKU:
10332970

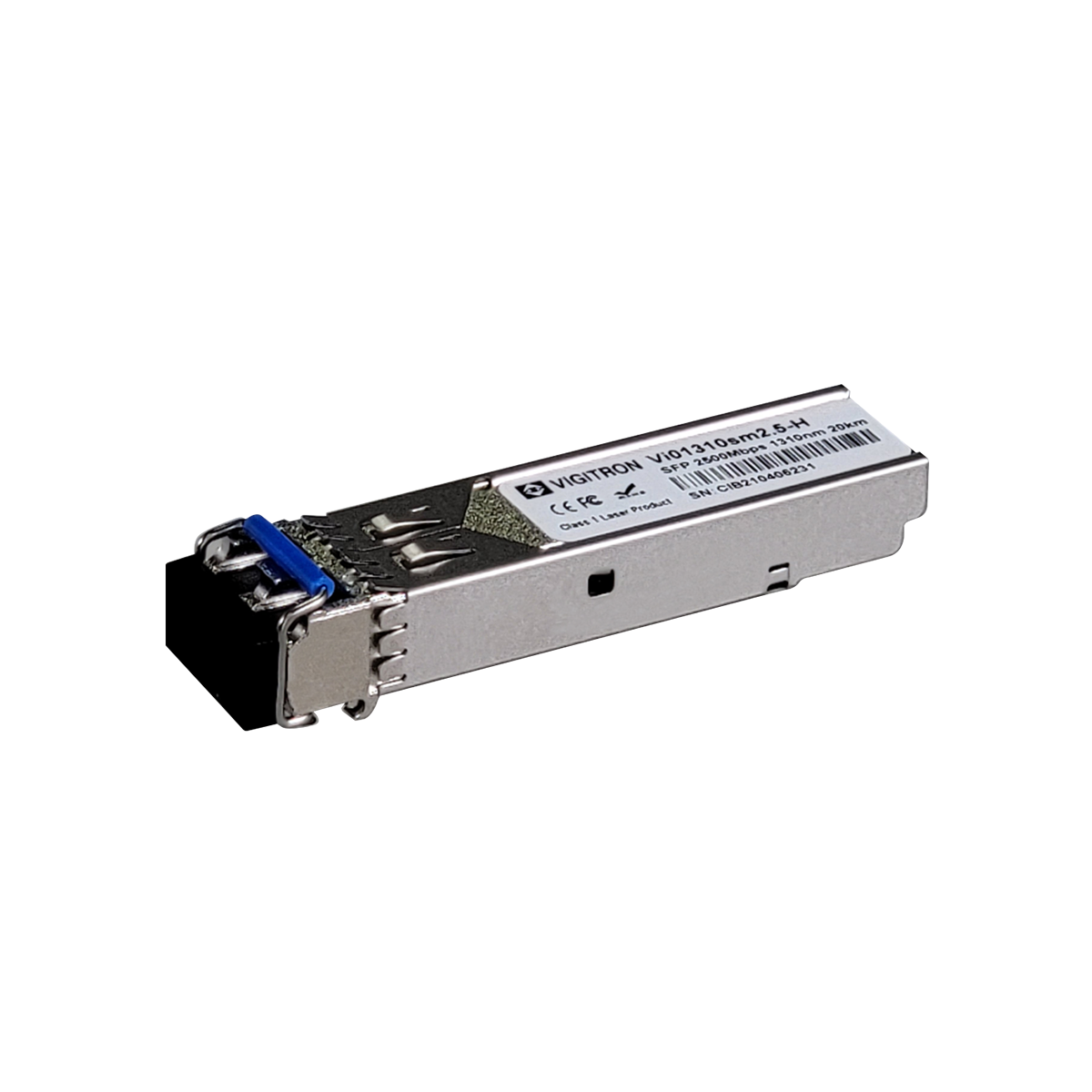

Vigitron VI01310SM2.5-H | 1310Nm Single-Mode 2.5G Hardened Fiber Sfp Transceiver
Regular price
$70.49
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Vigitron VI01310SM2.5-H | 1310Nm Single-Mode 2.5G Hardened Fiber Sf...
Regular price
$70.49
Unit price
Description
Description
Vigitron VI01310SM2.5-H | 1310Nm Single-Mode 2.5G Hardened Fiber Sfp Transceiver
Vi01310SM-H is a 1310 nanometer SFP transmitting on single mode fiber. Compatible with the MultiSource Agreement (MSA), the Vi01310SM-H is designed to work with any device conforming to the MSA standards. The Vi01310SM-H compatible with 9/125um fiber for distances up to 20km (over 12 miles). The Vi01310SM-H is the perfect solution for interfacing between network switches and Network Video Recorders over long distances.
Vigitron - VI01310SM2.5-H - Features
- Compliant with IEEE802.3z 2.5 Gigabit Ethernet Standard
- Conforms to MultiSource Agreement for SFP and SFF-8472 for digital diagnostic monitoring interface
- Distances of 20km (1000Base-LX)
- Duplex LC connector
- Industry-standard small form pluggable (SFP) package
- Single power supply 3.3V
- TTL signal detect indicator
- Hot-pluggable
- Class 1 laser product complies with EN 60825-1
- Compatible 9/125um cable
- Compatible with SONET OC-24-LR-1
- Hardened wide operating temperature range of -40°C to +75°C
Specifications
Specifications
Vigitron - VI01310SM2.5-H - Specifications
| Brand Name | Vigitron |
|---|---|
| Manufacturer Part Number | VI01310SM2.5-H |
| Item Description | 1310Nm Single-Mode 2.5G Hardened Fiber Sfp Transceiver |
| Supply Voltage | 3.1V to 3.5V |
| Current | 300mA |
| Signal Detect | TTL |
| Compatible with | SONET/SDH, Fast Ethernet standard |
| Fiber Type | Multi-mode |
| Transmission Distance | 550m using 50/125 um fiber, 300m using 62.5/125 um fiber |
| Transmission Speed | 1.25 Gbps |
| Wavelength | 850nm |
| Safety | CE |
| Environmental | RoHS, WEEE |
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -40°C to +75°C, Storage: -40°C to +85°C |
| Dimensions | 0.41 x 2.2 x 0.53 in (10.5 x 57 x 13.7mm) |
| Weight | 0.035 lbs (15g) |
| Material | Metal Alloy |
