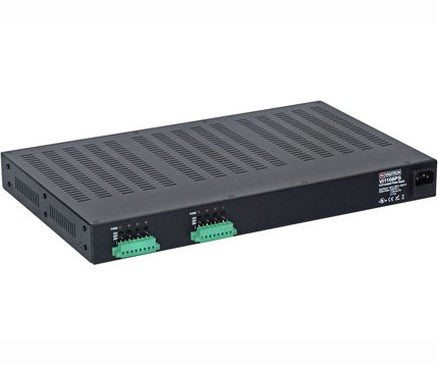

Vigitron VI1108PS 8-Channel 24/28VAC Isolated Power Supply

The Vi1108PS is a high quality 8 channel fully isolated class II power supply that on which each output can be set individually to 24 VAC, 28 VAC or off. Each power output can be individually turned on or off, is equipped with surge protection and a 2 A glass fuse easily accessible from front panel. Each output is also equipped with a resettable fuse for extra protection. The input voltage can be selected at 110 VAC or 220 VAC via an external switch. The Vi1108PS is a 19” rack mountable at 1U height. This unit can be mounted from front or rear in the rack. The output connections are through detachable terminal blocks to make installation easy. There is one power LED per output. The Vi1108PS is an ideal CCTV component for a structured cabling environment.

Features

8 isolated outputs, individually selectable to 24 VAC or 28 VAC

1 A maximum per channel, 6 A aggregated

Built-in surge protection

A glass fuse per channel, accessible from front panel

Power present and fault indicator LEDs for each camera

19", low profile 1U wall or rack or wall mountable

Designed for structured wiring applications
