Brand: Vigitron
|
SKU:
10611404

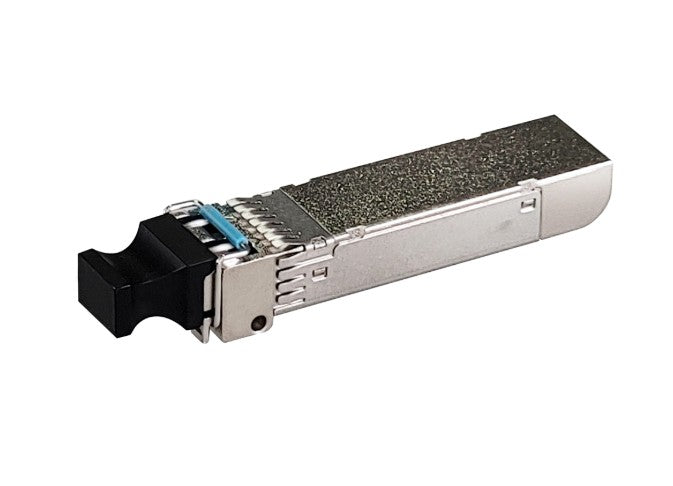

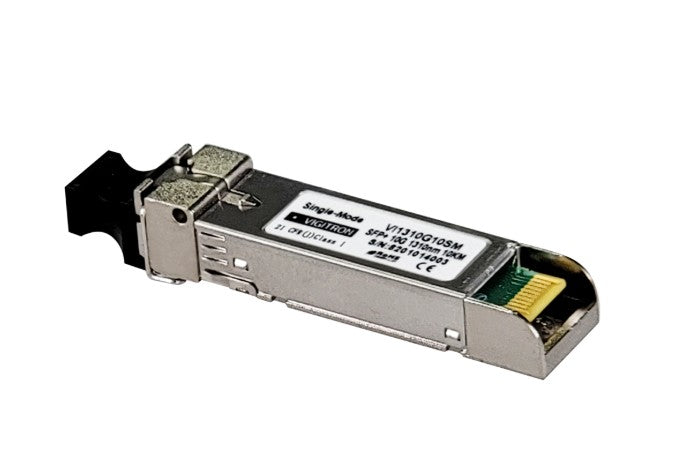

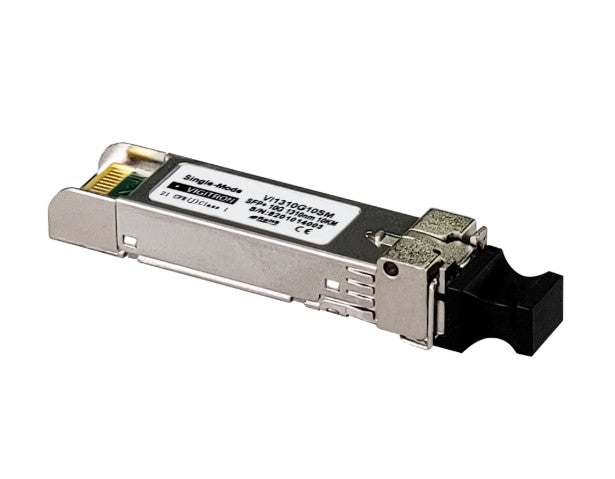

Vigitron VI1310G10SM | SFP Transceiver, 1310nm, 10G, Single-Mode
Regular price
$88.77
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Vigitron VI1310G10SM | SFP Transceiver, 1310nm, 10G, Single-Mode
Regular price
$88.77
Unit price
Description
Description
Vigitron VI1310G10SM | SFP Transceiver, 1310nm, 10G, Single-Mode
Vi01310SM-H is a 1310 nanometer 10G SFP transmitting on single-mode fibers. It is compatible with the MultiSource Agreement (MSA). The Vi01310SM-H is designed to work with 10G network switch uplinks for systems requiring high bandwidth transmission.
Vigitron - VI1310G10SM - Features
- Optical Interface compliant to IEEE 802.3ae and 10Gbase-LR
- Electrical Interface compliant to SFF-8431
- Distances of 10km SMF connection
- Duplex LC connector
- Industry-standard small form pluggable (SFP) package
- 1310nm DFB transmitter, PIN photo-detector
- Low power consumption
- Hot-pluggable
Specifications
Specifications
Vigitron - VI1310G10SM - Specifications
| Supply Voltage | 3.1V to 3.5V |
|---|---|
| Current | 250mA |
| Signal Detect | TTL |
| Compatible with | IEEE 802.3z, SONET OC-24-LR-1 |
| Fiber type | SingleMode |
| Transmission speed | 1.25Gbps |
| Wavelength | 1310nm |
| Distance | 20Km |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 0.41 x 2.2 x 0.53 in (10.5 x 57 x 13.7 mm) |
| Weight | 0.035 lbs (15g) |
| Material | Metal Alloy |
