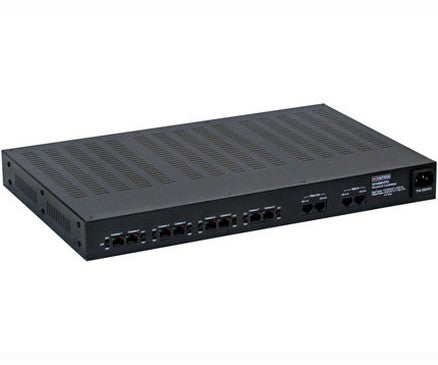

Vigitron VI1408VPD 8 Channel Powered VPD Combiner Hub

The Vi1408VPD is an advanced device that combines video, PTZ data, and camera power over a single 4-pair UTP cable to simplify CCTV installations in a structured wiring environment. It supports up to 8 cameras and is designed to be placed at a location between the cameras and control room to extend the video up to 3,000 feet (915 m). The Vi1408VPD has 8 channel fully isolated class II built-in 28/24 VAC power supply. Each camera power output is equipped with a glass fuse in addition to a resettable fuse for extra protection. All fuses are easily accessible from front. At the camera end the Vi1053VPD video balun/combiner provides video, power and data on separate outputs. The Vi1408VPD can be installed at the "head end" or “mid-span”. The video signals are connected through 4 RJ45 and Category-5 cables to passive or active UTP receivers at the control room. The data connections to the DVR are through 4-pair RJ-45 cables. There is a separate data connection for each camera. All equipment follows industry-standard EIA/TIA 568B pinouts. The Vi1408VPD is an ideal CCTV component for structured cabling environments.

Features

Supports up to 8 cameras by providing video, class II power and data on a single Category-5 cable per camera

8 isolated camera power individually selectable 24 or 28 VAC at 1 A max per channel, 6 A aggregated

A glass fuse per channel, accessible from front panel

Used with the Vi1053VPD transceiver at the camera

Power present and fault indicator LEDs for each camera

1U wall or rack mountable

Designed for structured wiring applications
