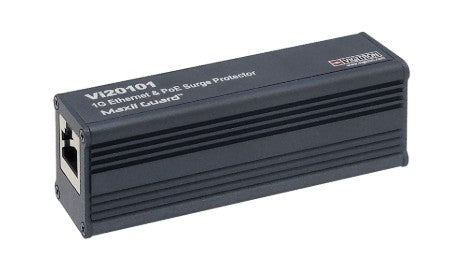

Vigitron VI20101 | 10G Ethernet and 90W PoE Surge Protector
Description
Description

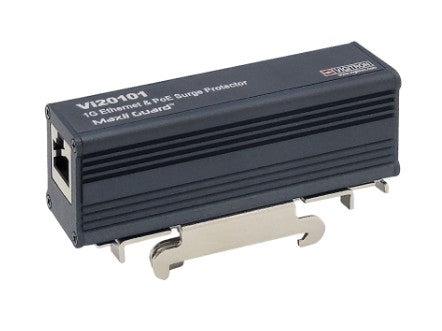

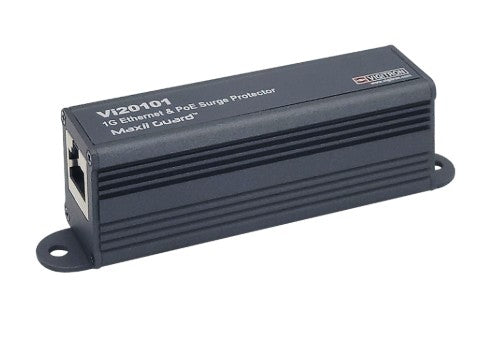

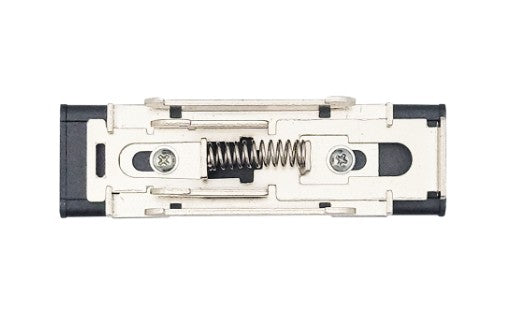

Vigitron’s Vi20201 is an industrial-grade PoE surge protector designed to safeguard 1G, 2.5G, 5G,10G high-speed Ethernet networks from damaging voltage spikes and power surges. Engineered for mission-critical applications, it offers seamless compatibility with IEEE 802.3af/at/bt PoE standards and supports up to 95W of power. Its ultra-compact design allows for DIN-Rail or wall mounting, making it ideal for tight installations such as camera housings, roadside cabinets, and industrial enclosures. The Vi20201 can be grounded using a built-in ground screw or a shielded RJ45 cable connected to a grounded Ethernet port or a grounded DIN Rail connection.
Vigitron - VI20101 - Features
- Innovative direct in line port plug in module saving valuable equipment space
- Able to be installed only those ports that require extra protection
- Ideal protection for standard and extended Ethernet runs
- Provides port protection for cameras and network equipment
- Compatible with 10/100/1G/2.5G/5G/10G Base-T ports
- Does not require extra ground cable
- Compatible with 802.3af, 802.3at and 802.3bt PoE standards
- Tested and certified to EN61000-4-5 and EN55024 surge standards
Specifications
Specifications
Vigitron - VI20101 - Specifications
| Ethernet Interface | IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T |
|---|---|
| PoE Standards | IEEE802.3af (15W), IEEE802.3at (30W), IEEE802.3bt (90W) |
| Surge Current Rating | 20kA / Pair |
| Nominal Line Voltage | 44-57V |
| DC Voltage (Max) | 90V (@ 100V/s) |
| Impulse (Max) | Spark-Over Voltage 500V (C3 Category 1KV/?s) |
| Nominal Current | 1A on 2 pairs, 2A on 4 pairs |
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -40°C to +85°C, Storage: -40°C to +85°C |
| Operating Altitude | Up to 5000 meters |
| Dimensions | 1.23x1x.3.5 in., 31x25x88 mm (HxWxL) |
| Weight | 0.172 lb, 79 g |
| Material | Extruded Aluminum |
| UNSPSC Code | 39120000 |
