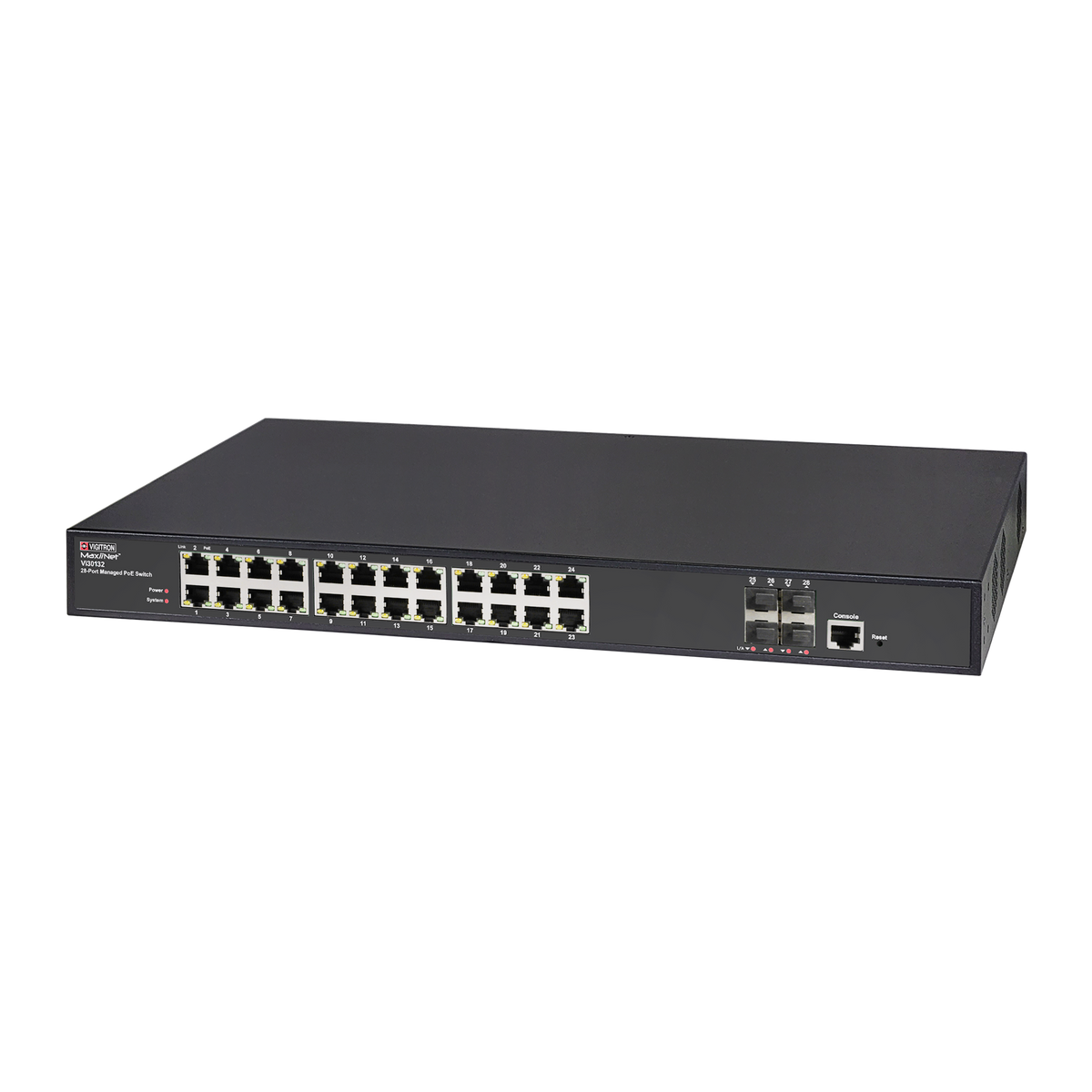

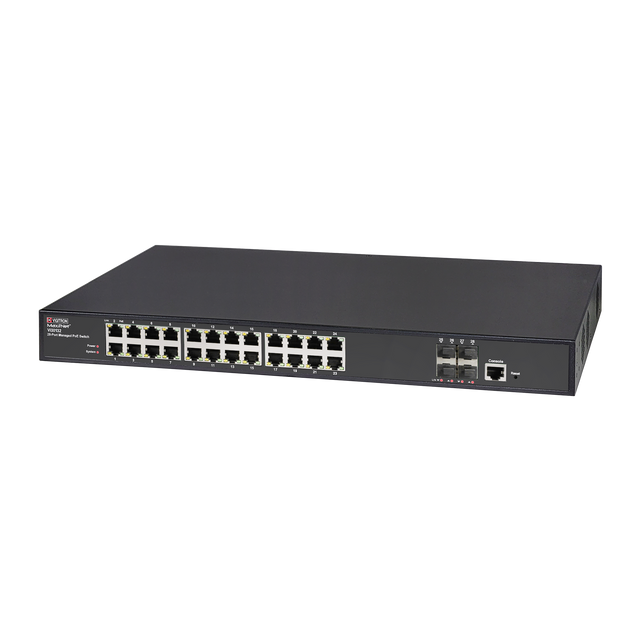

Vigitron VI30132 | 24-Port 1G, Ieee 802.3Bt Poe,10Gbe Uplink, L2+/L3 Managed Poe Switch
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Vigitron VI30132 | 24-Port 1G, Ieee 802.3Bt Poe,10Gbe Uplink, L2+/L...
Description
Description
Vigitron’s Vi30132 is an L2+/L3 Static Routing Managed Network Switch answering the growing demands for higher bandwidth, packet handling and PoE. The Vi30132 provides IEEE 802.3bt compatible PoE power up to 90W, Classes 0-8 on all ports up to total power of 770W.
A unique Time/Date reference allows NTP linked to central computer or server for time/Date related functions. Up to four 1G/2.5G/10G uplinks can be used for lossless transmission of the highest connected image resolution, core switch or daisy chain applications. A redundent power input can accept up to 1000W to provide back up power in the event of the main power failure.
Vigitron - VI30132 - Features
- 24 1G ports with high power PoE up to 90W
- PoE power compatible with IEEE 802.3bt up to 90W per port
- 4 x 1G/2.5G/10G uplink fiber ports
- Switch fabric of 128Gbps
- Jumbo frame programming at all bandwidth settings
- Layer 3 static trace routing
- Automatic IP and PoE reconnection
- 770W PoE Budget
- Backup DC external power up to 1000W
- G8032 V1/V2 Standard Ring Protocol
- Built in 8Kv contact and 15Kv air surge protection on all ports
- Lighting protection to 4Kv @ 8/20us duration IP30
- Unique TimeZone reference for setting system synchronization
- Programmable port temperature settings
- Detail Syslog with Health status messaging
- LLDP and ACL status identification
- Programmable port connection monitor with automatic link and PoE reconnection
Specifications
Specifications
Vigitron - VI30132 - Specifications
| Brand Name | Vigitron |
|---|---|
| Manufacturer Part Number | VI30132 |
| Item Description | 24-Port 1G, Ieee 802.3Bt Poe,10Gbe Uplink, L2+/L3 Managed Poe Switch |
| Ethernet Interface | 10/100/1G Base-T, 1G, 2.5G, 10G uplink |
| Throughput | 128Gbyte |
| Power Input | 100- 240VAC 50-60Hz, internal universal |
| Redundent Power | 57VDC up to 1000W power |
| Status LEDS | Traffic, Link, and PoE |
| Switch Capacity | 95.24Mbps, 128Gbps |
| Ring Protocol | G.8032 V1/V2 |
| PoE Delay | 0-600 seconds |
| Jumbo Frame | up to 10.2K |
| MAC Address | 32K |
| PoE Compatibility | IEEE 802.3af/at/bt up to 95 W Supports PoE configuration Supports auto restart Supports on/off |
| Connectors | 24x RJ-45 Connectors, 1Gb 4 x Fiber MSA Compliant SFP,1Gb/ 10G Main Power: IEC-320-C14 connector Redundent Power: Terminal Block Console: RJ45 |
| Surge Protection | +/- 8Kv contact/ +/- 15Kv air/4Kv Lightning on all copper |
| FCC | Part 15, Class A |
| Safety | CE, CE, LVD (Low Voltage Directive : EN62368-1: 2014+A11:2017 |
| Environmental | RoHS, WEEE |
| Humidity | 5 to 95%, RH |
| Temperature | Operating: 0° to 40° C |
| Storage | : -20° to 70°C |
| Dimensions | 1.73” x 17.4” x 8.3”, 44mm x 442mm x 221mm (HxWxL) |
| Weight | 8.4 lb (3.8 Kg) |
| Housing | Sheet Metal |
