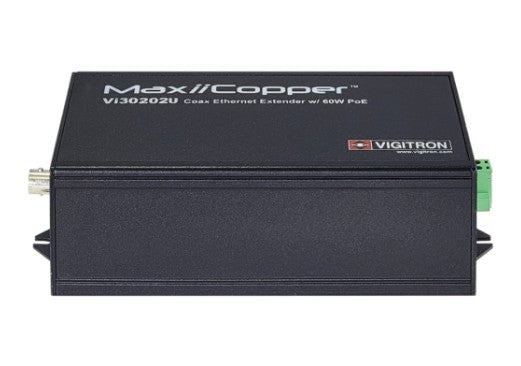

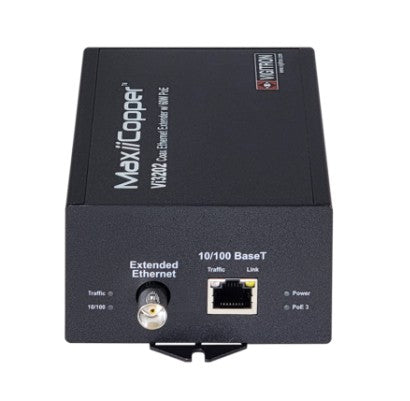

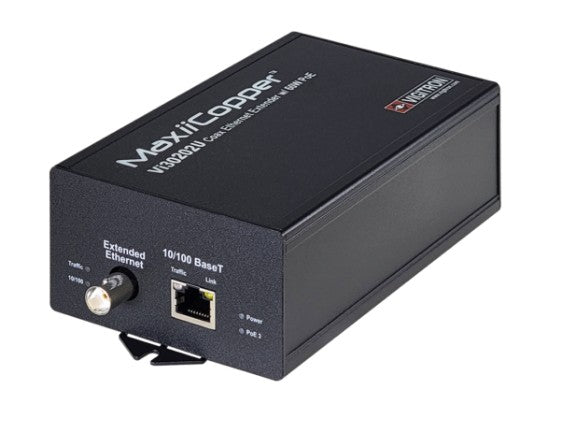

Vigitron VI30202U | Coax Ethernet Extender w/60W PoE & DC input
Description
Description
The Vigitron MaxiiCopper™ Vi30202U is a high-performance Ethernet extender designed to transition analog PTZ cameras to IP systems using existing coaxial cables. It transmits IP video up to 5,000 feet (1,515 meters), offering an efficient and cost-effective way to extend networks without re-cabling. Additionally, the extender uses the existing 24VDC or 24VAC power supply to deliver up to 60W of PoE compliant to IEEE 802.3bt. This makes it ideal for powering high-demand IP cameras, including advanced PTZ models. The Vi30202U features intelligent automatic power management that quickly detects and adjusts the power class of connected devices, whether single or dual PDs. Its compact design also fits easily into most camera housings, further reducing both installation complexity and costs.
Vigitron - VI30202U - Features
- Transmits Ethernet and PoE up to 5,000 feet (1,515 m) over Coax cables
- Uses 24-48VDC or 24VAC input power to provide IEEE 802.3bt up to 60W PoE power
- Ideal for replasing Analog PTZ cameras with IP Cameras and use the existing power supply
- Automatically senses PD power class and single or dual PD devices
- Compact size easily fits into most existing housings and camera mounts
- Hardened with a wide range of operating temperatures of -40°C to +75°C
- Symmetric Bandwidth(SBW™) provides consistent upload and download with Virtual Zero Packet Loss (VZPL™) over a total specified distance
- MegaPixel Certified (MPC™) High data rate, ideal for high bandwidth requirements of Mega-pixel cameras for Jumbo Frame transmission
- Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
- Fully transparent to Ethernet networks and higher layer protocols
- Complies to major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPS
Specifications
Specifications
Vigitron - VI30202U - Specifications
| Ethernet Interface | Standard 10/100BaseT |
|---|---|
| PoE Output Power | 60W @ 56 VDC** |
| Input Power | 24VDC, 24 VAC, 2.7 A |
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -40°C to +75°C per NEMA-TS2 testing, Storage: -40°C to +85°C |
| Dimensions | 5.62 x 2.4 x 1.9 in., 14.27 x 6.1 x 4.83 cm (HxWxL) |
| Weight | 1.03 lb, 466 g |
| Material | Extruded Aluminum |
| UNSPSC Code | 55101515 |
