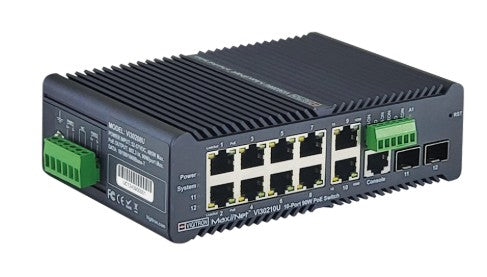

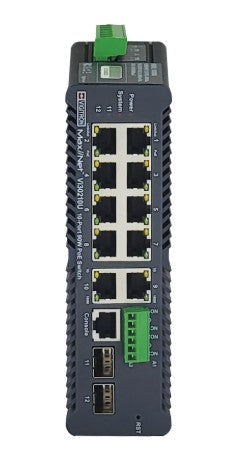

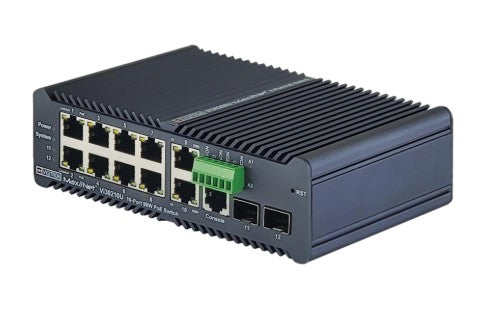

Vigitron VI30210U | Hardened Managed 12-Port, L2+, 1G Industrial 90W PoE Ring Switch
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Vigitron VI30210U | Hardened Managed 12-Port, L2+, 1G Industrial 90...
Description
Description
The Vigitron Vi30210U is a powerful Industrial PoE switch delivers reliable power and data in demanding network environments. It has 8 x 1G PoE copper ports, 2 x 1G independent and 2 2 x 1G/2.5G fiber uplink ports. The switch supports IEEE 802.3bt standards by providing up to 90W per port across eight ports with a total PoE budget of 490W. As a result, this makes it ideal for high-demand devices like PTZ cameras in various network setups. Its jumbo frame programming ensures smooth data transmission, especially for high-megapixel cameras. Moreover, with dual power inputs for backup, the Vi30210U guarantees uninterrupted operation even during power failures. It is built for harsh environments, operating in temperatures from -40°C to +75°C, making it suitable for outdoor and industrial use.
Vigitron - VI30210U - Features
- 8 x 1G PoE independent copper, 2 x copper and 2 x 1G/2.5G Fiber uplink combo ports
- 90W IEEE 802.3bt compliant PoE on 8 ports, 490W PoE budget
- Jumbo frame programing at all bandwidth settings
- Redundant 48-57VDC up to 500W back up power input
- IEEE 802.3bt class 0-8 PoE up to 90W per port
- PoE Port monitoring, auto recheck, and start up delay
- G.8032 V1/V2 Rapid Ring protocol compliant
- Built in 6KV port surge protection
- 30 Gbps switch fabric for Mega Pixel cameras handling
- Programmable port connection monitor with automatic link and PoE reconnection
- LLDP and ACL connection status identification
- Unique TimeZone reference for setting system synchronization
- NTP and Real Time Clock (RTC)
- Dual programmable Form C alarm outputs
- Programmable port temperature settings
Specifications
Specifications
Vigitron - VI30210U - Specifications
| Ethernet Interface | Standard: 8 x 10/100/1000BaseT, Uplink: 2x 100/1000Mbps Copper, 2 x 1G/2.5G Fiber SFP ports |
|---|---|
| Surge Protection | 6KV |
| Input Power | 48-57VDC up to 730W Maximum |
| PoE Budget | 730W |
| Power Consumption | 12.3W |
| Temperature | Operating: -40°C to +75°C, Storage: -40°C to +80°C |
| Humidity | 0 to 95%, non-condensing |
| Dimensions | 2x6.6x4.4 in., 5x16.8x11 cm (HxWxL) |
| Weight | 1.9 lb, 862 g |
| Mounting | Desktop, DIN Rail |
| Material | Aluminum |
