Vigitron VI30406U | Hardened PoE Managed 6-Port, 2.5G Industrial 802.3bt 90W PoE Switch
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description

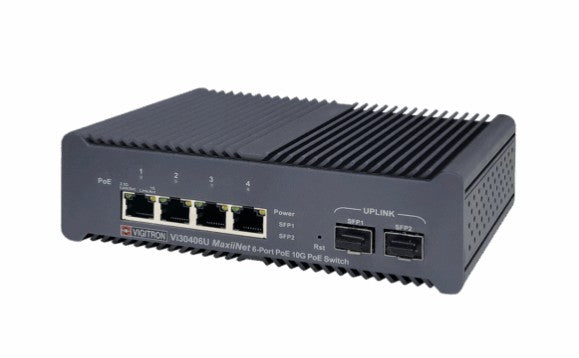

The Vigitron MPoE™ Vi30406U is a high-performance PoE switch engineered for robust power delivery and seamless network integration. It features four copper ports supporting IEEE 802.3af/at/bt (Class 0–8) PoE, delivering up to 90W per port with a total PoE power budget of 360W. In addition to standard PoE, the switch supports select non-standard PoE devices up to 72W, making it an ideal solution for powering a wide variety of PoE cameras and network devices across multiple manufacturers. It is especially well-suited for upgrading existing systems to support devices that require higher or newer PoE standards. The Vi30406U features Vigitron’s exclusive Managed PoE (MPoE™) technology, delivering advanced and comprehensive PoE management and messaging in a user-friendly format. This enables powerful programming capabilities without requiring in-depth network expertise, making integration simple and efficient.
Vigitron - VI30406U - Features
- 4 x 2.5G PoE copper, 2 x 1G/2.5/10G independent Fiber uplink ports
- Jumbo frame programing at all bandwidth settings
- Unique MPoETM PoE management
- 90W 802.3bt PoE compliant ports w/ 380W total input power
- Operating temperature range -40ºC to +70ºC per NEMA-TS 2 standards
- Tested for critical transportation and traffic applications
- Dual power input
- Dual independent fiber Uplink ports
- Port Monitoring with automatic reconnect and PoE application
- Dual Watchdog monitors for Power and Internal communications

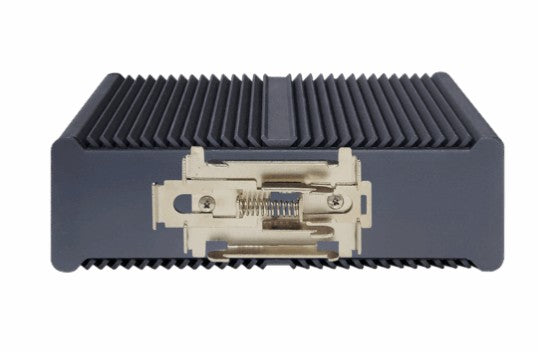

- Din Rail, wall and Desktop mounting
- Dual redundant power inputs
Specifications
Specifications
Vigitron - VI30406U - Specifications
| Power Consumption | 6W Standby |
|---|---|
| Humidity | 0 to 95%, non-condensing |
| Operating | -40°C to +70°C |
| Storage | -40°C to +85°C |
| Dimensions | 1.8x4.8x4.2 in., 4.6x12.2x10.6 cm (HxWxL) |
| Weight | 1.03 lb (470 g) |
| Housing | Aluminum, DIN Rail, Wallmount, Deskmount |
