Vigitron VI50000U | Single Port 60W PoE 1G Ethernet Fiber Media Con...
Description
Description

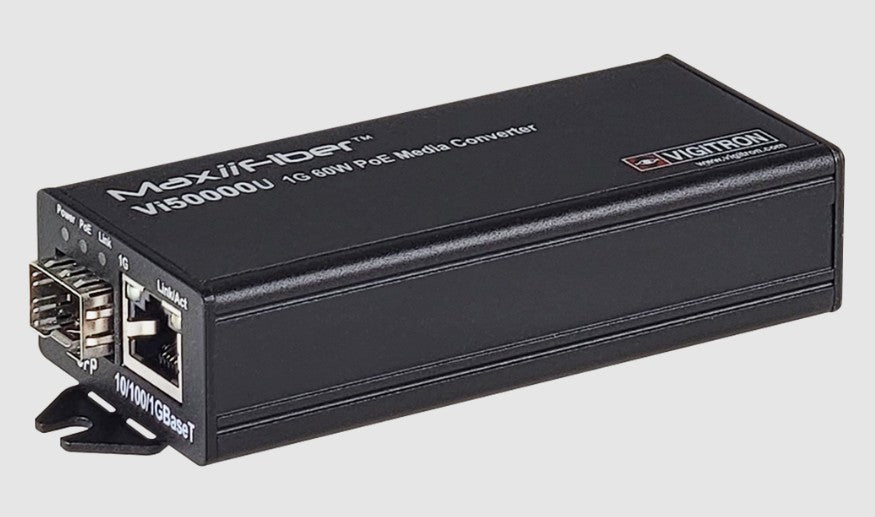

Vigitron’s Vi50000U is a fiber media converter that enables Ethernet signals to be transmitted over different types of fiber optic cables. UTP connections with fiber to meet long-distance transmission requirements and those where fiber is already installed. The use of SFP fiber modules results in compatibility with all major single and multimode fiber optic cables to achieve desired transmission distances depending on the type of cables and SFPs. The Vi50000U can be powered from a local 12VDC or 52-57VDC power supply. When the Vi50000U is connected to a 57VDC power supply it can provide up to 60W PoE to power PTZ domes with heaters and blowers, eliminating the need for high-cost local power supplies. Its auto bandwidth sensing provides an efficient way to connect cameras to network switches and NVRs. The Vi50000U is an ideal solution for converting existing analog fiber infrastructures to IP systems. It provides a unique, reliable, and cost-effective solution to combine a variety of transmission methods to meet any application requirement.
Vigitron - VI50000U - Features
- Enables transmitting 1000Mbps Ethernet over fiber cables
- Provides up to 60W PoE to power PTZ domes, heaters, and blowers
- Uses Small Format Pluggable (SFP) to interface to a variety of fiber cables
- Depending on the type of fiber cable and SFPs distances of up to 80Km can be reached
- Transmits Jumbo Frames up to 9600 bytes for handling the largest Megapixel cameras
- Complies with all network standards
- Operates at an extended temperature ranging from -30°C to +65°C
- Auto bandwidth control 100/1000Mbps
Specifications
Specifications
Vigitron - VI50000U - Specifications
| Ethernet | 100/1000Mbps for RJ45 |
|---|---|
| Distance | Based on cable and SFP |
| Fiber Connection | LC based on SFP 1000Mbps |
| Connectors | Ethernet: RJ-45 Fiber: SFP socket compliant to MSA |
| Status LED | Power: Green LED |
| PoE Output Power | IEEE 802.3af, at, bt up to 60W PoE |
| Power Supply | 12VDC @ 3W with no PoE output |
| Jumbo Frame | Up to 9,600 bytes |
| Humidity | 0% to 95%, non-condensing |
| Temperature | Operating: -30°C to +65°C |
| Dimensions | 0.97x1.75x3.93 in., 2.46x4.45x10 cm (HxWxL) |
| Weight | 0.235 lbs (107g) |
| Housing Material | Extruded Aluminum |
