Vigitron VI50101 | Single Port Mini PoE Powered 1G Fiber Media Conv...
Description
Description

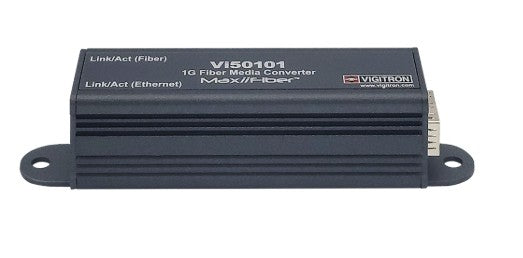

The Vigitron MaxiiFiber Vi50101 is a compact yet powerful mini fiber media converter. It seamlessly connects copper and fiber optic networks, ensuring reliable long-range connectivity. Designed for high-performance network applications, it transmits Ethernet data over fiber for distances up to 80 km. This PoE-powered fiber media converter simplifies installation. It is ideal for IP cameras, network devices, and security systems in remote locations and harsh environments. It also works well in areas with existing fiber infrastructure. The versatile mounting options include in-line, wall-mounted, and DIN Rail setups. All necessary adapters are included.
Vigitron - VI50101 - Features
- Supports 10/100/1G Base-T Ethernet over long-distance fiber cables with auto bandwidth control
- Compatible with SFP modules for various fiber types and distances
- Powered by PoE, ensuring a simple and efficient installation process
- Seamlessly integrates with existing PoE network switches
- Achieves transmission distances of up to 80 km, depending on the fiber cable and SFP type
- Transmits Jumbo Frames up to 9000 bytes, ideal for large Megapixel camera data
- Fully compliant with industry networking standards
- Reliable operation at extended temperatures from -10°C to +70°C

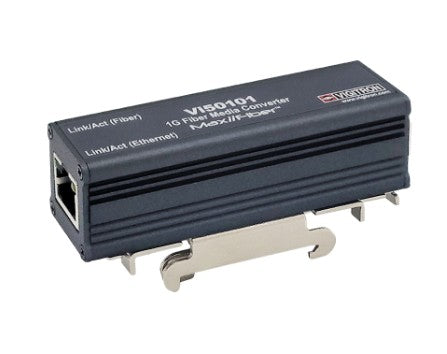

- Flexible mounting options: In-line, Wall-Mount, or DIN Rail (adapters included)
Specifications
Specifications
Vigitron - VI50101 - Specifications
| Ethernet Interface | Ethernet: 10/100/1000Base-T, Fiber: 1000Mbps |
|---|---|
| Power Source | 1.4W |
| Humidity | 0% to 95%, non-condensing |
| Temperature | Operating: -10°C to +70°C, Storage: -40°C to +85°C |
| Connectors | Ethernet: RJ-45, Fiber: SFP socket compliant to MSA standards |
| Dimensions | 1x1x3.3 in., 2.6x2.5x8.4 cm (HxWxL) |
| Weight | 0.152 lbs (70g) |
| Housing Material | Extruded Aluminum |
