Viking Electronics CTG-2A | Networked Clock Controlled Tone/Message...
Description
Description

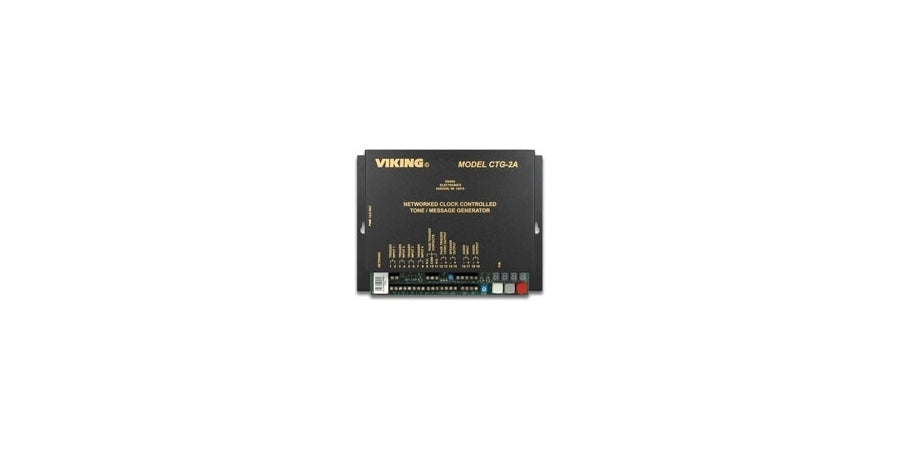

Vikings model CTG-2A is a networked clock controlled tone / message generator designed to provide accurately timed tones and / or messages over an existing paging system. This provides a cost effective way of signaling school period changes, factory shifts, breaks, lunch periods, etc. The CTG-2A has four programmable trigger inputs which are ideal for triggering emergency alert tones / messages to indicate fire evacuation, severe weather, lock down, all clear or can be used in store caster applications for œcustomer service required announcements, etc. The CTG-2A can also be used as a master clock to synchronize Viking CL Series wireless clocks, see DOD 466. The CTG-2A comes equipped with up to 6 minutes of CD quality WAV file audio storage for up to 14 different tones / messages. The unit is factory loaded with common school, business, and factory tones but can be programmed with your custom tones / messages or updated from the list of WAV files from t
Viking Electronics - CTG-2A - Features
- Up to 14 schedules and up to 1,000 events
- 6 minutes of CD quality WAV file record time
- Up to 14 different tones or messages
- 4 programmable trigger inputs for emergency tones, etc.
- Automatic Daylight Saving Time and leap year correction
- Programmable NTP Clock synchronization
- PC programming software included
- RS485 clock SYNC terminals for remote Master Clock control of Viking CL Series RF synchronized clocks
- Non-volatile memory with 4 day clock back up
- Factory loaded with school / factory tones and evacuation signals (ANSI S3.41), etc.
- Remote program via TCP / IP network
- Page trigger outputs (12VDC and DPDT relay)
- Programmable auxiliary relay contacts (DPDT)
- 24 hour digital clock displays hours and minutes
- One mono line level pre-amp input and audio output
- Built-in 1 Watt mono audio amplifier
- One isolated audio output for PABX / dial access paging
- Master volume control
- Programmable volume control per tone / message
- Time base selection: Network, 50 / 60Hz or internal
- Programmable message repeat count for trigger inputs
Specifications
Specifications
Viking Electronics - CTG-2A - Product Categories
- Audio, Visual and Telephony
- Audio and Visual
- Audio Equipment
- Other Audio Equipment
Viking Electronics - CTG-2A - Applications
- Signal the beginning and end of class periods, breaks and lunch periods for schools
- Signal the beginning and end of shifts, breaks and lunch periods for factories / businesses
- Provide trigger controlled emergency alert messages for fire, flood, severe weather, lock down, etc.
- Provide messages at specific times for store sales, promotions, closing times, airport loading zones, etc.
- Provide auxiliary contact activation at specific times for specific durations for controlling lights, cameras, unlocking doors / gates, etc.
- The CTG-2A can also be used as a Master Clock to synchronize Viking CL Series wireless clocks (DOD 466)
Viking Electronics - CTG-2A - Specifications
| Manufacturer Name | Viking Electronics |
|---|---|
| Manufacturer Part Number | CTG-2A |
| Item Description | Networked Clock Controlled Tone/Message Generator, Polystyrene,Black, 32 to 90 F |
| Amperage Rating | 1.25 A |
| Color | Black |
| Compatibility | Viking CL Series (DOD 466) Wireless Clocks |
| Dimensions | WxHxD: 8.25 x 6.25 x 1.75 in. |
| Impedance | 750 ? |
| Includes | PC Programming Software |
| Material | Polystyrene |
| Product Type | Networked Clock Controlled Tone/Message Generator |
| Special Feature | 1.25 A, For Viking CL Series (DOD 466) Wireless Clocks, Impedance = 750 ohm, PC Programming Software Included |
| Temperature Rating | 32 to 90 F |
| Voltage Rating | 120 VAC, 13.8 VAC |
| Voltage | 120/13.8 VAC |
